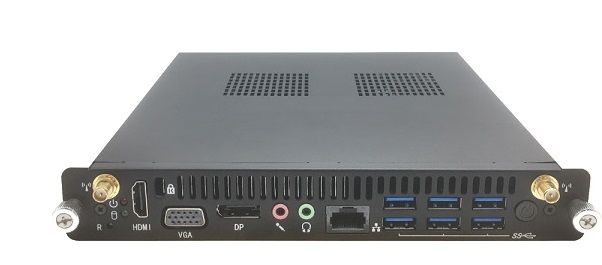

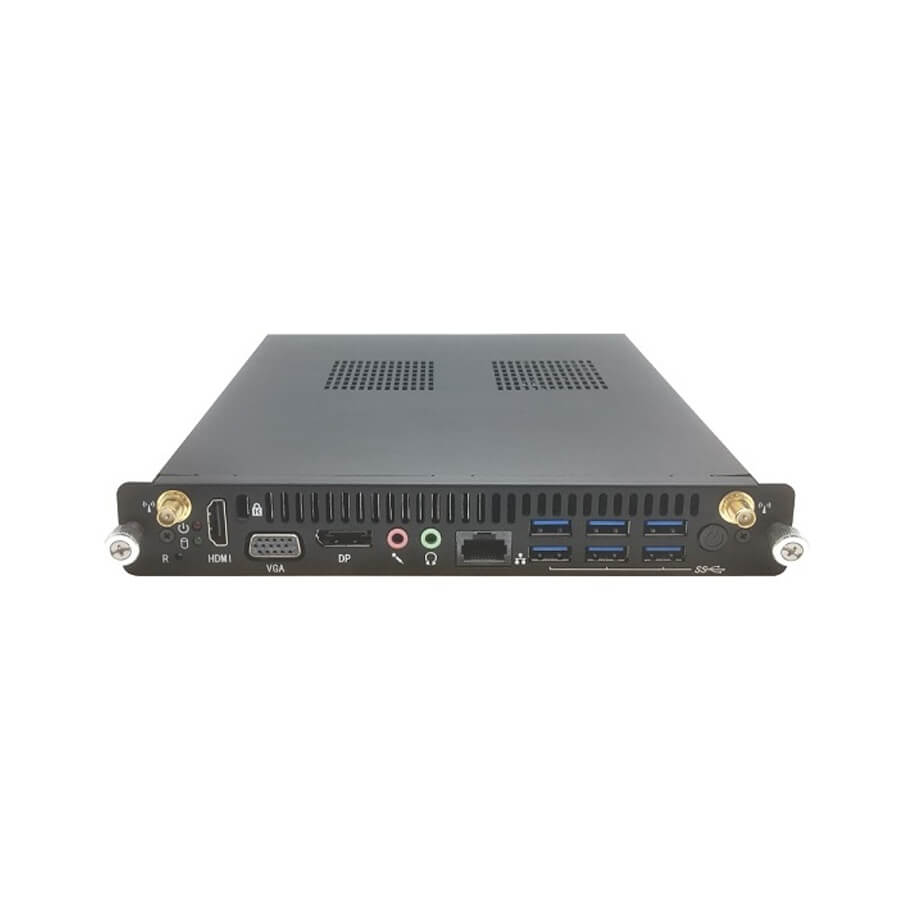

OPS Modular HIKVISION DS-D5AS5/8S1L
- OPS computer adopts OPS (Open Pluggable Specification) standard and is equipped with Intel processor. It provides excellent image processing effect while processing tasks in high speed. Due to its features and performance, OPS computer is mainly applied in the electronic whiteboard and digital signage of the education industry, healthcare industry, supermarket, etc.
Main Features
- Sixth-generation Intel® CoreTM i5.
- Intel Integrated Graphics, support H.265 and 4K resolution.
- Various interfaces provided: six USB 3.0 interfaces, one HDMI interface, one DP interface.
- MSATA interface (quick startup).
- Standard Intel OPS interface.
Specifications
| CPU | |
| Processor | Intel® Core™ i5 7400 |
| Dominant frequency | 3.0GHz |
| Scocket Platform | Intel® socket 1151: Skylake |
| Chipset | Intel H110 Express |
| Motherboard | |
| Memory | 8 GB |
| SSD | 128GB |
| Audio Card | High Definition Audio Stereo |
| Network | Integrated 10/100/1000M Adaption |
| Graphics Card | Intel Integrated Graphics Card |
| WIFI | IEEE 802.11 ac |
| Bluetooth | Bluetooth 4.0 |
| Interface | |
| Video output | 1 x HDMI interface. 1 x DP interface |
| Network interface | 1 x Gigabit Ethernet interface, RJ45 |
| Antenna | 2 |
| USB | 6 × USB 3.0 |
| General | |
| Power supply | 12 VDC to 19 VDC. ≥ 10 A |
| Power consumption | Max. 95W, 0.5W(Standby) |
| Weight | 1.24kg |
| Working temperature | 0 °C to +40 °C |
| Working humidity | 10% to 95% |
| Dimensions (W × D × H) | 180 x 194 x 30 mm |
