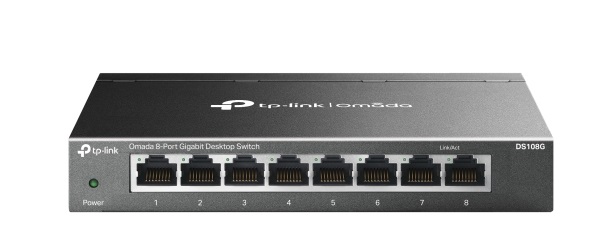

Omada 8-Port Gigabit Unmanaged Desktop Switch TP-LINK DS108G
- 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.
- Steel housing, desktop or wall-mounting design.
- Support 802.1p/DSCP QoS and IGMP Snooping function.
- Plug and play, no configuration needed.
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
Thông số kỹ thuật
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p |
| Max Power Consumption | 3.924 W (220 V /50 Hz |
| Max Heat Dissipation | 13.34 BTU/h |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mbit |
| Jumbo Frame | 16 KB |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Green Ethernet technology • 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Loop Prevention |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6 A) |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0 in. (158 x 100.7 x 25.4 mm) |
| Certification | FCC, CE, RoHS |
| Package Contents | Switch, Power Adapter, Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
