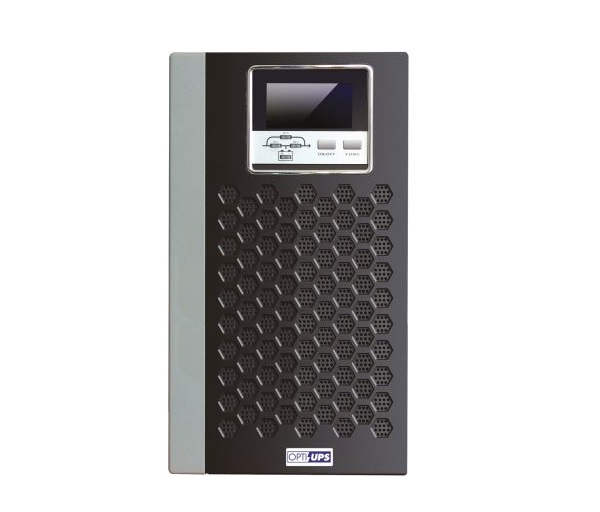

Nguồn lưu điện UPS OPTI DS3000I
- True On-Line Double Conversion
- Zero transfer time
- Wide range of input frequency (40~70Hz) and Output frequency 50/60Hz setting
- High-performance DSP processor, precision and fast data processing with high reliability
- Cold start (DC power on)
- Auto restart functions
- Extended battery pack for long service time
- RS232 and USB port
- SNMP card slot available
Specifications
| Model | DS3000I |
| Topology | True On-Line Double Conversion |
| On-battery Output Waveform | Pure Sine Wave |
| Pure Sine Wave | 230V: 3000VA / 2700W |
| 120V: 2000VA / 1800W | |
| Input | |
| Nominal Voltage | 220/ 230/ 240 VAC; 110/ 115/ 120/127 VAC |
| Nominal Frequency | 50/ 60Hz |
| Nominal Voltage Range | 176-288 VAC (220/230/240 VAC); 96-155 VAC (110/115/120/127 VAC) |
| Output | |
| Nominal voltage | 220/ 230/ 240 VAC; 110/ 115/ 120/ 127 VAC |
| Voltage Regulation (Battery mode) | ± 1% |
| Transfer Time (Typical) | 0ms |
| Start on Battery | Yes |
| Auto Restart | Yes |
| Number of Outlets (Battery backup) | 2x0V: 4 (IEC 10A)+ termimal |
| 1x0V: 8 (NEMA 5-15) | |
| Protection | |
| Data Line Surge Protection | RJ11/RJ45 |
| Overload Capability | 105%~130%: shutdown after 10s, 150%: shutdown after 5s |
| Over Current Protection | Circuit Breaker |
| Discharge Protection | Keylock |
| Battery | |
| Configuration | 2x0V: 96V (12V7Ah x 8) |
| 1x0V: 72V (12V7Ah x 6) | |
| Backup Time (80% Load) | 6mins |
| Recharge Time to 90% (Typical) | |
| Extended Battery Pack (Optional) | 2x0V: BP 3KIL 96V(12V7Ah x 16) |
| 1x0V: BP 2KIL 72V(12V7Ah x 6) | |
| Indicator & Alarm | |
| Display | LED + LCD (Rectifier/ Bypass/ Inverter/ Battery) |
| Alarm | Battery mode / UPS faults / Overload |
| Interface | |
| Communication port | RS232 and USB |
| SNMP Manageable | Yes |
| Environmental | |
| Operation Temperature | 0~40ºC / 32~104ºF |
| Storage Temperature | 0~70ºC / -32~158ºF |
| Relative Humidity | 0~95% Non condensing |
| Mechanical | |
| Dimension (W×D×H) | 190×426×336 mm |
| Weight | 25.6kg |
- Bảo hành: 3 năm.
