Nguồn lưu điện UPS HYUNDAI HD-600F

Trang Chủ >> Nguồn lưu điện-Ắc quy >> Nguồn lưu điện UPS Hyundai >> Nguồn lưu điện UPS HYUNDAI HD-600F
Mã số:28044776

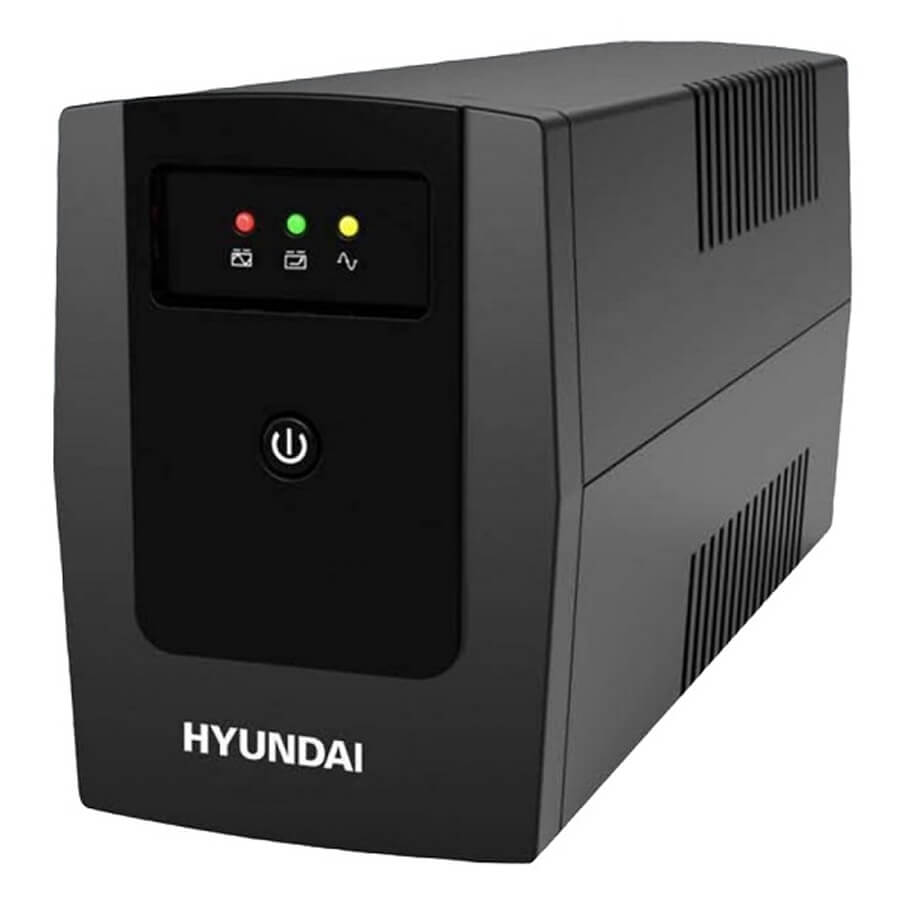

Nguồn lưu điện UPS HYUNDAI HD-600F

Nguồn lưu điện UPS HYUNDAI HD-600F

- LED display

- Microprocessor-based digital control

- Boost and buck AVR for voltage stabilization

- Auto sensing qrequency

- Wide input voltage range

- Power-on self test

- Cold start

- Auto restart when mains power is restored

- Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage reducing transfer time and peak surge

- Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time

- Short circuit, battery overcharge/overdischarge, overload, surge protections

- Automatic charging in OFF mode

- Unattended safety shutdown: system alarm and auto Power-On/ Off by RS232 or USB interface communicating with PC

Specifications

Model HD-600F
Capacity 600VA/360W
Technology Line interactive with AVR for voltage stabilization
Input
Voltage 220V / 230V / 240VAC (145~290VAC)
Frequency 50Hz/60Hz ± 10% (46-54Hz/Auto-sensing)
Output
Voltage 220V / 230V / 240VAC ± 10%
Frequency 50Hz/60Hz ± 1% (Auto-sensing)
Outlet Sockets Universal x2
Waveform Mains mode: Pure sine wave; Battery mode: Simulated sine wave
Power factor 0.6 (600VA/360W)
Battery
Type Sealed lead acid maintenance free battery, 12V4.5Ah
Recharging time 6~8 hours
Backup time at 50% load 8~12 mins
Transfer time 2~6ms
Indicators
AC mode Green LED lighting
Battery mode Yellow LED lighting
Low battery at Battery mode Yellow LED Flashing every second
Fault Red LED lighting
Battery fault at AC mode Red LED flashing 3 times every 2 seconds
Battery week at AC mode Red LED flashing every 2 seconds for 30 seconds
Overload Red LED flashing every twice every seconds
Alarm
Baterry mode Sounding every 4 seconds
Low battery Sounding every seconds
Fault Continuously sounding
Others
Dimensions (WxDxH) 100 x 305 x 145 mm
Weight 4.2kg
Noise ≤45dB (1m)
Operating Temperature 0~40°C (20~90% RH non-condensing)
Protections Short-circuit, overcharge, overload, surge, network line shock protection
Auto-restart/Auto-charge Yes

- Bảo hành: 24 tháng.

Giá: 912.000 VND (Đã bao gồm VAT)
