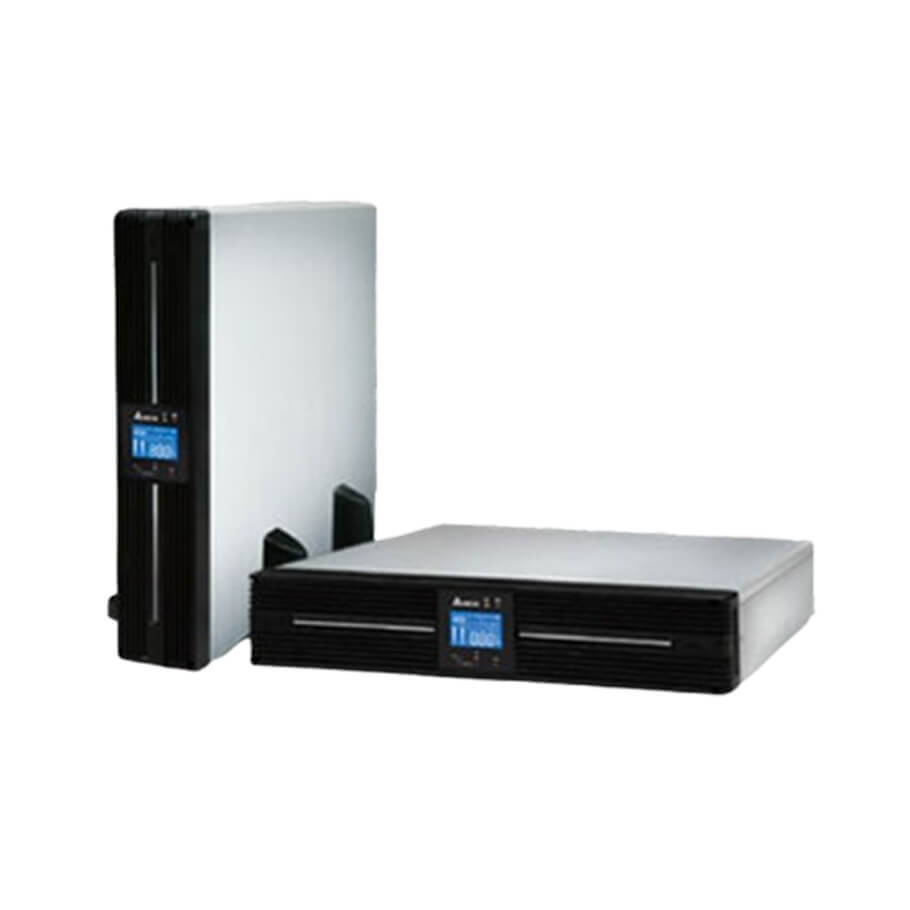

Nguồn lưu điện UPS DELTA Amplon R-1K (UPS102R2002N0B6)
Part Number: UPS102R2002N0B6
- Power Rating: 1kVA/0.9kW.
- Nominal Voltage: 200/208/220/230/240 Vac.
- Voltage Range: 175 ~ 280 Vac (full load); 80 ~ 175 Vac (50% ~ 100% load).
- Power Factor: > 0.99 (full load).
- Power Factor: 0.9.
- Voltage: 200/208/220/230/240 Vac.
- Overload Capability: < 105%: Continuous; 105 ~ 125%: 1 minute; 125 ~ 150%: 30 seconds.
- Dimensions (Wx Dx H): 440 x 335 x 88 mm.
- Weight: 5.3kg.
*) Sản phẩm không kèm pin.
Đặc tính kỹ thuật
| Model | R-1K |
| Power Rating | 1kVA/0.9kW |
| Input | Nominal Voltage: 200*/208*/220/230/240 Vac Voltage Range: 175 ~ 280 Vac (full load) ; 80 ~ 175 Vac (50% ~ 100% load) Frequency: 50/60 Hz ± 10 Hz Power Factor: > 0.99 (full load) Current Harmonic Distortion: < 3% |
| Output | Power Factor: 0.9 Voltage: 200*/208*/220/230/240 Vac Voltage Regulation: ± 1% (linear load) Frequency: 50/60 Hz ± 0.05 Hz Voltage Harmonic Distortion: < 3% (linear load) Overload Capability: < 105%: Continuous; 105 ~ 125%: 1 minute; 125 ~ 150%: 30 seconds Receptacle: IEC C13 x 4 |
| Efficiency | AC-AC: 91% ECO Mode: 95% |
| Battery | Battery Voltage: 24 Vdc Charge Current: 4A (up to 8A with optional inbuilt charger) |
| Audible Noise | < 40dB |
| Display | LCD display and LED indicators |
| Communication Interfaces | Standard: Mini Slot x 1, RS-232 Port x 1, USB Port x 1 |
| Conformance | Safety: CE |
| Physical | Dimensions (Wx Dx H): 440 x 335 x 88 mm Weight: 5.3 kg |
| Environment | Operating Temperature: 0 ~ 50°C Relative Humidity: 5 ~ 95% (non-condensing) |
- Bảo hành: 3 năm.
