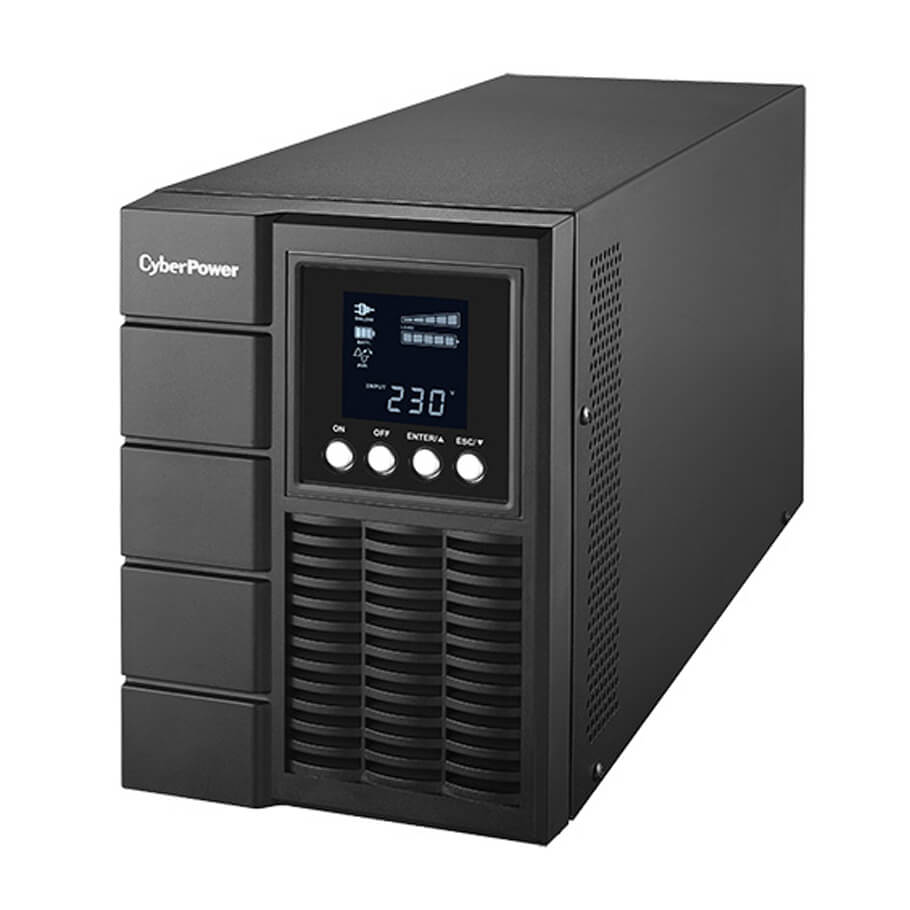

Nguồn lưu điện UPS CyberPower
OLS1500E
–
Công suất bộ lưu
điện: 1500VA/ 1350W
–
Công nghệ: Online
(Double Conversion)
–
Hệ số công suất:
0.8
–
Điện áp ngõ vào:
190-280VAC
–
Tần số ngõ vào:
40-70 Hz
–
Điện áp ngõ ra: 208,
220, 230, 240VAC (Configurable)
–
Tần số ngõ ra:
50Hz/ 60Hz ± 0.5%
–
Dạng sóng ngõ ra:
Sóng sin chuẩn
–
Ắc quy: 12V/ 9AH
–
Thời gian sạc: 5
giờ
–
Chức năng thay thế
pin nóng
–
Màn hình hiện
thị LCD và LED
–
Bảo vệ chống sét
lan truyền: RJ11/RJ45 (One In/ One Out)
–
EPO (Emergency
power off): Ngắt nguồn ngõ ra khẩn cấp
–
Cổng kết nối:
RS232, USB
–
SNMP/ HTTP Remote
Management Capability (Optional)
–
Phần mềm:
PowerPanel®Business Edition
–
Kiểu dáng: Tower
Đặc tính kỹ thuật
|
Model |
OLS1500E |
|
Capacity (VA/W) |
1500VA /
1350W |
|
Typology |
Online
(Double Conversion) |
|
Energy-Saving Technology |
Yes, ECO
Mode Efficiency > 95% |
|
Input |
|
|
Voltage
Range |
120~139VAC for 0~25% Load |
|
140~159VAC for 0~50% Load |
|
|
160~179VAC for 0~75% Load |
|
|
180~280VAC for 0~100% Load |
|
|
Input
Type |
IEC C14 |
|
Frequency Range |
40~70Hz |
|
Output |
|
|
UPS
Outlets (Numbers) |
(4) IEC
C13 |
|
On
Battery Output Voltage |
Pure
Sine Wave at 208, 220, 230, 240 Vac (Configurable) |
|
On
Battery Output Voltage Distortion (@Nominal Battery Voltage) |
≤
3% (Linear Load), ≤
5% (Non-Linear Load) |
|
On
Battery Output Frequency |
50 Hz /
60 Hz (Auto-Sensing or Configurable) ± 0.5% |
|
Transfer
Time (Typical) |
0ms |
|
Overload
Protection |
AC Mode:
Warning only @ 110% > Load >105%, |
|
Transfer
to bypass after 60sec @ 120%>Load>110%, |
|
|
Transfer
to bypass immediately@ Load>120% Battery Mode: Warning only @
110%>Load>105%, |
|
|
Shutdown
after 10sec @ 120%>Load>110%, |
|
|
Shutdown
immediately @ Load>120% |
|
|
Bypass
Mode: Warning only @ 130%>Load>105%, |
|
|
Shutdown
immediately @ Load>130% |
|
|
Surge
Protection and Filtering |
|
|
Surge
Protection |
Yes |
|
DSL/Phone/Fax/Modem protection |
RJ11/RJ45 (One In/One Out) |
|
Short
Circuit Protection |
UPS
Output Cut off Immediately or Circuit Breaker Protection |
|
Battery |
|
|
Sealed
Maintenance Free Lead Acid Battery |
(3) 12V
/ 9AH |
|
Configurable External Battery Pack (Max.) |
3 |
|
Typical
Recharge Time |
5 |
|
Runtimes |
|
|
Half
load-Full load (mins) |
14/5 |
|
Status
Indication |
|
|
Indicators |
Power
On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault,
Replace Battery |
|
Audible
Alarms |
Battery
Mode, Battery Low, Overload, UPS Fault, Replace Battery |
|
Communication |
|
|
Power
Management Software |
PowerPanel® Business Edition |
|
Management |
|
|
Self-Test |
Yes |
|
Auto-Charge/Auto-Restart |
Yes |
|
Auto-Overload Recovery |
Yes |
|
Cold
Start s (DC Start) |
Yes |
|
Connectivity Ports |
(1)
Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
|
SNMP/HTTP Capable |
Optional |
|
Dimensions |
225 x
151 x 394mm |
|
Weight |
15.3 kg |
–
Bảo hành: 2 năm
