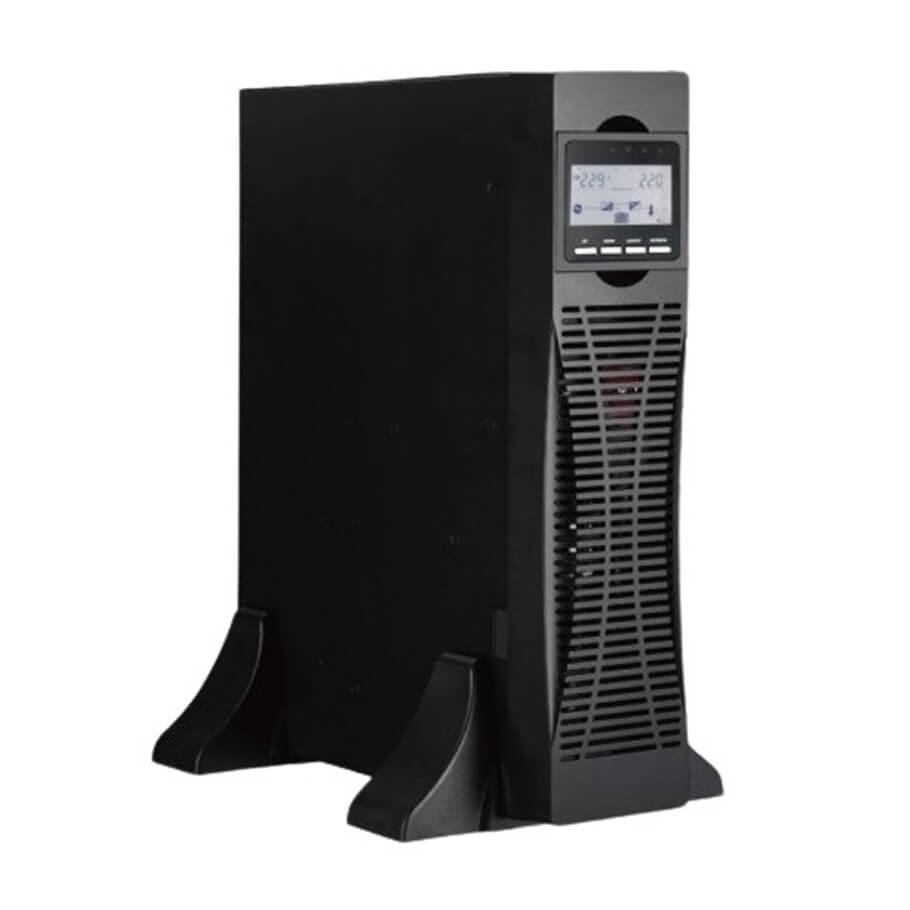

Nguồn lưu điện UPS ARES AR-MP6KRT (Bộ)
- Công suất: 6KVA/6kW
- Điện áp nguồn vào: 110 ~ 286Vac (đầy tải)
- Điện áp nguồn ra: 220V
- Tần số: 50/60Hz (tự động nhận)
- Dạng sóng: Sóng sine chuẩn
- Cổng kết nối: USB/RS232
- Phần mềm điều khiển và giám sát hệ thống (miễn phí)
- Kết nối với tải: Terminal block
*) Trọn bộ bao gồm: UPS AR-MP6KRT + Tủ ắc quy gồm 20 ắc quy axit chì 12V9AH.
Thông số kỹ thuật
| Model | AR-MP6KRT |
| Capacity | 6KVA/6KW |
| INPUT | |
| Nominal votage | 208/220/230/240Vac |
| Input voltage range | 110-286Vac |
| Frequency range | 40-70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| Bypass voltage range | 240V: +15% (Optional+10%) Min.voltage:-45% (Optional-20%,-30%) |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 0.9 |
| Voltage regulation | ±1% |
| Output frequency | Line Mode: ±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Bat. Mode: (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THDv) | ≤2% Linear load ≤5% Non linear load |
| Transfer time | AC mode to Bat.Mode: 0ms Inverter to Bypass: 0ms (Typical) |
| Output wave form | Pure Sinewave |
| Overload | Line Mode: Load≤110% last 60 min; ≤125% last 10 min; ≤150% last 1 min; >150% turn to bypass mode immediately Bypass Mode: 40A(Breaker) |
| Efficiency | 94% |
| BATTERY | |
| Battery voltage | ±96/±108/±120Vdc (Adjustable) |
| Capacity (standard unit) | 9Ah/12V (7Ah/12V optional) |
| Typical recharging time | 6-8 hours (to 90% of full capacity) |
| INDICATORS | |
| LED display | Line mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
| LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Battery low | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| PHYSICAL | |
| Dimension (W x D×H) | 440 x 625 x 86.5 mm |
| Weight | 16 kg |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | |
- Bảo hành: 24 tháng.
