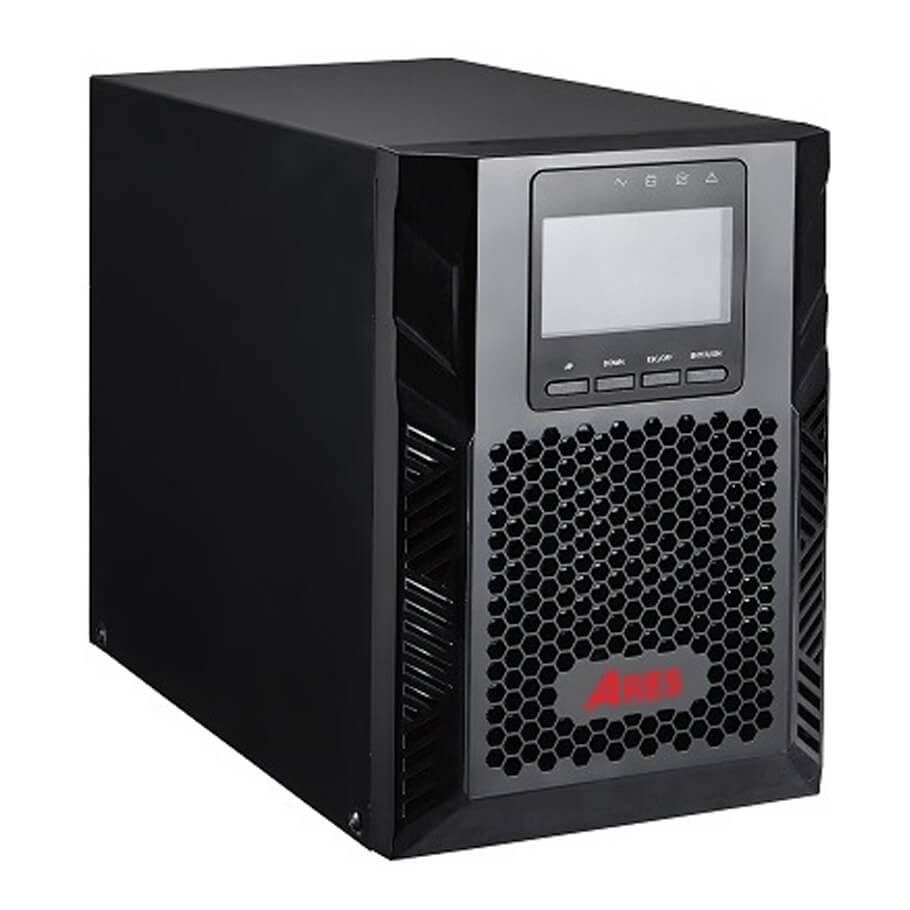

Nguồn lưu điện UPS ARES AR-MP6KH
- Công suất: 6KVA/6KW.
- Sóng sine chuẩn.
- Công nghệ: Online.
- Thời gian chuyển mạch: 0ms.
- Điện áp ắc quy: ±96/108/120V (Optional).
- Kích thước (W x D×H): 191 x 460 x 337 mm.
- Trọng lượng: 12kg.
*) Bộ lưu điện chưa bao gồm ắc quy.
Thông số kỹ thuật
| Capacity | 6KVA/6KW |
| INPUT | |
| Nominal votage | 208/220/230/240Vac |
| Input voltage range | 110-286Vac |
| Frequency range | 40-70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| Bypass voltage range | Max.voltage: 230-264Vac |
| Min.voltage: 176-220Vac | |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 0.9 |
| Voltage regulation | ±1% |
| Output frequency | Line Mode: ±10% of the rated frequency |
| Bat. Mode: (50/60±0.1%)Hz | |
| Crest factor | 3:01 |
| Harmonic distortion (THDv) | ≤2% Linear load |
| ≤5% Non linear load | |
| Transfer time | AC mode to Bat.Mode: 0ms |
| Inverter to Bypass: 5ms (Typical) | |
| Output wave form | Pure Sinewave |
| Overload | Line Mode: Load≤105% long time running; ≤125% last 10 min; ≤130% last 30s; >130% turn to bypass mode immediately |
| Bypass Mode: 40A(Breaker) | |
| Efficiency | 93.50% |
| BATTERY | |
| Battery voltage | ±96/108/120V (Optional) |
| Capacity (standard unit) | 9Ah/12V |
| Typical recharging time | 6-8 hours (to 90% of full capacity) |
| Charging current | 1A (standard unit); Long run unit Max.curent 8A (charging current can be set according to battery capacity) |
| INDICATORS | |
| LED display | Line mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
| LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Battery low | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| PHYSICAL | |
| Dimension W x D×H | 191 x 460 x 337 mm |
| Weight | 12 kg |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | |
| STANDARDS | |
| Safety | IEC/EN62040-1,IEC/EN62477-1 |
| EMC | IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 |
- Bảo hành: 24 tháng.
