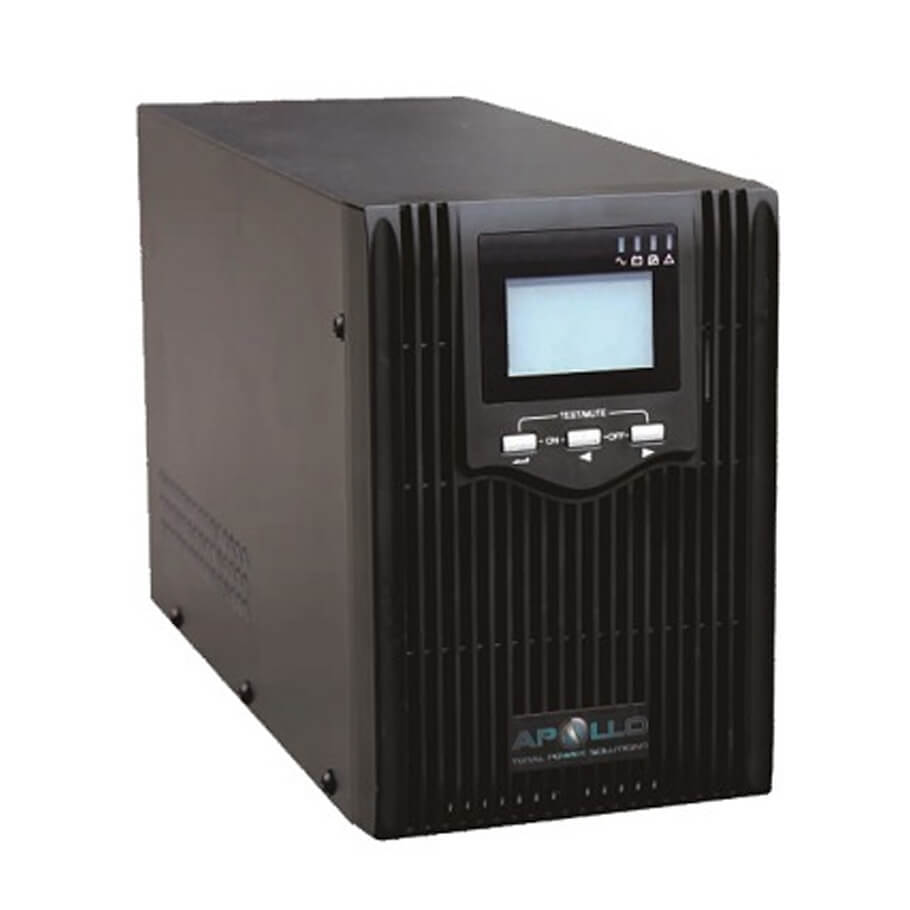

Nguồn lưu điện 3000VA UPS APOLLO AP630
- Công suất: 3000VA/2400W.
- Hỗ trợ công nghệ: Line-interactive.
- Màn hình hiển thị LCD.
- Hệ số công suất: 0.8.
- Đầu ra sóng Sin chuẩn.
- Điện áp vào: 100V/110V/120Vac ±26% or 220V/230V/240Vac ±26% (-35% optional).
- Điện áp ra: 100V/110V/120Vac ±5% or 220V/230V/240Vac ±5%.
- Tần số: 50/60 ± 10% (Auto sensing).
- Ứng dụng: Các thiết bị máy tính, model, thiết bị an ninh, giám sát camera... và nhiều ứng dụng nguồn quan trọng khác...
Đặc tính kỹ thuật
| Model | AP630 |
| Capacity | 3000VA/2400W |
| Input | |
| AC voltage | 100V/110V/120Vac ±26% or 220V/230V240Vac ±26% (-35% optional) |
| Frequency | 50Hz/60Hz ±10% (auto-sense) |
| Output | |
| Voltage during battery operation | 100V/110V/120Vac ±5% or 220V/230V/240Vac ±5% |
| Voltage during mains operation | 100V/110V/120Vac ±9% or 220V/230V240Vac ±9% |
| Frequency | 50/60Hz±0.3Hz (auto-sense & settable) |
| Waveform | Pure sine wave |
| Harmonic distortion | ≤5% (linear load) |
| Transfer time | ≤ 8ms |
| ECO mode | Settable (<3% load) to enter in 80s |
| No-load shutdown | Settable (<3% load) shutdown in 80s |
| Efficiency | |
| Mains mode | Max. 98% |
| Battery mode | Max. 85% (linear load) |
| Batteries | |
| Standard model | DC voltage: 48V |
| Number & type: 4 x 12V9Ah | |
| Charge current: Standard model: 1A (default), 0-5A (adjustable by back-end setting) | |
| Recharge time | 8 h |
| End of discharge voltage | Single battery 10.2Vdc (default), 9.6-11.5Vdc (adjustable) |
| Alarm | |
| Battery mode | Beep every 5s, be silent in 60s |
| Low battery | Keep beeping for 0.16s at interval of 0.16s (quick beep) |
| Overload | Keep beeping for 2s at interval of 0.5s (long beep) |
| Communications | |
| USB+RJ45 | Supports Windows 98/2000/2003/XP/Vista/2008/7/8/10 |
| SNMP (option) | Power management from SNMP manager and web browser (standard with slot) |
| Others | |
| Protections | Overload- short circuit- battery overcharge- overdischarge |
| Humidity | 10~90% RH @ 0~40℃ (non-condensing) |
| Noise level | ≤5dB (1m) |
| Tower | Dimension (WxDxH): 190 x 467 x 335.5 mm |
| Packing Dimension (WxDxH): 320 x 592 x 462 mm | |
| Net weight: 28.1 kg | |
| Gross weight: 30.2 kg | |
| Rack mount | Dimension (WxDxH): 440 x 410 x 132 mm |
| Packing Dimension (WxDxH): 505 x 611 x 235 mm | |
| Net weight: 26.7 kg | |
| Gross weight: 30.5 kg | |
- Bảo hành: 24 tháng.
