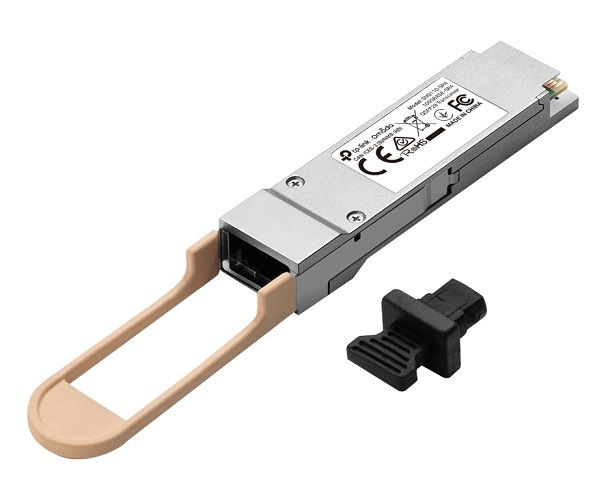

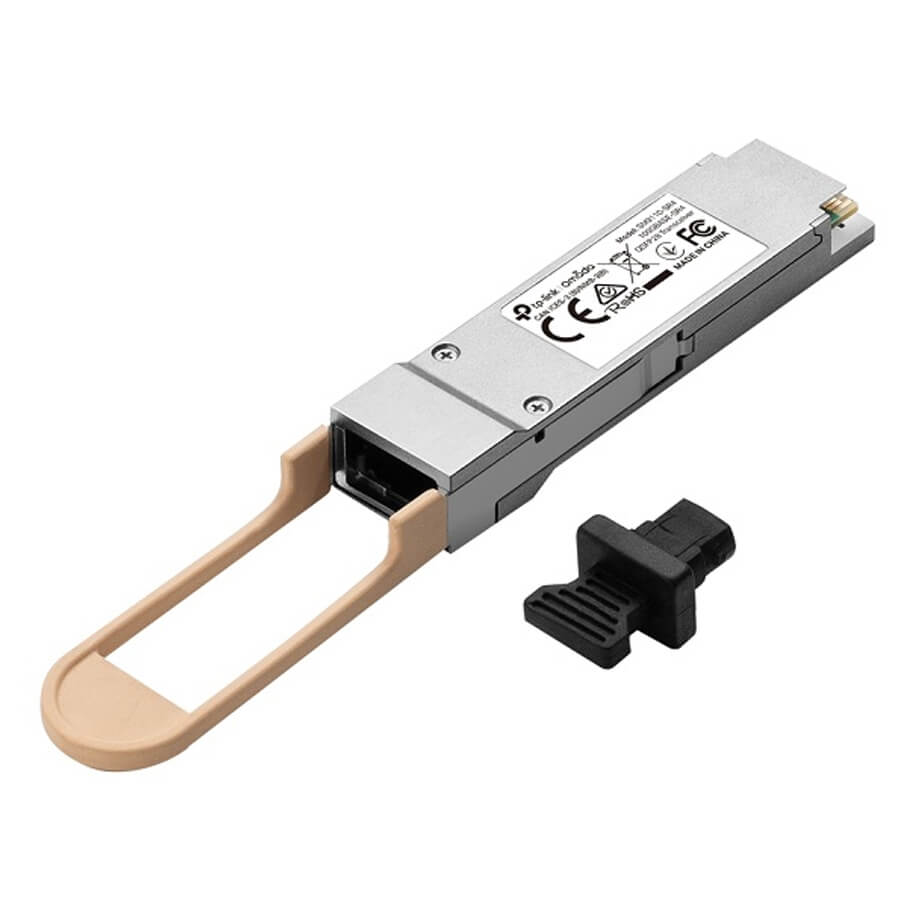

Omada 100GBASE-SR4 QSFP28 Transceiver TP-LINK TL-SM9110-SR4
- Thiết bị thu phát quang QSFP28 Multi-mode 100GBASE-SR4.
- Hỗ trợ giám sát chẩn đoán kỹ thuật số (DDM).
- Khoảng cách truyền tối đa lên đến 100 mét.
- Có thể cắm nóng (Hot-Pluggable) với tính linh hoạt tối đa.
- Dải nhiệt độ hoạt động rộng.
- Tương thích với chuẩn 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28).
Thông số kỹ thuật
| General Specifications | |
| Form Factor | QSFP28 |
| Support Data Rate | Dual Rate 103.125 Gbps and 41.2 Gbps |
| Wave Length | 850 nm |
| Max. Cable Length | 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps) |
| Connector | MTP/MPO-12 |
| QSFP28 MSA | Yes |
| Media | MMF (Multimode Fiber) |
| Core Size | 50/125 µm |
| Transmitter Type | VCSEL 850 nm |
| Receiver Type | PIN |
| Transmitter Power | -8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 Gbps |
| Receiver Sensitivity | |
| Receiver Overload | >2.4 dBm @103.125 Gbps >2.4 dBm @41.2 Gbps |
| Extinction Ratio | >2 dB @103.125 Gbps >3 dB @41.2 Gbps |
| Power Supply | 3.3 V |
| Power Consumption | Max 1.8 W at 100 Gbps Max 1.54 W at 40 Gbps |
| Optical Budget | >1.9 dBm @103.125 Gbps >1.9 dBm @41.2 Gbps |
| CDR (Clock and Data Recovery) | Built-in CDR |
| DDM | Yes |
| Standards and Protocols | • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, • SFF-8665, SFF-8636, SFF-8436, • CPRI, eCPRI • TCP/IP |
| Packaging Technology | COB Packaging |
| Hot Swappable | Yes |
| Regulatory Compliance | CE, FCC, RoHS |
| Environmental & Physical Specifications | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0 to 85% RH Non-condensing |
| Storage Humidity | 0 to 85% RH Non-condensing |
- Bảo hành: 60 tháng.
