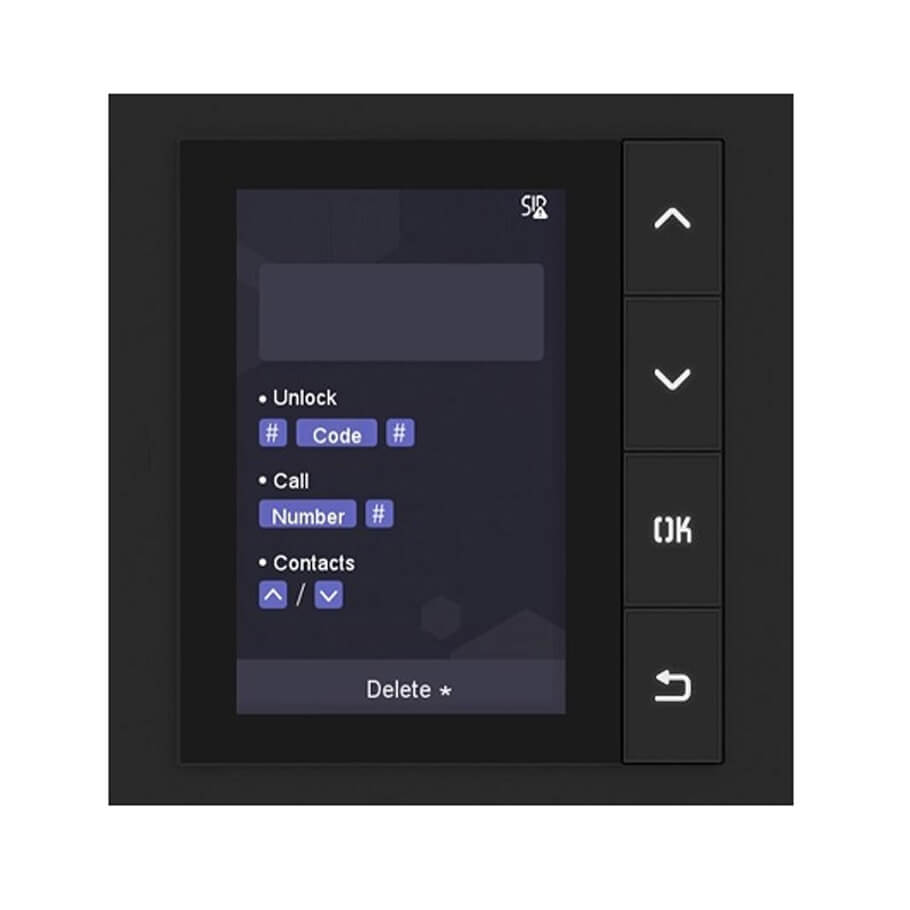

Module hiển thị chuông cửa HIKVISION DS-KD-DIS
- Màn hình LCD 3.5-inch với độ phân giải 320 x 480 pixels, hiển thị thông tin phong phú: Quay số, mở khóa bằng mã PIN, danh bạ.
- Số nút bấm: 4
- Cấp độ bảo vệ: IP65.
- Bù ánh sáng ngược phía sau module.
- Hỗ trợ nhiều ngôn ngữ.
- Lưu trữ lên đến 2000 liên hệ.
Thông số kỹ thuật
| System parameters | |
| Operation system | Linux |
| ROM | 8 MB |
| RAM | 64 MB |
| Processor | Embedded high performance processor |
| Display parameters | |
| Screen size | 3.5-inch |
| Operation method | Physical buttons |
| Type | TFT |
| Resolution | 320 × 480 |
| Brightness | Adjustable, Max.250 cd/m2 |
| Device interfaces | |
| RS-485 | 1 |
| General | |
| Button | 4 physical buttons |
| Installation | Flush mounting, surface mounting |
| Protective level | IP65 |
| Working temperature | 20 °C to 60 °C (-4 °F to 140 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 98.5 mm × 100 mm × 34.2 mm |
| Application environment | Outdoor |
| Power consumption | 2.5 W |
- Bảo hành: 24 tháng.
