Modular Jack LS Unshieled Cat5e UTP ERI White (LS-MJ-UC5E-WH-ERI)

Trang Chủ >> Cáp mạng và phụ kiện >> Cáp-phụ kiện LS >> Modular Jack LS Unshieled Cat5e UTP ERI White (LS-MJ-UC5E-WH-ERI)
Mã số:11190058

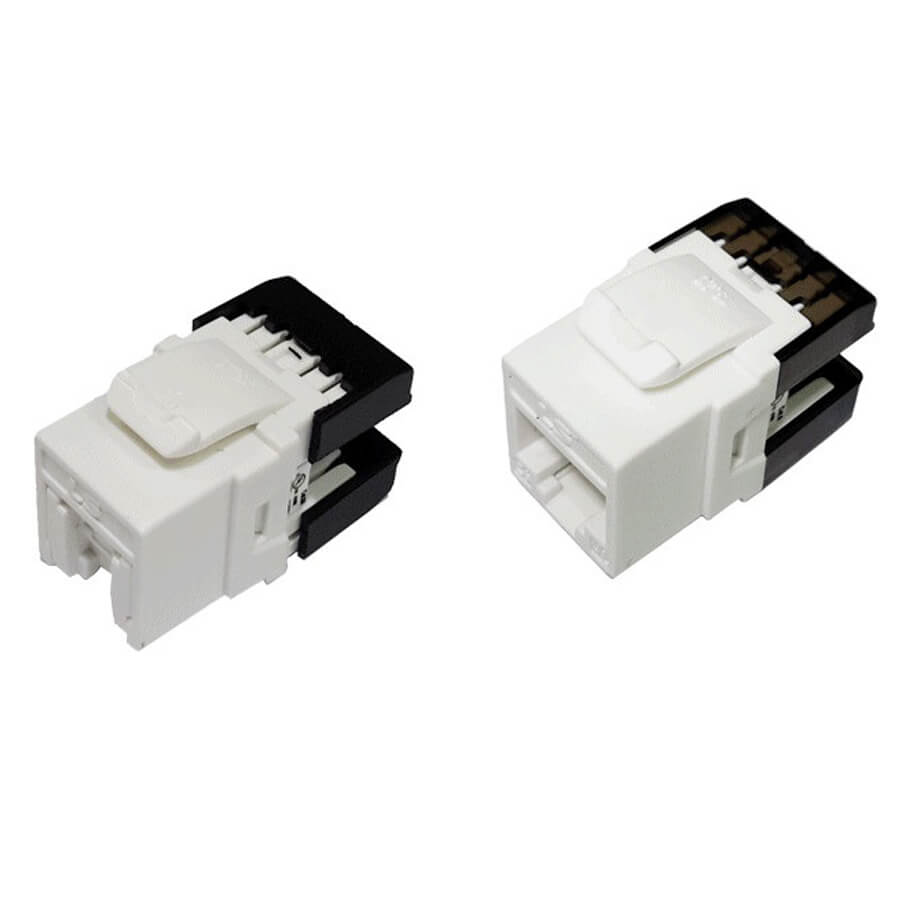

Modular Jack LS Unshieled Cat5e UTP ERI White (LS-MJ-UC5E-WH-ERI)

Modular Jack LS Unshieled Cat5e UTP ERI White (LS-MJ-UC5E-WH-ERI)

Part Number: LS-MJ-UC5E-WH-ERI.

Category 5e Unshielded Keystone Jack White color, Enhanced Rear IDC type.

Description

LS simple™ Category 5e modular jacks are designed and manufactured to meet today’s and tomorrow’s demanding international standards. It takes into consideration the needs for reliable and quick installations. The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool. User instructions and basic wiring layout for standard configuration are included. The LS simple™ Modular Jack comes with the ability to wire to a T568A or T568B configuration and fully complies with ANSI/TIA-568-C.2 (Category 5e) and ISO/IEC 11801(Class D) component performances.

Application

- Meet Category 5e/Class D performance levels.

- Architectural design and flexibility – Support max. 4 connection channels.

- Universal design and label supports both T568A and T568B wiring.

- IDC Connector accept and allow quick, easy installation of 22~26 AWG cable.

- Optimal performance is achieved when using LS simple™ Category 5e patch cords.

Specification

Part Number LS-MJ-UC5E-WH-ERI
Electrical / Mechanical Characteristics
Current Rating 1.5 A
DC Resistance 0.1 Ω Max
Voltage 150 VAC Max
Insertion Life 750 Mating Cycles
Plug Retention Force 20 lbs (89N)
Temperature -40ºC ~ 68ºC
Humidity 10% ~ 90% RH
IDC Accept 22 ~ 26 AWG Solid Wire
Dimension 0.76 x 0.66 x 1.5 inch
Materials
Housing High Impact Flame Retardant Plastic, UL 94V-0 Rated
Spring Wire Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat
IDC Plastic Polycarbonate or ABS, UL 94V-0 Rated
IDC Contact Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin
Shield Copper Zinc Alloy, Pre-Plated with Bright Nickel
Approvals
Category ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D
Wiring Scheme T568A/T568B
Meet FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.

Giá: 70.000 VND
