Mixer ma trận số TOA M-9000M2

Trang Chủ >> Âm thanh thông báo >> Âm thanh TOA >> Mixer ma trận số TOA M-9000M2
Mã số:23020615

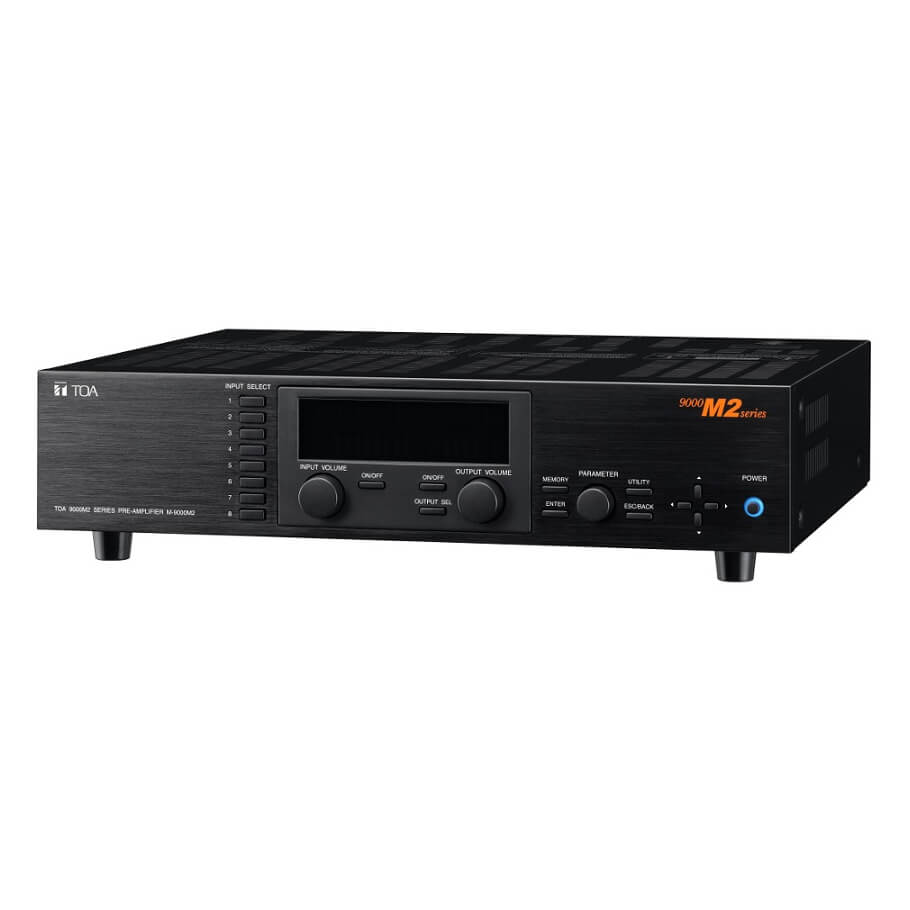

Mixer ma trận số TOA M-9000M2

Mixer ma trận số TOA M-9000M2

M-9000M2 là một bộ Mixer tiền khuếch đại dạng ma trận, hỗ trợ sử dụng với các Mô-đun khác nhau cho phép thiết bị có thể mở rộng tới 8 ngõ vào âm thanh và 8 ngõ ra âm thanh. Có thể sử dụng Mô-đun dòng 9000 hoặc các Mô-đun ngõ vào hiện có của dòng 900 tùy thuộc vào từng ứng dụng cụ thể. M-9000M2 được trang bị bộ xử lý tín hiệu số và các chức năng cần thiết để xử lý âm thanh và cài đặt thông số sử dụng ngay trên Mixer. Dữ liệu cài đặt có thể được lưu trữ vào trong thiết vị và kích hoạt lại phím ấn trên bẳng điều khiển trước mặt.

- The M-9000M2 Pre-Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

Specifications

Model M-9000M2
Power Source 120 V AC, 60 Hz
Power Consumption 40 W
Audio Input Max. 8 channels, modular construction (modules optional)
Audio Output Preamplifier output 1, 2: 0 dB, 600 Ω, balanced, removable terminal block (3 pins)
Digital Audio Signal Reference Level -20 dBFS
Frequency Response 20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion 0.008 %
Cross Talk 64 dB or more (at 20 kHz)
Parametric Equalizer 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
Speaker Equalizer 10 (setup software has 30 TOA speaker presets)
High-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor Depth: 1 – 5
Delay 0 - 40 m
Scene/Event Memory 32
Auxiliary Function Key lock function
Finish Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint
Dimensions 420 (W) × 107.6 (H) × 353 (D) mm

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
