Máy test cáp mạng và điện thoại NOYAFA NF-8601S

Trang Chủ >> Cáp mạng và phụ kiện >> Máy TEST cáp mạng NOYAFA >> Máy test cáp mạng và điện thoại NOYAFA NF-8601S
Mã số:11176408

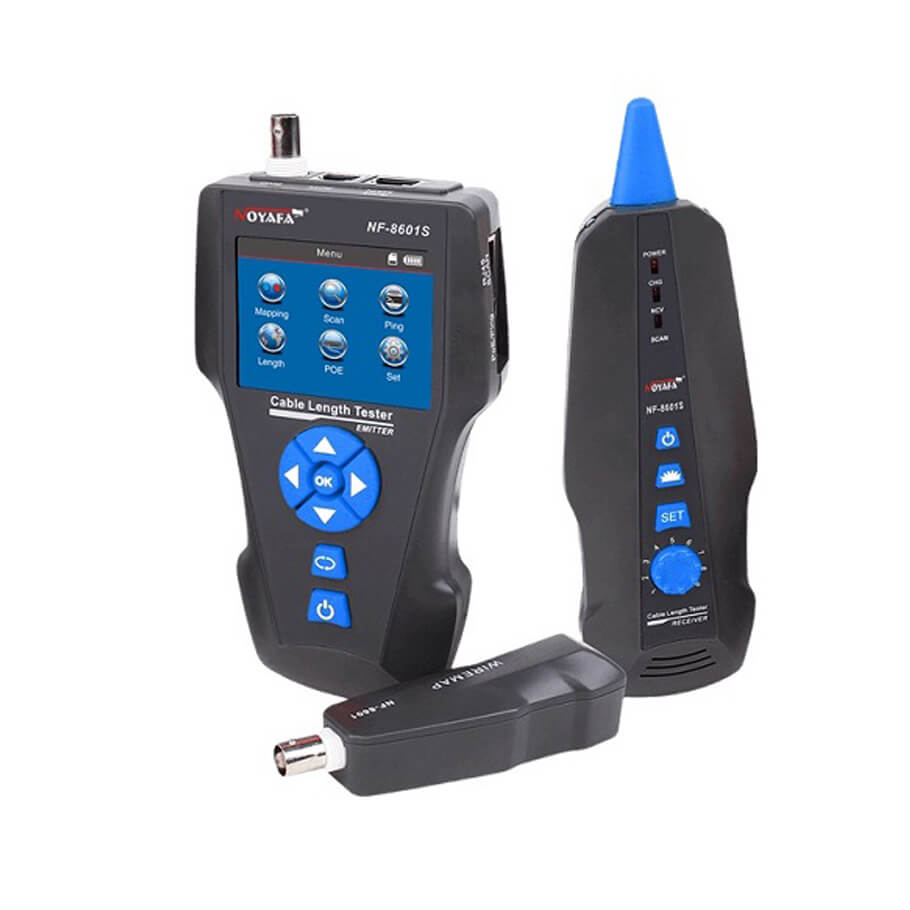

Máy test cáp mạng và điện thoại NOYAFA NF-8601S

Máy test cáp mạng và điện thoại NOYAFA NF-8601S

- Máy test cáp mạng NOYAFA NF-8601S có chức năng test cáp mạng và điện thoại (RJ45, RJ11). NOYAFA NF-8601S bao gồm một máy kiểm tra chính, một máy thu và một bộ nhận dạng từ xa.

- OEM/ODM: Yes

- Port: RJ45, RJ11, BNC.

- Test length: RJ11, RJ45, BNC.

- Tracking Type: RJ45, RJ11, BNC, and Metal Cable.

- Other Function: PING, PoE, and Port flash function.

- Power: 3.7V Lithium battery.

Đặc tính kỹ thuật

 NF-8601S Transmitter specifications
 Indictor  LCD 320x240 mm, with backlight
 Cable test types  STP/UTP 5E,6E network , telephone , coaxial cable.
 Max. distance of wiremap  1000 m
 Max. distance of tracing  1000m
 Max. distance of cable length   1000 m
 Min. distance of calibration  50 m
 Accuracy   up to 98% ( after calibration )
 Compatible connectors  RJ11, RJ45, PING/POE, BNC
 Cable map indication  LCD (#1-#8)
 Battery Type  3.7V lithium battery 1800mAh
 Work temperature/humidity  10℃ ~ -60℃ / 0℃~70℃
 Dimension(LxWxD)  173x92x34mm
 NF-8601S Receiver specifications
 Cable hunting  RJ11RJ45, BNC
 Types of cable  ≥ 2 cores
 Battery Type  3.7V lithium battery 1800mAh
 Dimension(LxWxD)  183x58x35 mm
 NF-8601S Remote unit specifications
 Compatible connectors  RJ11RJ45, BNC
 Dimension(LxWxD)  106x32x30mm

- Bảo hành: 12 tháng.

Giá: 4.485.000 VND (Đã bao gồm VAT)
