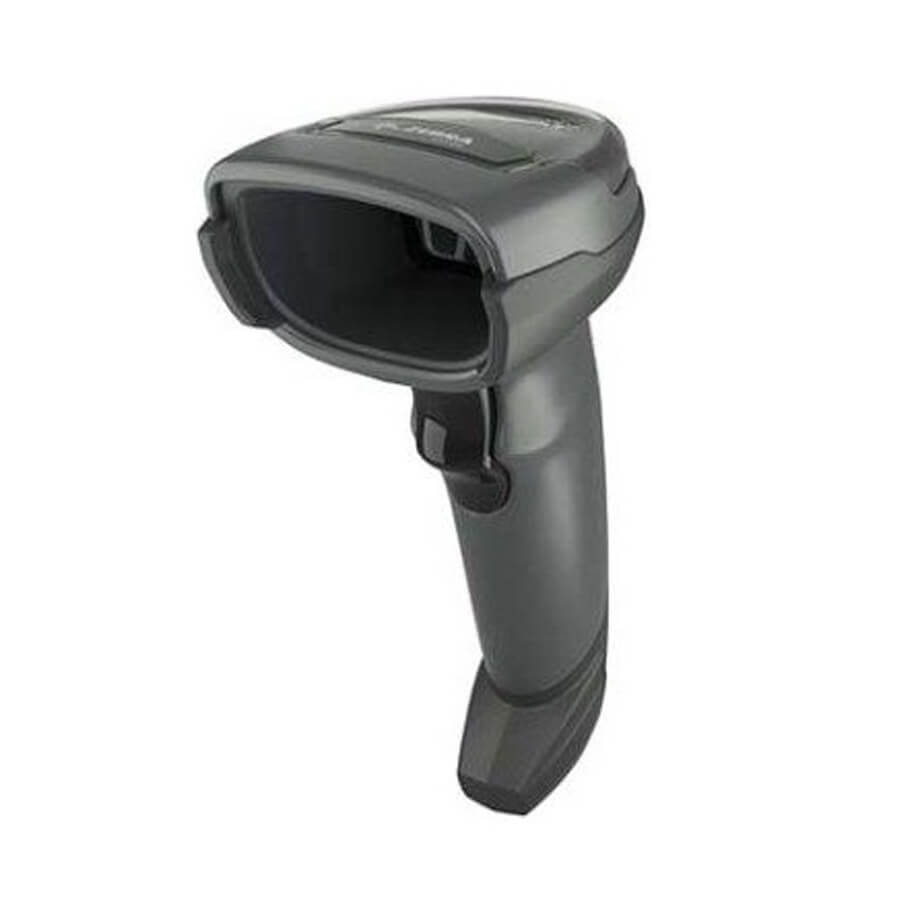

Máy quét mã vạch Zebra Symbol DS4608-SR
- Máy quét mã vạch Zebra Symbol DS4608-SR là sản phẩm máy đọc 2D mới nhất của hãng Zebra/Motorola với hiệu suất và phạm vi tốt cùng với khả năng đọc được các loại mã vạch mờ, trầy xước, bụi bẩn bám vào.
- Quét được mã vạch 1D, 2D, ORC chuẩn hóa quốc tế.
- Công nghệ PRZM đọc ảnh thông minh.
- Tốc độ quét: 76 cm/s.
- Cổng giao tiếp: USB (mặc định), tùy chọn KB, RS-232.
Đặc tính kỹ thuật
| Physical Characteristics | |
| Dimensions (H x W x D) | 16.5 x 6.7 x 9.8 cm |
| Weight | 161.9g |
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Operating Current at Nominal Voltage (5.0V) | 340 mA (typical) |
| Standby Current (Idle) at Nominal Voltage (5.0V) | 150 mA (typical) |
| Supported Host Interfaces | USB |
| Keyboard Support | Supports over 90 international keyboards |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume) |
| Performance Characteristics | |
| Light Source | Aiming Pattern: circular 617nm amber LED |
| Illumination | (2) 660nm red LEDs |
| Imager Field of View | 36.1° H x 22.6° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0° - 360° |
| Imaging Characteristics | |
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality | 96PPI on an A4 document (DS4608-SR) |
| Environmental | |
| Operating Temperature | 32.0° to 122.0° F / 0.0° to 50.0° C |
| Storage Temperature | -40.0° to 158.0° F / -40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 foot candles/0 to 107,000 Lux |
| Regulatory | |
| Environmental | 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018 |
| Electrical Safety | UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 |
| LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 |
| EMI/RFI | FCC: 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B, EN 55032, Class B, EN 55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014 |
| Symbol Decode Capability | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
| OCR | OCR-A, OCR-B, MICR, US Currency |
| Minimum Element Resolution | Code 39 - 3.0 mil DataMatrix - 5.0 mil |
- Bảo hành: 12 tháng.
