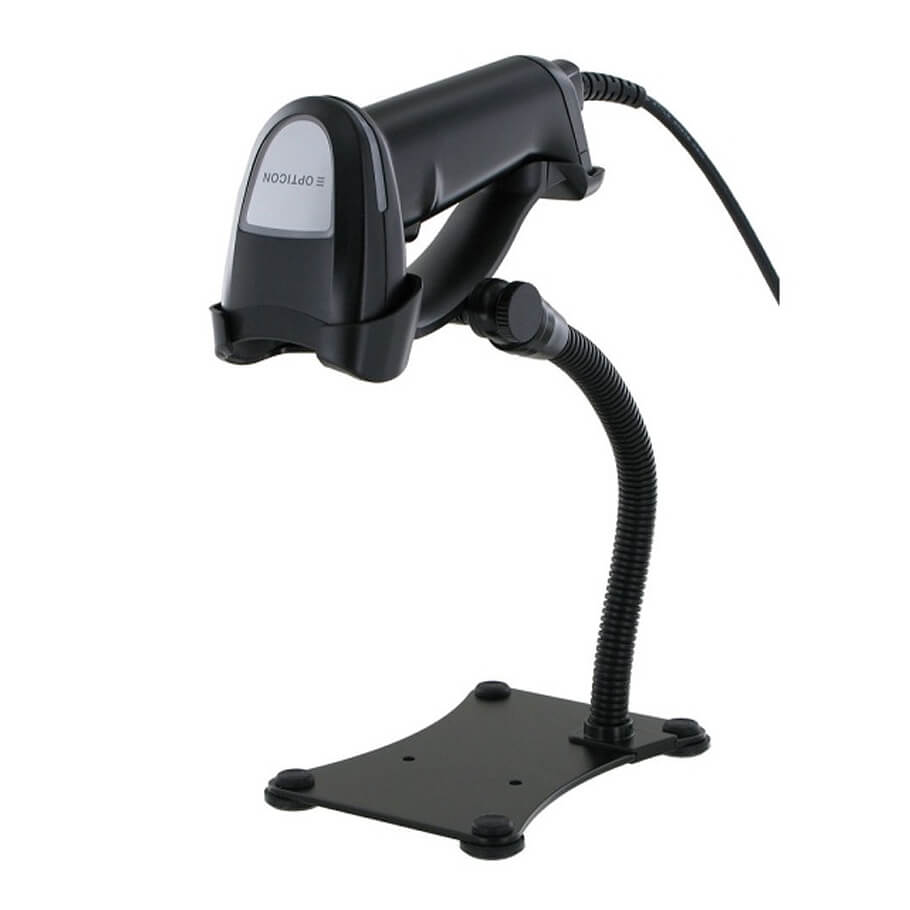

Máy quét mã vạch OPTICON L-46R-USB-BLK+STD
- Máy quét mã vạch L-46R-USB-BLK+STD là máy quét mã vạch cầm tay đi kèm với chân đế có tốc độ quét lên tới 100 scans/giây.
- Tốc độ quét: 100 scans/s.
- Quét cầm tay hoặc tự động.
- Cổng kết nối: USB.
- Tiêu chuẩn: IP42.
- Có khả năng chịu được độ rơi 1.8 mét.
- Chân đế: Có.
- Kích thước: 105.4 x 153.4 x 60 mm.
- Trọng lượng: 150g.
- Màu sắc: Đen.
Đặc tính kỹ thuật
| Operation | CPU: 32-bit |
| Operating indicators | Visual: 1 LED Non-visual: buzzer, vibrator (optional) |
| Operating keys | Entry options: 1 scan key |
| Communication | RS232C: DB9 pin (with external power supply), D-SUB9 pson pin 9 (optional) USB: ver. 2.0, HID/VCP, USB-A connector |
| Power | Voltage requirement: 5V ±10% Current consumption: 155 mA typical |
| Barcode scanner optics | Light source: red laser, 650nm Scan method: 650nm red laser diode, bi-directional scanning Scan rate: Up to 100 scans/second Trigger mode: Manual, auto-trigger, stand detection Reading pitch angle: ±350 Reading skew angle: -500 to 80, 80 to +500 Reading tilt angle: ± 200 Curvature: R≥15 mm (EAN-8), R≥20 mm (EAN13) Min. resolution at PCS 0.9: 0.076 mm Min. PCS value: 0.2 Depth of field at code 39: - 10 - 60 mm (0.127 mm - 5 - 90 mm (0.15 mm) - 5 - 200 mm (0.25 mm) - 0 - 495 mm (0.5 mm) - 20 - 895 mm (1.0 mm) |
| Supported symbologies | Barcode (1D): UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on, Code 39, NW-7 (Codabar), Industrial 2 of 5, Interleaved 2 of 5, Code 93, Code 128, GS1-128, MSI/Plessey-UK/Plessey, Matrix 2of5, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, TELEPEN |
| Durability | Temperature in operation: -5 to 50° Temperature in storage: -30 to 60° Humidity in operation: 5% to 90% (non-condensing) Humidity in storage: 5% to 90% (non-condensing) Ambient light immunity: Fluorescent 4,000 lx, direct sun 80,000 lx Max drop test: 1.8m drop onto concrete surface Vibration test: 10 - 100Hz with 2G for 1 hour Protection rate: IP42 |
| Physical | Dimensions Scanner (W x H x D): 105.4 x 153.4 x 60 mm Weight body: Ca. 111g Dimensions Stand (W x H x D): 53 x 112 x 73 mm Weight Stand: Ca. 365g Case: Black |
| Regulatory & safety | Product compliance: CE, FCC, VCCI, RoHS, IEC/EN60825-1:2014, JIS C 6802:2014, CDRH Class II, EN55032, EN61000 |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
