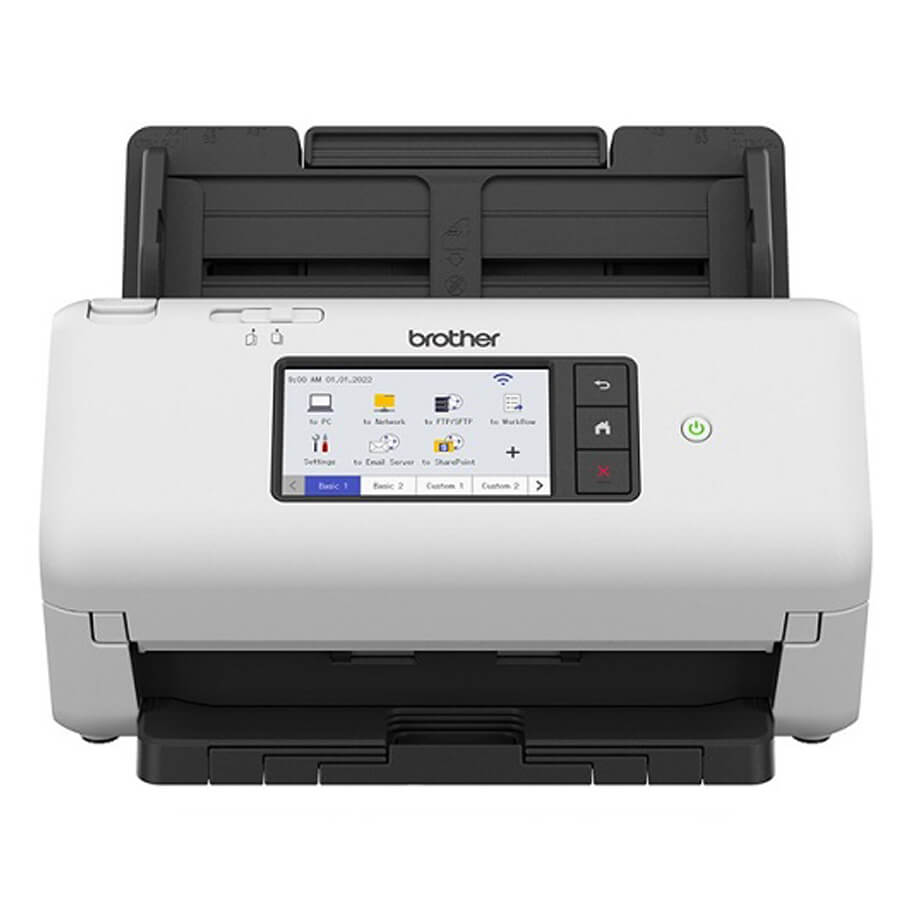

Máy quét hai mặt Wifi Brother ADS-4700W
- Máy quét 2 mặt tự động.
- Tốc độ scan (A4): 40ppm (trang trên phút)/ 80ipm (hình ảnh trên phút).
- Giao diện: SuperSpeed USB 3.0, USB 2.0 Host (Rear).
- Kết nối mạng có dây: 10Base-T/100Base-TX Ethernet
- Kết nối mạng không dây: 2.4GHz: IEEE 802.11b/g/n, (Infrastructure Mode), Vertical Pairing.
- Độ phân giải quang học: 600 x 600 dpi.
- Hỗ trợ các định dạng file: PDF (single, multi, PDF/A-1b, secured, signed), JPEG, TIFF (single, multi).
- Tính năng scan cơ bản: Scan to PC, Direct Scan (USB Host - up to 128 GB), Network (SMB), FTP/SFTP, Email Server, SharePoint (On Premise), Brother Web Connect, Scan to HTTP(S), Brother Apps.
- Scan Profiles: Có thể tạo lên đến 25 profile scan đến SFTP/FTP/Network.
- Khay nạp giấy ADF: 80 tờ
- Trọng lượng giấy: 40 - 200 gsm.
- Công suất scan hàng tháng: 120.000 tờ.
Đặc tính kỹ thuật
| General | |
| Product Form Factor | Sheet Fed Desktop Document Scanner |
| Scanner Type | Dual CIS (Contact Image Sensor |
| Control Panel | 10.9cm Colour Touchscreen, 4 Keys |
| Backup Clock | Up to 24 hours |
| Local Interface | SuperSpeed USB 3.0, USB 2.0 Host (Rear) |
| Wired Network Interface | Wired Network interface (10Base-T/100Base-TX) |
| Wireless Network Interface | 2.4GHz: IEEE 802.11b/g/n, (Infrastructure Mode), Vertical Pairing |
| Wi-Fi Direc | Scan without having to use a wireless access point (both automatic and manual methods supported) |
| Mobile Scan | View scans on your mobile device from your Brother scanner |
| Configurable Shortcuts | Add, delete, change up to 56 personalised shortcuts for quick and secure access to device functions |
| Scan | |
| Scan Speeds (A4) (Colour & Mono) | Up to 40 ppm |
| Scan Speeds 2-Sided (duplex) (A4) | Up to 80 ipm |
| Optical Scan Resolution | Up to 600 x 600dpi |
| Interpolated Scan Resolution | Up to 1,200 x 1,200dp |
| Wake-up Time | USB connected, approx 1 sec from sleep mode |
| Colour Depth | 48-bit internal, 24-bit external |
| Grey Scale | 256 levels (8 bit) |
| Scanner Functions | |
| Image Processing | Auto Deskew(Feed), Detect End of Page, Margin Setting, Auto Image Rotation, Edge Fill, Tear Fill, Punch Hole Removal, Auto Colour Detect Adjust, Blank Page Removal, Diffusion Adjustment - Grey, Colour Tone Adjustment |
| File Format Support | Including PDF (single, multi, PDF/A-1b, secured, signed), JPEG, TIFF (single, multi) |
| Standard Functions | Scan to PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP, SharePoint(On Premise), Brother Webconnect, Scan to HTTP(S), Brother Apps Background Processing, Colour Drop, Edge Emphasis, Moire Reduction, Vertical Streak Reduction, B&W Threshold Adjustment, Character Correction, B&W Inversion, Noise Reduction, Remove Ruled Line, 2in1 Scan, 1to2 Scan, Carrier Sheet Mode |
| Scan Profiles | Create up to 25 preset scan to SFTP/FTP/Network/SharePoint/HTTP(s) profiles |
| Direct Scan | Scan directly to a USB flash memory storage Plastic Card Mode, Single Page Scan, Continuous Scan, Multi Feed Detection, Half Speed Mode, Barcode Detection, JPEG Compression, Digital Imprinter, Custom TWAIN Profiles |
| Feed Control | Ultra Sonic Multi Feed Sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Auto Start Scan, Continuous Scan, Resume Scan, Document Separation |
| Software | |
| Windows Drivers | TWAIN, ISIS, WIA, WIndows 11, Windows 10 (Home|Pro|Education|Enterprise) (32 or 64 bit editions), Windows 8.1 (32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012 |
| Windows Software | Brother ScanEssentials, Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup |
| Macintosh Drivers | AirPrint Scan Support, TWAIN macOS 10.14.x or greater |
| Macintosh Software | Brother iPrint&Scan for Desktop, Remote Setup |
| Linux Drivers | SANE |
| Media Handling | |
| Automatic Document Feeder (ADF) | 80 Sheets |
| Media Sizes | Width: 50.8 - 215.9mm, Height: 50.8 - 355.6mm, Long Paper: 5,000mm |
| Plastic Card | Length (ISO): 85.60mm, Width (ISO): 53.98mm |
| Media Types | Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
| Media | Paper Weight: 40 - 200gsm, Paper Thickness: 0.08 - 0.28mm Plastic Card Thickness: Up to 1.32mm embossed, up to 1.10mm without emboss |
| Mobile and Web Connectivity | |
| Brother Mobile Connect | Use a Brother app to scan to a mobile device running iOS or Android operating system |
| Brother Apps | Scan to Searchable PDF, Microsoft PowerPoint, Word, Excel, Easy Scan to Email, Scan to Mobile |
| Web Connect | Without a PC you can upload scans to Box, SharePoint Online, DropBox, EvernoteTM, OneDrive, OneNote, Google DriveTM |
| Fleet Management Tools | |
| Embedded Web Server | Using the IP address or node name of your device access via a web browser to the web based print management software embedded onto the device using an encrypted password |
| LAN/WAN Management Software | Brother BRAdmin Light and BRAdmin Professional 4 |
| Dimensions and Weight | |
| Dimensions (W x D x H) | 299 x 215 x 190 mm |
| Weight | 2.75kg |
| Duty Cycle | |
| Maximum Daily | 6,000 Sheets |
| Maximum Monthly | 120,000 Sheets |
| Pickup Roller for ADF | 100,000 Sheets (A4/LTR) |
| Reverse Roller | 100,000 Sheets (A4/LTR) |
| Environment | |
| Power Requirements | AC: 100-240V, 50/60 Hz, DC: 24V, 1.9A |
| Power Consumption | Scanning: 26W, Ready: 8.6W, Sleep: 1.7W, Network Standby: 2.1W, Power Off: 0.1W |
| Power Saving Modes | Sleep, Power Down, Auto Power On after power outage, LCD Off Time |
| Sound Power | Scanning <59dB |
| Operating Environment | Humidity: 20 - 80 %, 5°C - 35°C |
| Storage Environment | Humidity: 10 - 90 %, -20°C to 60°C |
- Bảo hành: 12 tháng.
