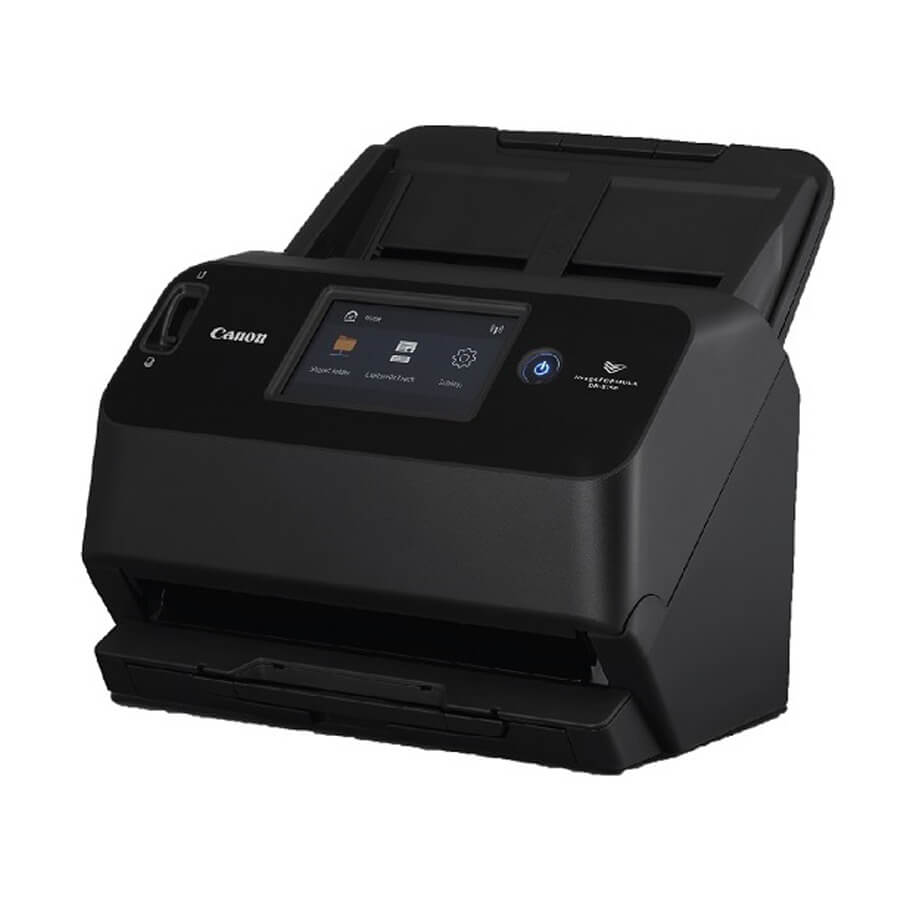

Máy quét 2 mặt Canon DR-S150
- Tốc độ Scan: 45 tờ/phút (một mặt), 90 tờ/phút (hai mặt).
- Khay nạp tài liệu: 60 tờ.
- Độ phân giải: 600 x 600 dpi.
- Công nghệ quét: CIS.
- Nguồn sáng: LED (R,G,B).
- Trọng lượng: 3.3kg
- Cổng giao tiếp: USB 3.2 Gen1x1/USB 2.0, IEEE802.11b/g/n, 10Base-T/100Base-TX/1000Base-T.
- Công suất/ngày: 4.000 bản quét.
Thông số kỹ thuật
| Document size | Plain paper: Width: 50.8 mm to 216 mm Length: 54 mm to 356 mm * You can scan documents up to 3,000 mm long by setting the scanner to the Long Document mode. |
| Business card: 50 mm x 85 mm or larger | |
| Card: 54 mm x 86 mm (ISO standard) | |
| Passport: Size: 88 mm x 125 mm (ISO standard) * When scanning, be sure to open the passport and insert it in the separately sold carrier sheet beforehand. |
|
| Document thickness and weight | Plain paper: Page separation: 0.04 mm to 0.25 mm. 27 to 209 g/m² Bypass: 0.04 mm to 0.3 mm. 27 to 255 g/m² |
| Business card: 380 g/m² 0.45 mm or less | |
| Card: 1.4 mm or less | |
| Passport: 4 mm or less (including carrier sheet) | |
| Document feeding method | Automatic |
| Scanning sensor | Contact image sensor |
| Light source | LED |
| Scanning side | Simplex / Duplex |
| Scanning modes | Black and White, Error Diffusion, Grayscale, Active Threshold, Advanced Text Enhancement, Advanced Text Enhancement II |
| Scanning resolution | 100 x 100 dpi / 150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi / 400 x 400 dpi / 600 x 600 dpi |
| Scanning speed | Grayscale: 200 dpi / 300 dpi: 45 ppm (Simplex), 90 ipm (Duplex) Color: 200 dpi: 45 ppm (Simplex), 90 ipm (Duplex) 300 dpi: 30 ppm (Simplex), 60 ipm (Duplex) |
| Interface | USB 3.2 Gen1x1 / USB 2.0, IEEE802.11b/g/n, 10Base-T/100Base-TX/1000Base-T |
| Scanner driver | ISIS / TWAIN Driver |
| Other functions | Folio scanning, Double feed detection ignore |
| Dimensions (W x D x H) | With the trays closed: 291 mm x 247 mm x 242 mm With the trays open: 291 mm x 600 mm x 378 mm |
| Weight (without AC adapter) | Approximately 3.3kg |
| Power supply (using AC adapter) | 24 VDC, 0.9 A |
| Power consumption | Scanning: 22.5 W or less In the sleep mode: 3.4 W or less With power switch OFF: 0.1 W or less |
| Operating environment | Temperature: 10°C to 32.5°C Humidity: 20% to 80% RH |
| Options/consumables | Flatbed Scanner Unit 102 Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4) |
- Bảo hành: 12 tháng.
