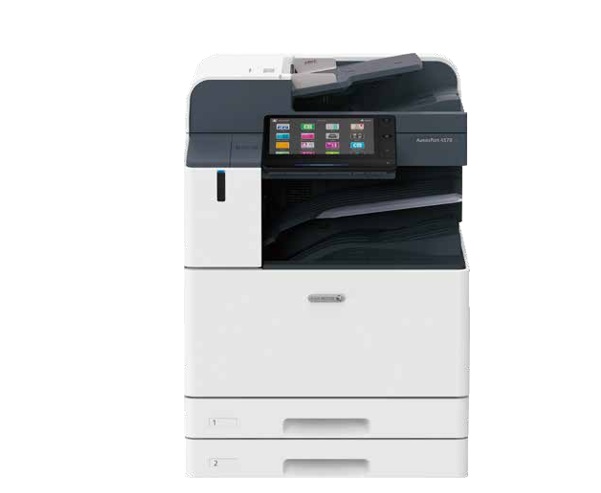

Máy photocopy FUJIFILM Apeos 5570
- Chức năng chuẩn: Copy/In mạng/Scan mạng màu- DADF - Duplex.
- Tốc độ copy/In: 55 trang/phút.
- Tốc độ scan: 80 trang/phút (màu, đen trắng).
- Quét 1 lần 2 mặt bản gốc 154 trang/phút.
- Bộ nhớ: 4GB.
- Ổ cứng: SSD 128GB.
- 02 khay nạp giấy chính (500 tờ/khay).
- 01 khay giấy tay (90 tờ).
- Khổ giấy A5-A3.
- Sao chụp liên tục: 999 tờ.
- Tỉ lệ thu phóng: 25% - 400%.
- Bộ nạp và đảo bản gốc tự động (DADF) - Có sẵn.
- Bộ đảo bản sao tự động (Duplex).
- Chia bộ bản sao so le.
- Giao diện điều khiển: LCD màu 10.1 inch.
- Chuẩn kết nối: Ethernet 10/100/1000Base-TX, USB3.0.
Đặc tính kỹ thuật
| Basic Specifications/Copy Function | |
| Type | Desktop/Console |
| Memory Capacity | 4 GB (Max: 4 GB) |
| Storage Device Capacity*1 | 128 GB |
| Scan Resolution | 600 x 600 dpi |
| Printing Resolution | 600 x 600 dpi (Text / Text-Photo / Photo / Map) |
| Warm-up Time | [Embedded Plug-ins / Custom Services] When enabled: 30 seconds or less (23 degrees Celsius room temperature) When disabled: 24 seconds or less (23 degrees Celsius room temperature) |
| Recovery Time (Recovery Time from Sleep mode) | 11 seconds or less (23 degrees Celsius room temperature) |
| Original Size | Maximum of A3, 11 x 17', 297 x 432 mm for both Sheet and Book |
| Paper Size | Max: SRA3 (320 x 450 mm), 12 x 18 inch (305 x 457 mm), A3 [12 x 19 inch (305 x 483 mm), 320 x 483 mm when using BypASS TrAy] Min: A5, PostcArd (100 x 148 mm) [89 x 98 mm when using BypASS TrAy] Image loss width: LeAd edge 4.0 mm, TrAil edge 2.0 mm, Right/Left edge 2.0 mm |
| Paper Weight | Paper Tray: 52 to 300 gsm Bypass Tray: 52 to 300 gsm |
| First Copy Output Time | 3.6 sec. (A4 LEF) |
| Continuous Copy Speed | A4 LEF: 55 ppm JIS B5 LEF: 55 ppm A4 / JIS B5: 40 ppm JIS B4: 32 ppm A3: 27 ppm |
| Paper Tray Capacity | Standard: 2 Tray Model: 500 sheets x 2-tray + Bypass Tray 90 sheets Tandem Tray Model: 500 sheets x 2-tray + 810 sheets + 1175 sheets + Bypass Tray 90 sheets |
| Optional: 2 Tray Module: 500 sheets x 2-tray Tandem Tray Module: 810 sheets + 1175 sheets HCF B1: 2030 sheets |
|
| Max: 2 Tray Model: 5105 sheets (Standard + Tandem Tray Module + HCF B1) Tandem Tray Model: 5105 sheets (Standard + HCF B1) |
|
| Output Tray Capacity | Upper Center: 250 sheets (A4 LEF), Lower Center: 250 sheets (A4 LEF) |
| Power Supply | AC220-240 V +/- 10 %, 10 A, 50/60 Hz common |
| Maximum Power Consumption | 2.2 kW (AC220 V +/- 10%) 2.4 kW (AC240 V +/- 10%) Sleep mode: 0.5 W (AC230 V) Ready mode: 89 W (AC230 V) |
| Dimensions | 2 Tray Model: W 620 x D 723 x H 880 mm Tandem Tray Model: W 620 x D 723 x H 1141 mm |
| Weight | 2 Tray Model: 97 kg Tandem Tray Model: 133 kg |
| Print Function | |
| Type | Built-in type |
| Continuous Print Speed | Same as the Basic Specifications/Copy Function |
| Printing Resolution | Standard: [PCL Driver] Standard: 1200 x 2400 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi |
| Optional: [Adobe® PostScript® 3TM Driver] High Speed (Standard): 600 x 600 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi |
|
| Page Description Language | Standard: PCL5 / PCL6 Optional: Adobe® PostScript® 3TM |
| Supported Operating System | Standard: [PCL Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) [Mac OS X Driver] macOS 10.15 / 10.14 / 10.13 / 10.12, OS X 10.11 |
| Optional: [Adobe® PostScript® 3TM Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 10.15 / 10.14 / 10.13 / 10.12, OS X 10.11 |
|
| Interface | Standard: Ethernet 1000BASE-T/100BASE-TX/10BASE-T, USB3.0 Optional: Wireless LAN (IEEE 802.11 a/ b/ g/ n/ ac) |
| Scan Function (Optional) | |
| Type | Colour Scanner |
| Scan Resolution | 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi |
| Scan Speed | Same as the Scan Speed for the Duplex Automatic Document Feeder |
| Interface | Standard: Ethernet 1000BASE-T/100BASE-TX/10BASE-T Optional: Wireless LAN (IEEE 802.11 a/b/g/n/ ac) |
- Bảo hành: 12 tháng.
