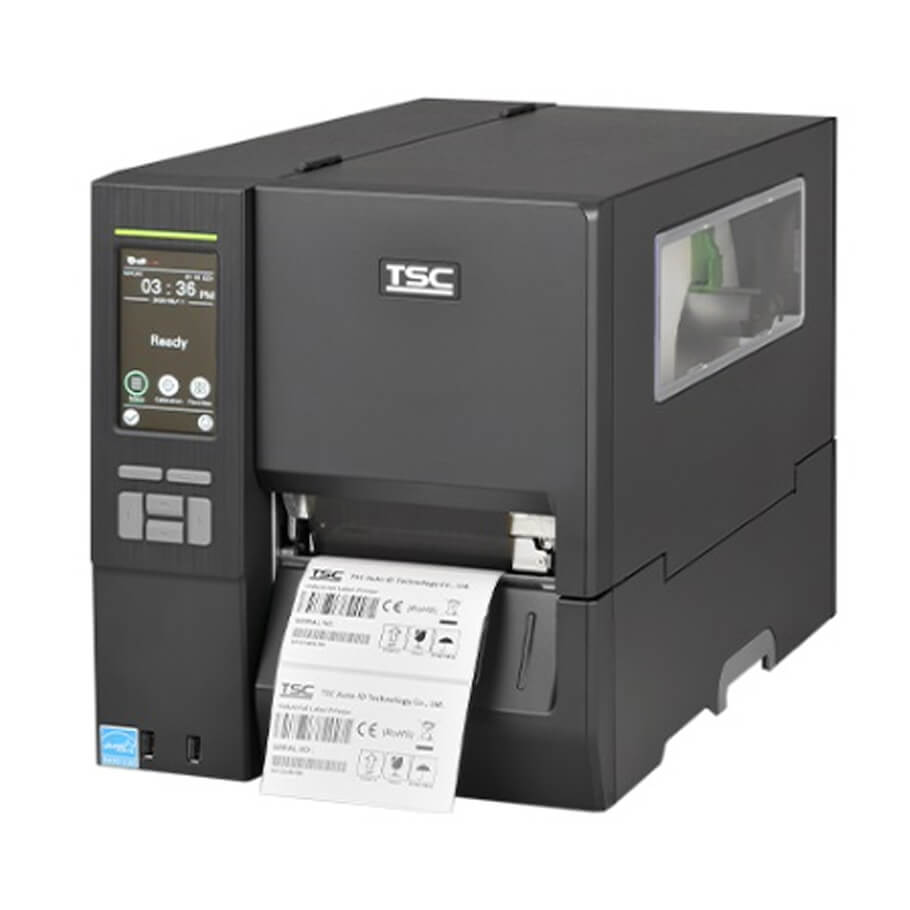

Máy in tem nhãn mã vạch TSC MH-341
- Tốc độ in: 12 IPS( 305mm/giây).
- Độ phân giải: 300dpi.
- Bề rộng in được: 104mm.
- Bộ nhớ:
+ 512MB Flash memory;
+ 256MB SDRAMSD
+ microSD Flash memory card reader for Flash memory expansion, up to 32GB.
- Giao tiếp: RS-232, USB, Ethernet.
Đặc tính kỹ thuật
| Resolution | 12 dots/mm (300 DPI) |
| Printing method | Thermal Transfer and Direct Thermal |
| Max. print speed | 305 mm (12 inch)/second |
| Max. print width | 104 mm (4.09 inch) |
| Max. print length | 11,430 mm (450 inch) |
| Enclosure | Die-cast print mechanism and base with bi-fold metal cover with large clear media view window |
| Physical dimension | 276 mm (W) x 326 mm (H) x 502 mm (D) |
| Weight | 15.60 kg |
| Label roll capacity | 203.2 mm |
| Internal rewinder (full roll) | Internal rewinding kit (5 inch O.D.) (dealer option) |
| Ribbon | 600m long, max. O.D. 90mm, 1 inch core (ink coated outside or inside) |
| Ribbon width | 25.4 mm ~ 114.3 mm |
| Processor | 32-bit RISC CPU |
| Memory | 512MB Flash memory 256MB SDRAM microSD Flash memory card reader for Flash memory expansion, up to 32GB |
| Interface | RS-232 USB 2.0 (High speed mode) Internal Ethernet, 10/100 Mbps USB host *2 (Front side), for scanner or PC keyboard GPIO (DB15F) + Centronics (factory option) Internal Bluetooth 5.0 MFi (factory option) Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
| Power | Internal switching power supply + Input: AC 100-240V, 4-2A, 50-60Hz + Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
| LCD display/Operation buttons | + 6 operation buttons + 1 LED (with 2 LEDs Green & Red) |
| LCD | 3.5 inch color display, 320 x 240 pixel |
| Sensors | Gap transmissive sensor (position adjustable) Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable) Head open sensor Ribbon encoder sensor Ribbon end sensor |
| Real time clock | Standard |
| Internal font | 8 alpha-numeric bitmap fonts Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font |
| Barcode | 1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post 2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Font & barcode rotation | 0, 90, 180, 270 degree |
| Printer language | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Media type | Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound) |
| Media width | 20 ~ 114 mm |
| Media thickness | 0.06 ~ 0.28 mm |
| Media core diameter | 3.81 mm / 76.2 mm |
| Label length | 5 ~ 25,400 mm |
| Environment condition | Operation: 0 ~ 40˚C (32 ~ 104˚F), 25~ 85% non-condensing Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~ 90% non-condensing |
| Safety regulation | FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR® |
| Environmental concern | Comply with RoHS, WEEE |
- Bảo hành: 12 tháng.
