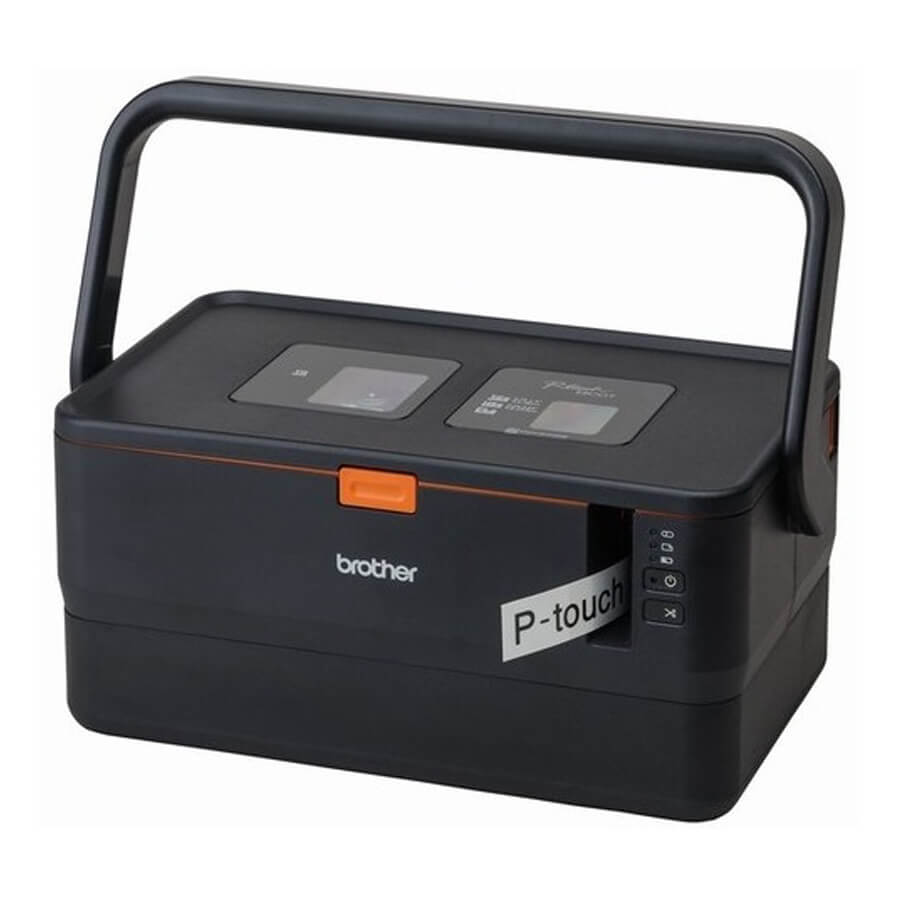

Máy in nhãn, in ống Brother P-Touch PT-E800T
- Máy in ống và in nhãn.
- Là dòng máy thế hệ mới nhất tích hợp in ống và nhãn chất lượng cao. Phục vụ tốt trong việc đánh dấu thông tin cho dành cho ngành điện, tự động hóa, viễn thông…
- Kết nối với máy tính, phần mềm thiết kế nhãn in.
- Đường kính ống in: 2.5 - 6.5mm.
- Loại ống in: PVC
- Loại nhãn in: HGe, TZe, HSe
- Khổ nhãn in: 6, 9, 12, 18, 24, 36 mm.
- Số dòng in tối đa: 2 dòng.
- Độ phân giải in: 360dpi
- Tốc độ in nhãn: 60mm/s
- Tốc độ in ống: 40mm/s
- Chế độ cắt: Cắt tự động và cắt một nửa.
- Cổng kết nối USB
- Nguồn điện: AC Adapter.
Features
- The new PT-E800T industrial tube and label printer enables electricians, distribution board builders, site engineers, server installation technicians and cable installers to mark their projects easily and effectively. The robust PT-E800T prints up to 36mm wide TZe laminated labels; up to 17,7mm heat shrink tube; as well as direct to tube up to 6mm high, all from one compact labelling machine. With fast print speeds of tube printing at 40mm per second and labels at 60mm per second, the PT-E800T allows print jobs to be completed quicker and even easier with the optional rechargeable battery and base for on-site use. It can be transported to where electrical work is in progress and controlled with a laptop. Print via a USB connection with the Brother P-touch Editor software for label printing and the Brother Cable Label Tool software for tube printing.
- Brother is the first company to introduce industrial tube printers with integrated twin engines. This innovation allows electricians to switch between the tube and label print modes without the need to remove or reinsert consumables before printing. Compatible with durable TZe tapes, the toughest laminated labels in the market, the PT-E800T accepts labels of up to 36mm in width, supporting a wider range of labelling applications. Ensure the legibility of your text with the benefit of additional printable height, the PT-E800T further maximises printing options with the ability to print up to 32mm on 36mm labels, and up to 6mm on tubes.
- With the PT-E800T, electricians can replace selected components themselves, eliminating the need to rely on a distant service center for replacement. Tube cutters, cleaners and conveyance rollers can be replaced on-site in a few easy steps. The PT-E800T includes a free, automatic 3-year carry-in warranty against manufacturer defects.
- Prints on tubes up to 6.5mm
- Prints on TZe laminated tapes up to 36mm wide
- Prints on HSe Heat Shrink Tube up to 17.7mm
- Switch between tube and label printing with twin engines
- Print more per label with additional printable height
- 360dpi Print resolution
- Optional Li-ion rechargeable battery available
Specifications
|
Size |
|
|
Dimensions |
Approx. 338 mm (W) x 188 mm (D) x 151 mm (H) |
|
Weight |
Approx. 3.9 kg |
|
Printing |
|
|
Print method |
Thermal Transfer |
|
Compatible tubes *1 |
Inner diameter: Φ2.5-Φ6.5 mm |
|
Thickness: 0.5 mm |
|
|
Material: PVC |
|
|
Print head |
454 dot/360 dpi (for labels) |
|
86 dot/360 dpi (for tubes) |
|
|
High resolution mode: 720 dpi × 360 dpi max. (when connected to a computer) *2 |
|
|
Print height |
Label: 32 mm max. (when using 36 mm tape) *3 |
|
Tube: 6 mm max. (when using Φ6.5 mm tube) *3 |
|
|
Print speed |
Label: |
|
AC Adapter: max. 60 mm/sec. |
|
|
Battery: 20 mm/sec. - 60 mm/sec. (varies depending on the tape width) |
|
|
Tube: |
|
|
max. 40 mm/sec. max. |
|
|
Actual print speed varies depending on the conditions. |
|
|
Cassette |
Brother TZe tape cassette (3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm widths) |
|
Brother HSe tube cassette (5.8 mm, 8.8 mm, 11.7 mm, 17.7 mm, 23.6 mm widths) |
|
|
Brother FLe label cassette (24 mm width) |
|
|
Brother TR ribbon cassette (12 mm width) |
|
|
Power Supply |
|
|
Adapter |
AC adapter (AD9100ESA): 24 V |
|
Battery (Optional) |
Li-ion Battery (PA-BT-4000LI): 14.4 V |
|
Auto Power-off |
Li-ion Battery (PA-BT-4000LI): 30 min |
|
AC adapter (AD9100ESA): Off |
|
|
Interface |
|
|
USB |
Version 2.0 Full Speed |
|
Other |
|
|
Operating temperature/humidity |
▪ TZe engine |
|
When running: between 10°C and 35°C / between 20% and 80% |
|
|
max. wet bulb temperature: 27°C |
|
|
▪ Tube engine |
|
|
When running: between 15°C and 35°C / between 20% and 80% |
|
|
max. wet bulb temperature: 27°C |
|
|
*1 |
You may not be able to obtain high-quality printing results depending on the type of tube you are using. Before using a tube, print a test to check the results. |
|
*2 |
The high resolution mode can be used if the AC adapter is connected and TZe laminated tape with black ink is installed. |
|
|
|
|
You cannot use this function for TZe-FX**1 tape. |
|
|
*3 |
Actual character size may be smaller than maximum print height. |
- Hãng sản xuất: Brother.
- Bảo hành: Bảo hành 12 tháng tại Trung tâm bảo hành.
