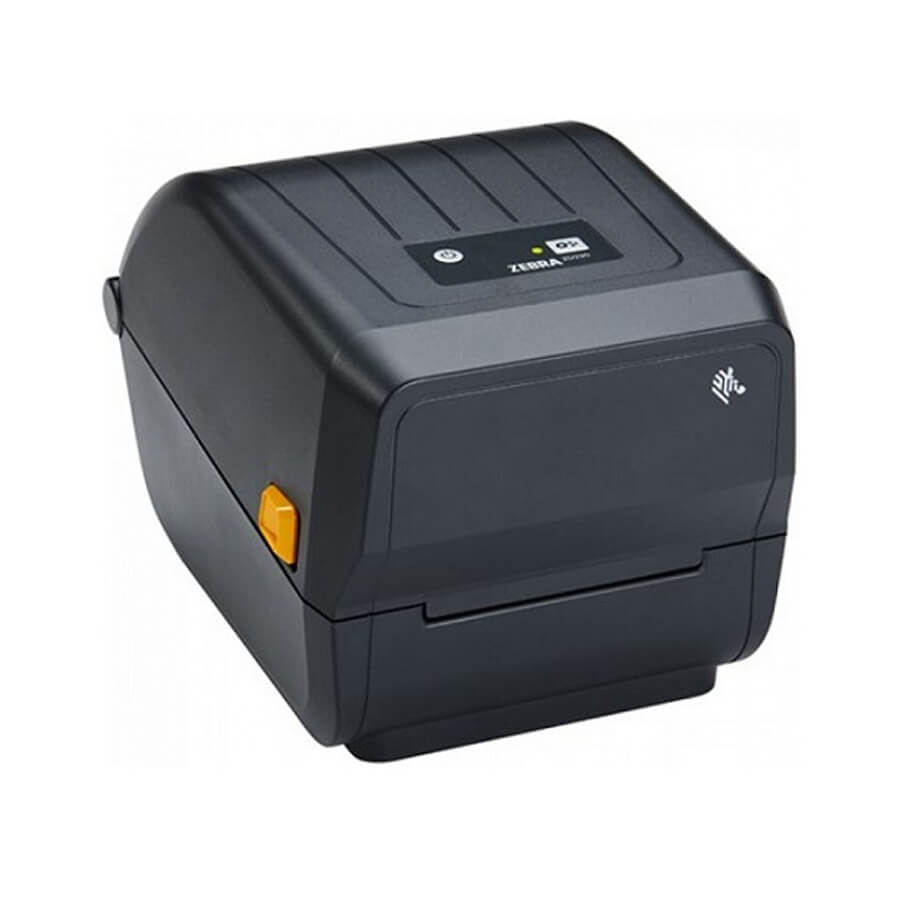

Máy in mã vạch Zebra ZD230
- Bộ nhớ: 256 MB Flash; 128 MB SDRAM.
- Tốc độ in: 6 inches/giây.
- Chiều rộng in tối đa: 104 mm.
- Độ phân giải: 203 dpi.
- Công nghệ in: In nhiệt trực tiếp/ In nhiệt qua ribbon mực.
- Dùng mực in cuộn: 110mm x 300m.
- Hỗ trợ kết nối: USB.
- Ứng dụng: Trong ngành bán lẻ, văn phòng, ngành sản xuất…
Đặc tính kỹ thuật
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed | 6 in./152 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XML |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 Meter ribbon 1 in./25.4 mm 74 Meter ribbon 0.5 in./12.7 mm |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Communication | USB |
- Bảo hành: 12 tháng.
