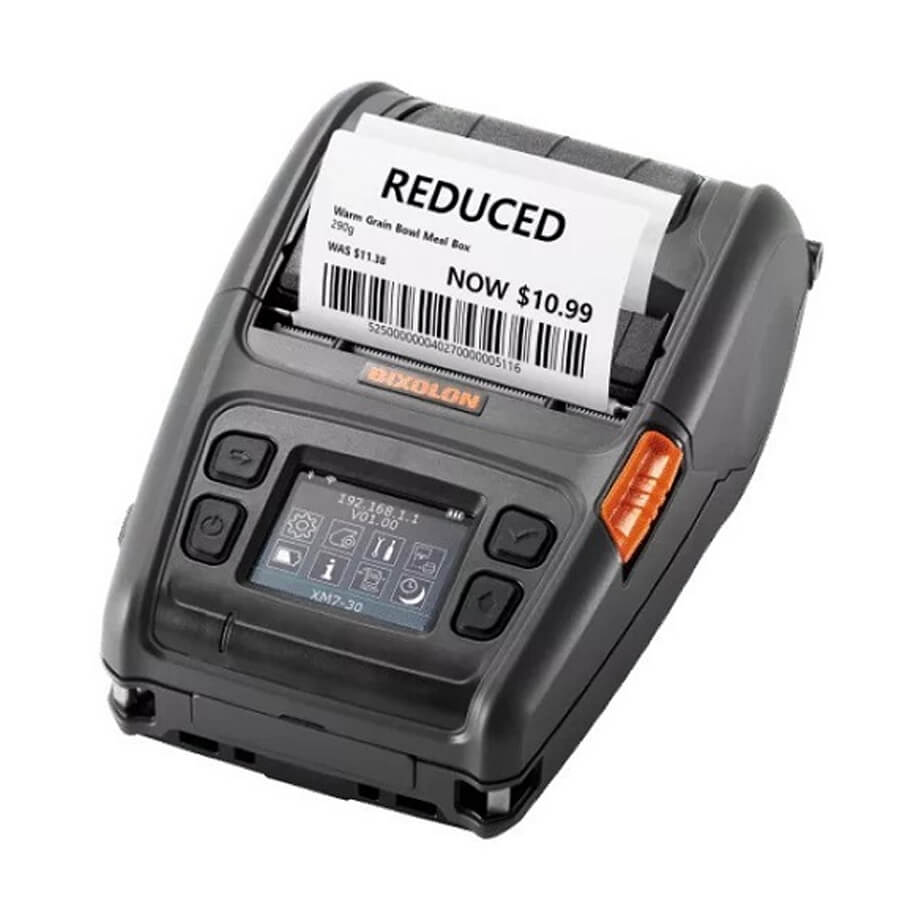

Máy in mã vạch di động BIXOLON XM7-30
- Công nghệ in: In nhiệt trực tiếp.
- Tốc độ in: 127mm/s.
- Độ phân giải: 203dpi.
- Khổ rộng in: 72mm.
- Bộ nhớ: 128MB SDRAM, 256MB Flash.
- Cổng giao tiếp: USB V2.0 HS + Serial, tùy chọn LAN/Serial/Bluetooth/Dual WLAN + Bluetooth.
- Nhiệt độ hoạt động: 15 ~ 50℃.
- Độ ẩm: 10 ~ 80% RH.
Đặc tính kỹ thuật
| Printer Specifications | |
| Print Method | Direct Thermal |
| Print Speed | Up to 5 ips (127 mm/sec - Liner, Linerless) |
| Print Resolution | 203 dpi |
| Print Width | Up to 72 mm |
| Sensing | Paper End, Gap, Black Mark, Paper Cover Open, Peel-of |
| Media Characteristics | |
| Media Type | Liner, Notch, Receipt |
| Media Width | 25 ~ 80 mm |
| Media Roll Diameter | Up to 66 mm |
| Media Thickness | 0.07 ~ 0.19 mm |
| Media Inner Core | 19 mm, 12 mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| Dimensions (W x L x H) | 119 x 180 x 79 mm |
| Weight | Including battery: 795 g (1.76 lbs.) Paper: 260 g (0.58 lbs.) |
| Electrical | EnergyStar Certified, USB Type-C Power delivery charging support 7.2 V Li-ion, 3400 mAh (Nominal) Smart Battery, Rechargeable |
| Peeler | Supported |
| Media Holder | Yes (Inner core: 19 mm) |
| Display | TFT LCD (IPS, 240 x 320 pixels) |
| Performance Characteristics | |
| Memory | 128 MB SDRAM, 256 MB Flash |
| Interface | Standard: USB V2.0 HS + Serial Optional: USB V2.0 HS + Serial + Bluetooth / WLAN / Dual (Bluetooth + WLAN) WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) - WEP40/104, WPA1/2 (PSK, EAP) Easy Bluetooth Pairing™ via NFC |
| Environment Characteristics | |
| Temperature | Operating: -15 ~ 50℃ (5 ~ 122℉) Storage: -30 ~ 70℃ (-22 ~ 158℉) |
| Humidity | Operating: 10 ~ 80% RH |
| Sealing | IP54 |
| Drop Rate | 2.1m |
| Software | |
| Emulation | SLCS, BPL-Z™, BPL-C™, BXL / POS XM7-40R (RFID): SLCS, BPL-Z™ |
| Driver / Utility | Windows Driver (Europlus/Seagull), Utility Program, Linux/Mac CUPS Driver, Virtual COM USB Driver, Label Artist-II™, Bartender UL, OPOS/JPOS Driver, SAP® Device Driver, Network Auto Installer |
| SDK / Plugin | Android/iOS/Windows SDK, Linux SDK, Chrome SDK, Xamarin SDK, Web Print SDK, Cordova Plugin |
| Application | Label Artist™ Mobile (Android, iOS), mPrint App (Android, iOS) |
| MDM (Optional) | BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android), SOTI Connect supported |
| Fonts / Graphics / Symbologies | |
| Fonts | Bitmap Fonts (10 SLCS™, 16 BPL-Z™, 7 BPL-C™), Scalable Fonts (1 SLCS™, 1 BPL-Z™), 23 Code page, Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats, layouts and logos |
| Barcode Symbologies | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB |
| 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 | |
- Bảo hành: 12 tháng.
