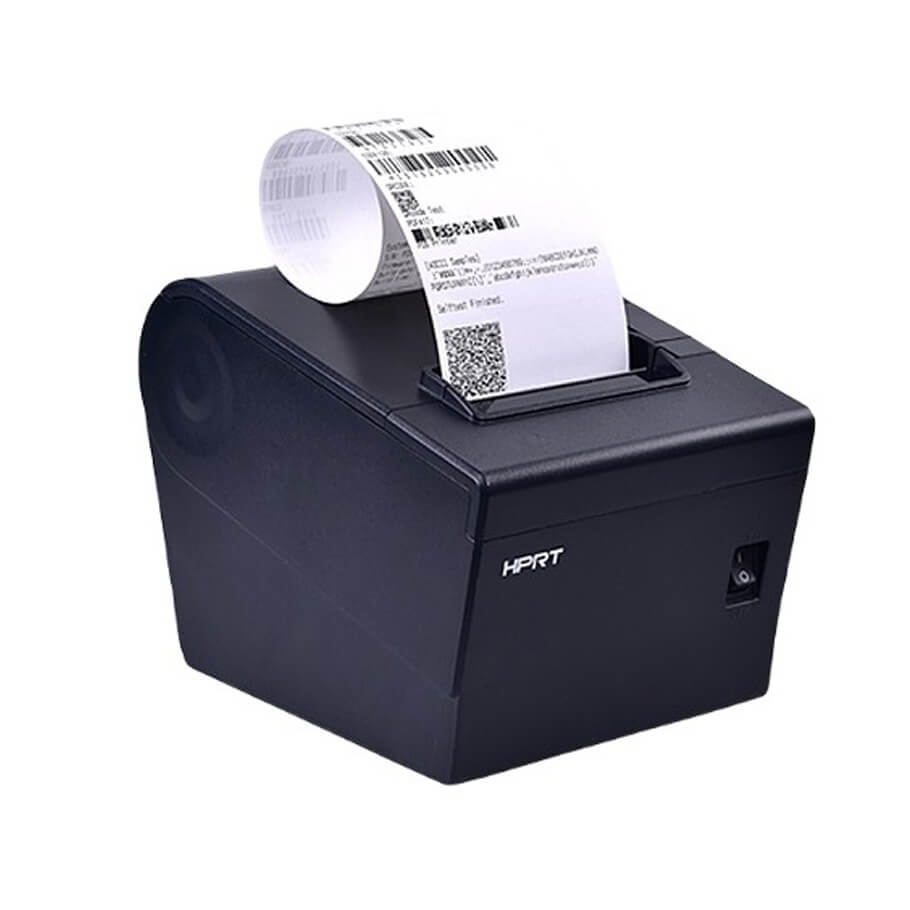

Máy in hóa đơn Bill HPRT TP806L
- Công nghệ: In nhiệt trực tiếp.
- Độ phân giải: 203dpi, 8dots/mm.
- Tốc độ in (tối đa): 250 mm/second.
- Đường kính cuộn giấy (tối đa): 83mm (±1mm).
- RAM/Flash: 2MB/4MB.
- Tự động cắt giấy: Có.
- Cổng kết nối: USB + LAN + RS232.
- Có Driver cho Macbook.
- Kích thước (L x W x H): 195 × 145 × 146 mm.
- Trọng lượng: 1.8kg.
Đặc tính kỹ thuật
| Printing | - Print Method: Direct Thermal Line Printing - Resolution: Standard 203 dpi (8 dots/mm) - Print Speed: Max.250 mm/s - Printing Width: 48 mm/72 mm |
| Interface | - Standard: USB+Serial+Ethernet |
| Page Mode | Support |
| Fonts | - Chinese: GBK 24x24dots - Alphanumeric: ASCII 9x17, 12x24dots - User-defined: Yes - Codepage: 48 |
| Barcode | - 1D: UPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93 - 2D: PDF417, QR Code |
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max.64K for per bitmap, and Max.256K for total) |
| Detection | - Sensors: Paper out detection, cover open detection |
| Memory | - RAM: 2MB - Flash: 4MB |
| LED Indicator | - Power: Green LED - Paper out: Red LED - Error: Red LED |
| Dip switch | - Hardware: No - Software: Yes |
| Power Supply | - Input: AC 100V-240V 56-60HZ - Output: DC 24V±5%, 2.5A |
| Paper | - Paper Type: Thermal Receipt Paper - Paper Width: 58mm/80mm - Paper Thickness: 0.056 ~ 0.1mm - Roll Paper Diameter: Max. 83 mm (O.D.) - Paper Load: Easy paper loading - Paper Cut: Manual tear or Auto-cutter |
| Environment | - Operation: 0 °C ~ 40 °C, 20% ~ 85% R.H - Storage: -20 °C~70 °C, 5% ~ 95% R.H |
| Physical Characteristics | - Dimension (L x W x H): 145 x 197 x 146 mm - Weight: 1.8kg |
| Reliability | - TPH life: 150 km - Cutter life: 2 million cuts |
| Software | - Emulation: ESC/POS - Driver HPRT Driver: Windows XP, Vista, 7 8, 10.Linux, Mac - SDK: WinCE, Win Mobile, Android, iOS |
- Bảo hành: 24 tháng.
