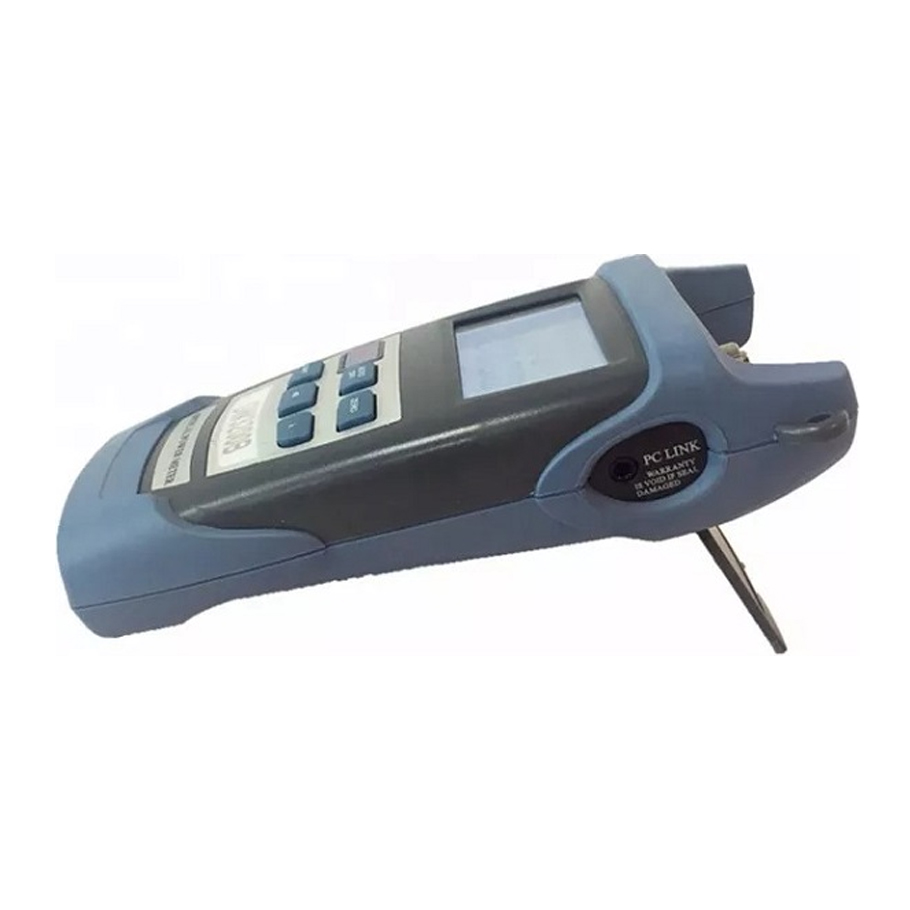

Máy đo công suất quang GW3200A

Trang Chủ >> Cáp Quang-Máy đo Quang >> Máy đo cáp quang >> Máy đo công suất quang GW3200A
Mã số:08054431
Máy đo công suất quang GW3200A

Máy đo công suất quang GW3200A

- Comfortable LCD display and optional backlight LCD display support night operation.

- Measure power in dBm or mw and insert loss in dB

- Low battery consumption, more than 240 hours of continuous operation time for three 1.5V Alkaline batteries

Specifications

Model GW3200A
Wavelength 800 ~ 1700 nm
Detector InGaAs
Measuring Range -70 ~ + 10 dBm
Uncertainty + 0.2(5%)
Wavelength Correction  850, 980, 1300, 1310, 1490, 1550, 1625 nm
Resolution  Linear 0.1% or Non-linear 0.01dBm
Optical Connection FC/ Universal 2.5mm Adapter
(FC, SC, ST interchangeable connections can be optional)
Power supply Alkaline Pin (3 pin AA 1.5V)
Battery Operation Time 240 h with 1.5V Battery (3)
Operating Temperature -10 ~ + 60°C
Storage Temperature -25 ~ + 70°C
Relative humidity 0 to 95% (non-condensing)
Dimensions 172x82x33 mm
Weight 300g

- Bảo hành: 12 tháng.

Giá: 429.000 VND

Số lượng :

Thêm vào giỏ Mua ngay
