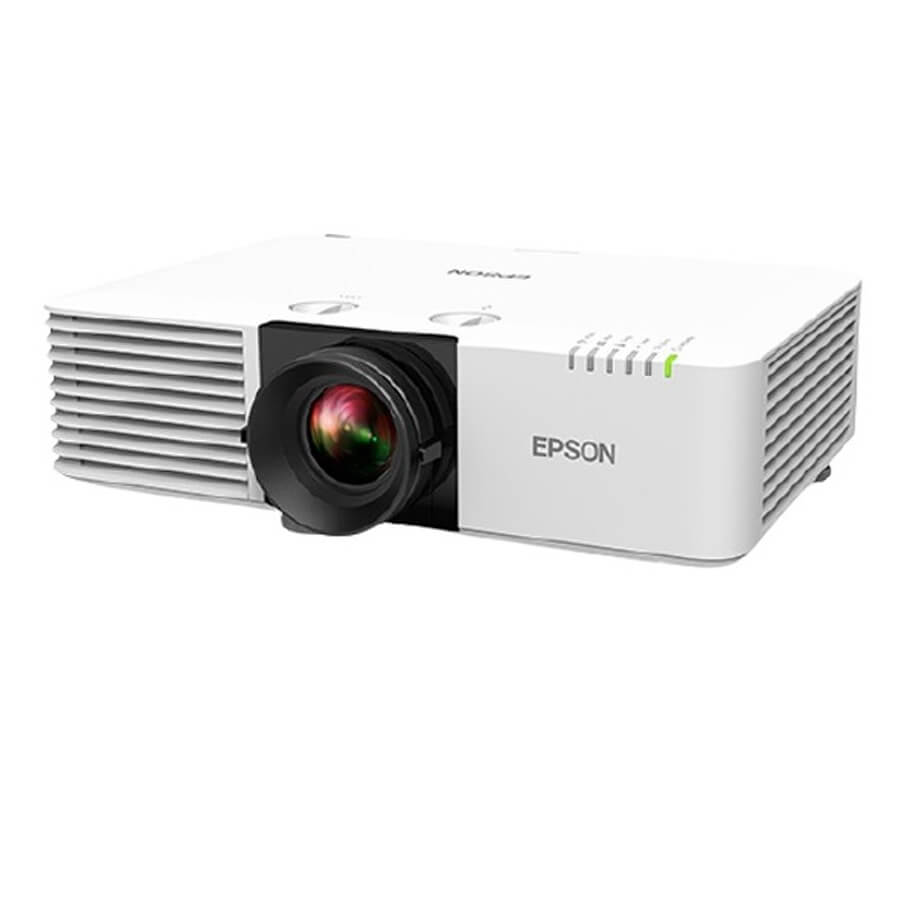

Máy chiếu EPSON EB-L630U
- Công nghệ: 3LCD.
- Độ phân giải máy chiếu: 1920 x 1200 (WUXGA).
- Độ sáng: 6200 Ansi Lumens.
- Độ tương phản: 2,500,000 : 1.
- Tuổi thọ bóng đèn: 20000 giờ, 30000 giờ chế độ Eco.
- Công suất bóng đèn: Laser Diode.
- Kích thước màn chiếu: Zoom: Wide: 50”~500”.
- Cổng kết nối: HDMI x 2, HDMI Out x 1,VGA x 2, Monitor Out: Mini D-Sub 15 pin x 1, HDBaseT x 1, Audio in: Mini Stereo x 2, Variable audio out: Mini Stereo x 1, USB connector Type-B x 1, USB connector Type-A x 1, Serial: RS-232c x 1.
- Wired LAN RJ-45 x 1.
- Wireless LAN Built-in.
Thông số kỹ thuật
| Model | EB-L630U |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Brightness | 6,200lm |
| Aspect Ratio Native | 16:10 |
| Native Resolution | WUXGA |
| Contrast Ratio | Over 2,500,000:1 |
| Type | Laser Diode |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Projection Lens | |
| Screen Throw Ratio Range | 1.35 – 2.20 (Wide - Tele) |
| Projected Distance | 50' - 500' |
| Type | Optical Zoom (Manual) / Focus (Manual) |
| F-number | 1.50 – 1.70 |
| Focal Length | 20 – 31.8 mm |
| Zoom Ratio | 1.0 - 1.60 |
| Keystone Correction | Vertical: ±30º Horizontal: ±30º |
| Connectivity | |
| Network | Wired LAN RJ45 x 1 (100Mbps) Built-in Wireless: Yes Optional Wireless: ELPAP11 |
| Interfaces | HDMI x 2, HDMI Out x 1,VGA x 2, Monitor Out: Mini D-Sub 15 pin x 1, HDBaseT x 1, Audio in: Mini Stereo x 2, Variable audio out: Mini Stereo x 1, USB connector Type-B x 1, USB connector Type-A x 1, Serial: RS-232c x 1 |
| Other feaures | |
| Power Supply Voltage | 100 ~ 240 V ±10%, 50/60 Hz AC |
| Fan Noise (Normal / Eco) | 38dB / 27dB |
| Dimensions (W x D x H) | 304 x 440 x 122 mm |
| Weight | 8.4kg |
- Bảo hành: 24 tháng đối với thân máy, 12 tháng hoặc 1000h cho bóng đèn (tùy điều kiện nào tới trước).
