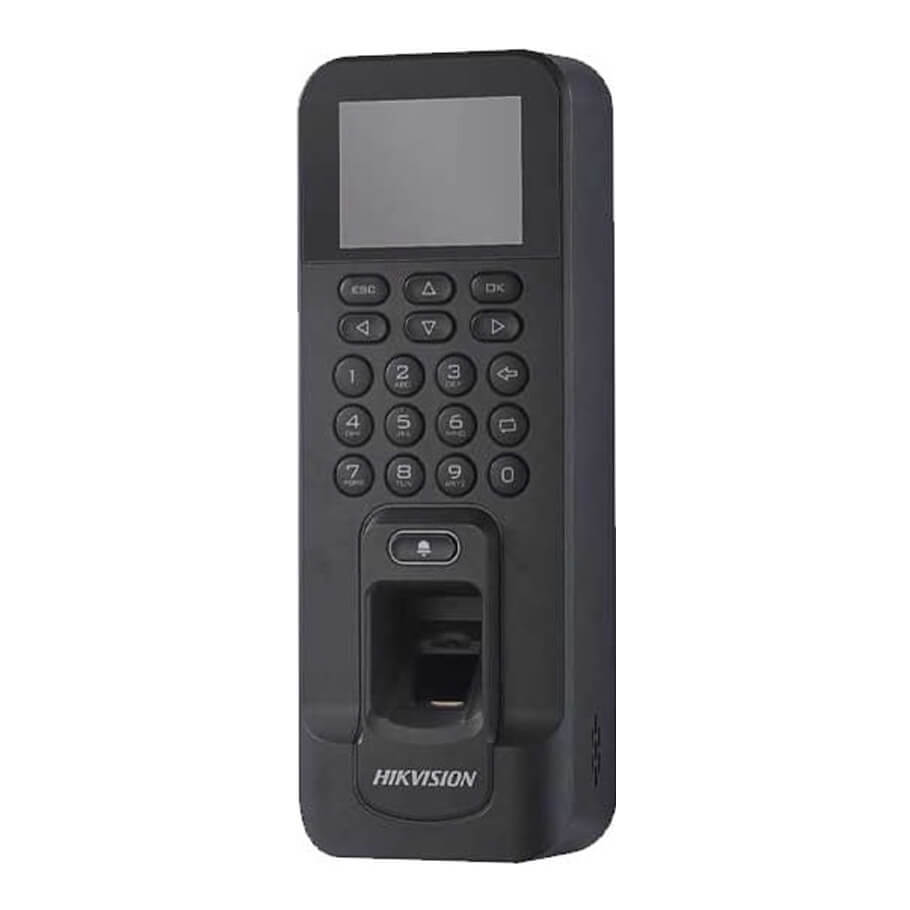

Máy chấm công, kiểm soát ra vào bằng vân tay HIKVISION SH-K1T9804AMF
- Dung lượng lưu trữ: 3000 dấu vân tay, 3000 thẻ và 100000 sự kiện.
- Tích hợp đầu đọc thẻ Mifare1.
- Giao tiếp qua TCP/IP và Wi-Fi.
- Hỗ trợ giao diện Wiegand, RS-485.
- Giao diện đầu vào và đầu ra báo động.
- Hỗ trợ ISUP5.0, ISAPI.
Thông số kỹ thuật
| Display | |
| Screen size | 2.4-inch |
| Resolution | 320 × 240 |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 1 |
| Alarm output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading distance | 0 to 4.5 cm |
| Card reading duration | < 1 s |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | |
| General | |
| Indicator | Power/status (red/green) |
| Power supply | 12 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | Black (included), gold (optional), silver (optional), white (optional) |
| Dimensions | 205 mm × 76.5 mm × 37 mm |
| Installation | Surface mounting |
- Bảo hành: 24 tháng.
