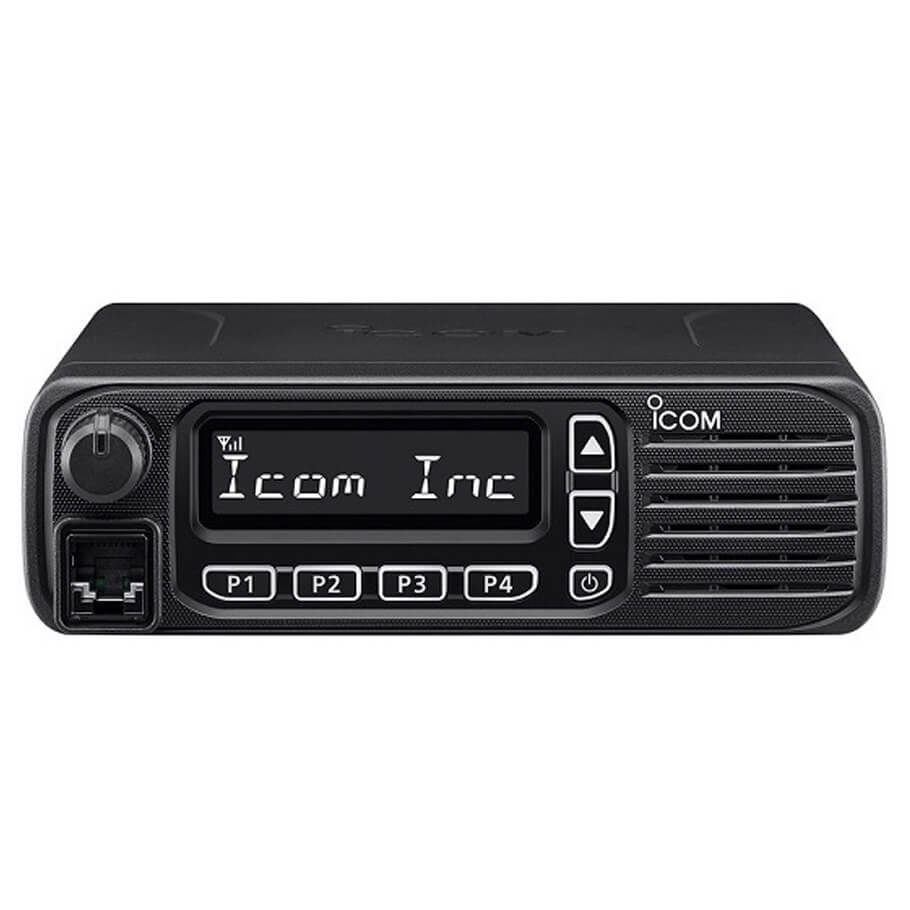

Máy bộ đàm lắp trạm và di động ICOM IC-F5130D-VHF
- Phạm vi tần số: 136-174 MHz.
- Dung lượng kênh: 128 kênh/8 vùng.
- Công suất: 50W/45W.
- Kích thước (W x H x D): 150 × 45 × 151.8 mm.
- Trọng lượng: 1.23kg.
Thông số kỹ thuật
| General | |
| Frequency coverage | 136–174 MHz |
| Number of channels | 128 channels/8 zones |
| Type of emission | USA, EXP 50 W/45 W: 16K0F3E (25 kHz)*/11K0F3E (15 kHz, 12.5 kHz)/4K00F1E, F1D (7.5 kHz, 6.25 kHz) |
| EXP 25 W: 16K0F3E (25 kHz)/14K0F3E (20 kHz)/8K50F3E (12.5 kHz)/4K00F1E, F1D (6.25 kHz) | |
| Power supply requirement | USA, EXP 50 W/45 W: 13.6 V DC nominal EXP 25 W: 13.2 V DC nominal |
| Current drain (approximate) | Tx (High): 8.6 A typ. (50 W) 4.6 A typ. (25 W) |
| Rx (Max./Standby): 0.8 A typ. / 150 mA typ. | |
| Antenna impedance | USA, EXP 50 W/45 W: 50 Ω (SO-239) EXP 25 W: 50 Ω (BNC) |
| Operating temperature range | –30 °C to +60 °C, –22 °F to +140 °F |
| Dimensions (W×H×D) (Projections not included) | 150 × 45 × 151.8 mm |
| Weight (approximate) | 1.23 kg |
| Transmitter | |
| Output power (rated) | USA, EXP 50 W/45 W: 50 W, 25 W, 5 W (Hi, L2, L1) EXP 25 W: 25 W, 10 W, 5.8 W (Hi, L2, L1) |
| Frequency stability | ±1.0ppm |
| Spurious emissions | USA, EXP 50 W/45 W: 80 dB typ. EXP 25 W: 0.08 μW (typ.) (≤ 1 GHz) 0.03 μW (typ.) (> 1 GHz) |
| Audio harmonic distortion (AF 1 kHz 40% deviation) | 0.7% typ. |
| FM Hum and Noise (without CCITT filter) | 82/77 dB typ. (W/N) |
| FSK error | 1.8% typ. |
| Receiver | |
| Sensitivity | Analog 12 dB SINAD (USA, EXP 50/45 W): 0.25 μV (–119 dBm) typ. (W) 0.22 μV (–120 dBm) typ. (N) |
| Analog 20 dB SINAD (EXP 25 W): –4.9/–4.5/–1.8 dBμV emf typ. (W/M/N) | |
| Digital 1% BER: –4.6 dBμV emf typ. | |
| Adjacent channel selectivity | USA, EXP 50 W/45 W: 83/58/73 dB typ. (W/N/D) |
| EXP 25 W: 83/82/80/73 dB typ. (W/M/N/D) | |
| Spurious response rejection | 80 dB typ. |
| Intermodulation rejection | Analog (USA, EXP 50/45 W) (EXP 25 W): 76 dB typ. 69 dB typ. |
| Digital: 74 dBμV emf typ. | |
| Hum and noise | 62/52 dB typ. (W/N) |
| AF output power | External SP: 4 W typ. (at 5% distortion, 4 Ω load) |
- Phụ kiện kèm theo: Microphone HM-152.
- Xuất xứ: Nhật Bản.
- Bảo hành: 3 năm.
