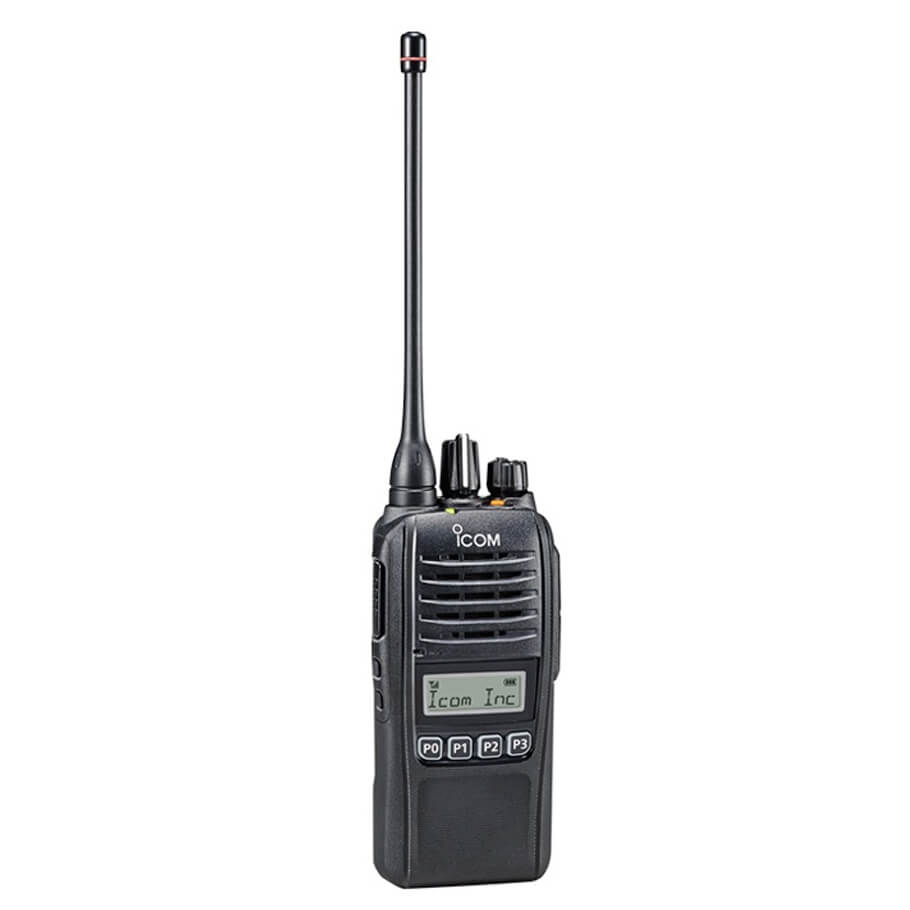

Máy bộ đàm ICOM IC-F2000-UHF (Pin BP-280)
- Dải tần hoạt động: 400–470 MHz.
- Dung lượng kênh: 16 kênh.
- Công suất hoạt động: 4W.
- Công suất âm thanh: 1500mW.
- Tiêu chuẩn chống bụi và nước: IP-67.
Thông số kỹ thuật
| General | |
| Frequency coverage | 400–470 MHz |
| Number of channels | 16 channels |
| Type of emission (* Depending on version) |
16K0F3E*1/11K0F3E (USA/EXP) 16K0F3E/14K0F3E/8K50F3E (EUR) |
| Power supply requirement | 7.5 V DC nomina |
| Current drain (approx.) | Tx: 1.3 A Rx: 500 mA/80 mA (Max. audio (internal SP)/Standby) |
| Antenna impedance | 50 Ω |
| Operating temperature range | –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP) –25°C to +55°C (Radio specifi cation) (EUR) |
| Transmitter | |
| Output power (Hi, L2, L1) | 4W, 2W, 1W |
| Maximum frequency deviation | ± 5.0 kHz (@ 25 kHz), ±4.0 kHz (@ 20 kHz), ±2.5 kHz (@ 12.5 kHz) |
| Spurious emissions | 70 dB minimum (USA/EXP 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR) |
| Frequency stability | ±2.5 ppm |
| Audio harmonic distortion | 1.0% typical (@ 25/20 kHz), 1.5% typical (@ 12.5 kHz) (at AF 1 kHz 40% deviation) |
| FM Hum and Noise (without CCITT filter) | 46 dB typical (@ 25 kHz), 40 dB typical (@ 12.5 kHz) (USA/EXP) |
| Residual modulations (with CCITT filter) | 53 dB typical (@ 25 kHz), 51 dB typical (@ 20 kHz), 48dB typical (@ 12.5 kHz) (EUR) |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10)/2.2 kΩ |
| Receiver | |
| Sensitivity | 0.25 μV typical (at 12 dB SINAD) –4 dBμV typical emf (at 20 dB SINAD) |
| Adjacent channel selectivity | 73 dB typical (@ 25 kHz), 56 dB typical (@ 12.5 kHz) (TIA-603D) 74 dB typical (@ 25 kHz), 64 dB typical (@ 12.5 kHz) (TIA-603A) 73 dB typ. (@ 25 kHz), 73 dB typ. (@ 20 kHz), 56 dB typ. (@ 12.5 kHz) (EUR) |
| Spurious response rejection | 70 dB minimum |
| Intermodulation rejection | 73dB typical (USA/EXP) 67dB typical (EUR) |
| Hum and noise | With CCITT filter: 49 dB typical (@ 25 kHz), 43 dB typical (@ 12.5 kHz) (USA/EXP) Without CCITT filter: 52 dB typical (@ 25 kHz), 50 dB typical (@ 20 kHz), 47 dB typical (@ 12.5 kHz) (EUR) |
| AF output power (at 5% distortion) | Internal SP: 1500 mW typical (With 8 Ω load) External SP: 400 mW typical (With 8 Ω load) |
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8)/8 Ω |
| Ingress Protection Standard | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
- Phụ kiện gồm:
+ Pin BP-280 Li-ion 2280mAh;
+ Bộ sạc nhanh để bàn BC-213;
+ Anten, bát cài.
- Sản xuất tại Nhật Bản.
- Bảo hành: 36 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
