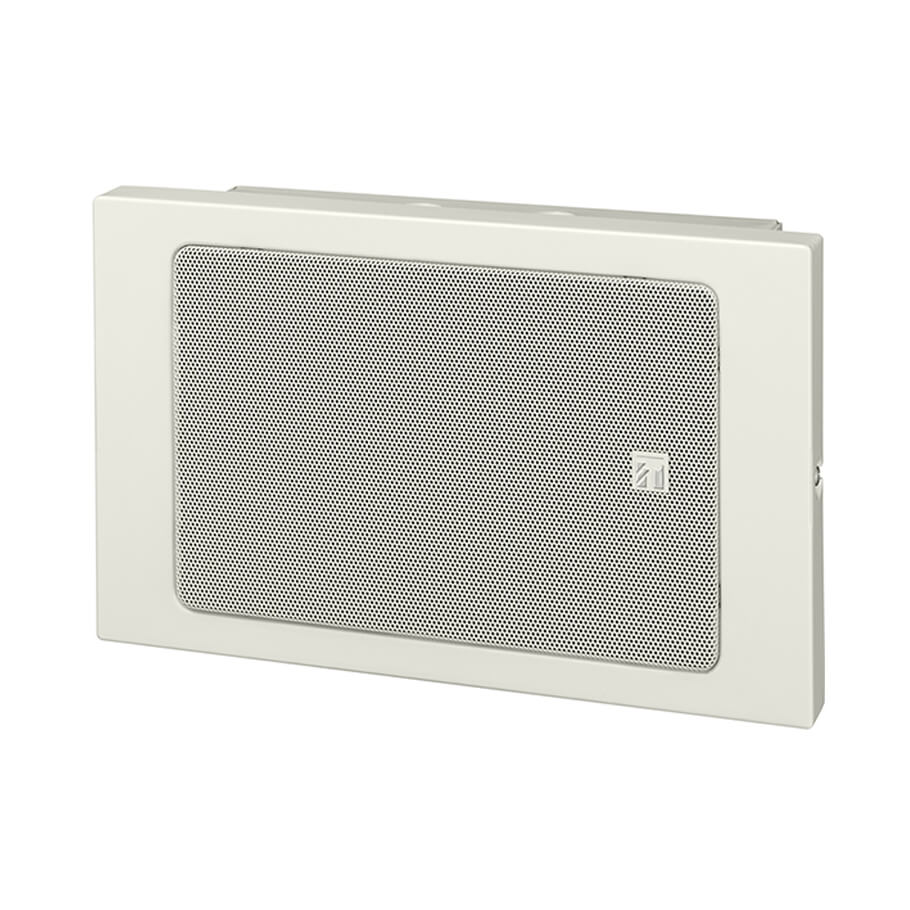

0916 287 068 Loa hộp 6W TOA BS-680F
Loa hộp 6W TOA BS-680F
-Loa hộp treo tường TOA BS-680F sử dụng lý tưởng cho việc thông báo và phát nhạc BGM.
-Có thể lắp đặt theo chiều ngang/chiều dọc.
-Thao tác lắp đặt nhanh chóng và dễ dàng.
-Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system. Can be surface- or flush- mounted to the wall.
-Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection.
-The speaker structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to.
-The input impedance can be easily changed by changing the tap position of the transformer.
-The built-in 16 cm double cone speaker unit delivers high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring.
Đặc tính kỹ thuật
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) |
| 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) | |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 150 Hz - 20 kHz (peak -20 dB) |
| Speaker Component | 16 cm (6') double cone-type |
| Applicable Cable | Solid wire: φ0.8 - φ1.6 mm (AWG 20 - 14) |
| 7-core twisted wire: 0.75 - 1.25 m㎡ (AWG 18 - 16) | |
| Connection | Push-in connector (bridging terminal) |
| Finish | Baffle, Cabinet: Steel plate, off-white (RAL 9010 or equivalent color), paint |
| Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint | |
| Dimensions | 310 (W) x 190 (H) x 90 (D) mm (12.2' x 7.48' x 3.54') |
| Weight | 2.6 kg (5.73 lb) |
| Accessory | Rubber grommet …2, Speaker mounting screw (4 x 16) …4 |
-Sản xuất tại Indonesia.
-Bảo hành: 12 tháng.
