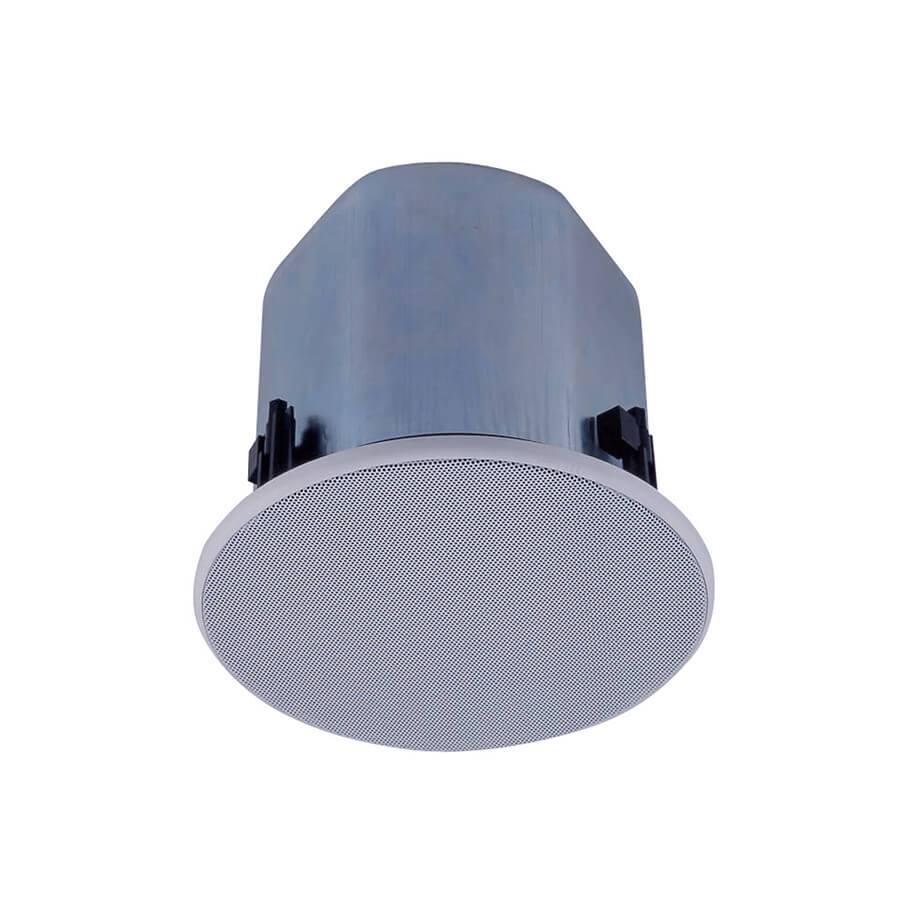

Loa gắn trần 30W TOA F-2322C

Trang Chủ >> Âm thanh thông báo >> Âm thanh TOA >> Loa gắn trần 30W TOA F-2322C
Mã số:23020757
Loa gắn trần 30W TOA F-2322C

Loa gắn trần 30W TOA F-2322C

- Loa gắn trần tán rộng TOA F-2322C được thiết kế nhỏ, mặt nghiêng nhỏ phù hợp với trần.

- Sử dụng dễ dàng và hiệu quả hơn với lớp lưới của mặt loa làm bằng kim loại.

- Có thể dễ dàng lắp đặt loa lên trần, tường.

- Kích thước: φ230 × 200 (D) mm

- Trọng lượng: 3.7kg.

Specifications

Model F-2322C
Enclosure Bass reflex type
Rated Input 30 W (High Impedance)
Power Handling Capacity Continuous pink noise: 60W (8Ω), 30W (16Ω)
Continuous program: 120W (8Ω), 60W (16Ω)
Sound Pressure Level 90 dB (1W, 1m)
Frequency Response 70Hz - 20kHz (-10 dB), 50Hz - 20kHz (-20dB) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
Speaker Component 12 cm cone-type
Mounting Hole φ200 mm (Maximum ceiling thickness: 37 mm)
Input Terminal Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Usable Cable Solid copper wire: φ0.5 - φ1.6 mm (equivalent to AWG No. 24 - 14)
Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14)
Finish Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dimensions φ230 × 200 (D) mm
Weight 3.7kg

- Sản xuất tại Indonesia.

- Bảo hành: 12 tháng.



Giá: 1.963.000 VND (Đã bao gồm VAT)
