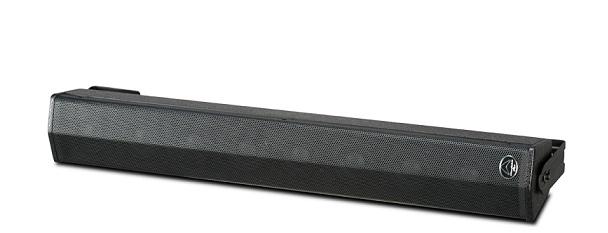

Loa Full Range WHARFEDALE PRO SIGMA V8
- Using true line array technology our SIGMA V8 column array is perfect for sound reinforcement installations where discreet aesthetics, high coverage angles and SPL are critical. SIGMA V8 uses 8x3 inch full range transducers for warm lows and crystal clear highs. Optimised transducer alignment delivers minimal anti-aliasing effects and maximum phase alignment.
Key Features
- 300W RMS/ 600W Program/ 1200W Peak.
- 128dB Max SPL.
- 150Hz – 20kHz frequency response.
- Discreet and unobtrusive design.
- 8 x 3-inch full range transducers.
- 160° horizontal dispersion.
- Mounting bracket hardware is included.
- 7 models available in black or white in the SIGMA range for maximum flexibility.
- Color: Black.
Specifications
| Model | SIGMA V8 |
| System Type | Passive |
| Configuration | Full Range |
| Frequency Response (+/-3dB) | 130Hz - 17kHz |
| Frequency Range (-10 dB) | 150Hz - 20kHz |
| Sensitivity (2.83v/1m) | 97dB |
| Calculated Maximum SPL @1m | 128dB |
| System Rated Impedance | 8Ω |
| Transducer | |
| Size | 8 x 75mm/ 3-inch |
| Voice-Coil Size | 33mm/ 1.3-inch |
| Rated Impedance | 4Ω |
| Power (re:AES2-2012) | 40W |
| Nominal Coverage (H x V) | 160° x 30° |
| Power | |
| System Continuous Power | 300W |
| System Programme Power | 600W |
| System Peak Power | 1200W |
| Input Connector | 1 x NL4 (speakON compatible) |
| Hardware | Bracket (included) |
| Enclosure | |
| Enclosure Material | 12mm MDF |
| Finish | Black or white |
| Grille Material & Finish | 1.2mm steel, painted |
| Dimensions - Unpacked | |
| Height | 805mm/ 32-inch |
| Width Front | 116mm/ 4.6-inch |
| Width Rear | 85mm/ 3.3-inch |
| Depth | 115mm/ 4.5-inch |
| Dimensions - Packed | |
| Height | 880mm/ 34.5-inch |
| Width Front | 220mm/ 8.7-inch |
| Width Rear | 220mm/ 8.7-inch |
| Depth | 220mm/ 8.7-inch |
| Weight | |
| Net Weight (kg/ lbs) | 5.6kg/ 12.32lbs |
| Gross Weight (kg/ lbs) | 6.6kg/ 14.2lbs |
- Bảo hành: 12 tháng.
