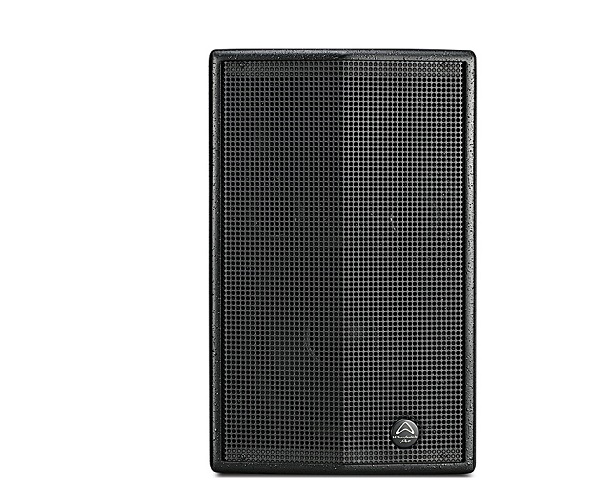

Loa 2 đường tiếng WHARFEDALE PRO SIGMA-X12
- With its discreet and unobtrusive design SIGMA-X12 features the latest proprietary Wharfedale Pro driver technology. In addition, SIGMA-X12 uses a newly developed angled corner port system so that the dimensions have been reduced without compromising the overall sound quality. Available in black or white and with comprehensive rigging options SIGMA-12 and the new SIGMA SERIES is already a versatile and favourite choice for installers.
Key Features
- 300W RMS/ 600W Program/ 1200W Peak.
- 129dB Max SPL.
- 60Hz – 20kHz frequency response.
- Discreet and unobtrusive design.
- Newly developed angled corner port system to reduce dimensions.
- Multiple M8 rigging points and a 35mm speaker pole mount for easy installation.
- Crossovers tailored for vocal intelligibility.
- Chip resistant Rhino Rock paint.
- High performance HF driver with aluminium rear cover for maximum heat dissipation.
- Double roll surround LF driver for stability and power.
- 2.5-inch voice coil.
- 5 models available in black or white in the range for maximum flexibility.
- Color: Black.
- Unit: Pair.
Specifications
| Model | SIGMA-X12 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3dB) | 55Hz-18kHz |
| Frequency Range (-10 dB) | 60Hz-20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 129dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 305mm/ 12-inch |
| Voice-Coil Size | 64mm/ 2.5-inch |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 300W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 44mm/ 1.75-inch |
| Exit Size | 1-inch |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 40W |
| Nominal Coverage (H x V) | 90° x 60° |
| Power | |
| System Continuous Power | 300W |
| System Programme Power | 600W |
| System Peak Power | 1200W |
| Crossover frequency | 2.2kHz |
| Input Connector | 2 x NL4 (speakON compatible) |
| Hardware | Dual-angle (0° or 10°) 35mm pole socket M8 x 5 2 handles on sides |
| Enclosure | |
| Enclosure Material | 15mm MDF |
| Finish | Black or white |
| Grille Material & Finish | 1.2mm steel, painted |
| Dimensions - Unpacked | |
| Height | 537mm/ 21-inch |
| Width Front | 354mm/ 14-inch |
| Width Rear | 218mm/ 8-inch |
| Depth | 359mm/ 14-inch |
| Dimensions - Packed | |
| Height | 625mm/ 24.6-inch |
| Width Front | 468mm/ 18.4-inch |
| Width Rear | 260mm/ 10.2-inch |
| Depth | 404mm/ 15.9-inch |
| Weight | |
| Net Weight | 18.2kg/ 40lbs |
| Gross Weight | 20.9kg / 45lbs |
- Bảo hành: 12 tháng.
