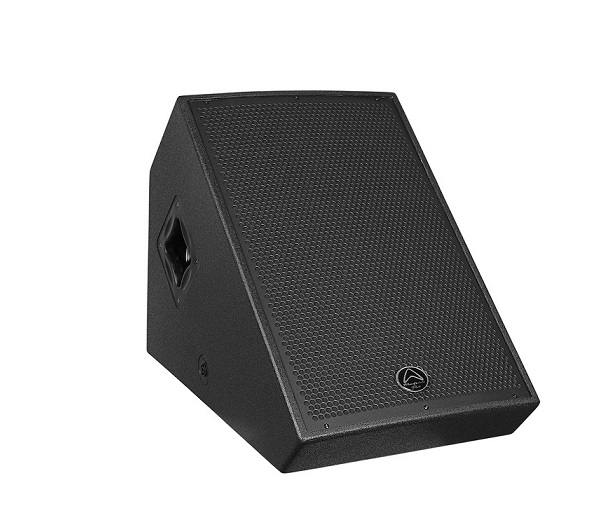

Loa 2 đường tiếng WHARFEDALE PRO DELTA-X15M
- Delta X builds on the global success of the Wharfedale Pro Delta series. Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new DELTA-X15M is instantly recognisable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design however is not the only improvement the engineering team have made.
- Internally Delta X15M has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.
- With panel switching, Delta X15M can operate in either Bi-Amp or Passive modes. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.
Key Features
- 15-inch Floor monitor.
- 3-inch LF voice coil.
- 131dB Max SPL.
- Birch plywood construction.
- Premium Rhino Rock paint.
- 8Ω impedance.
- 500W continuous.
- 1000W programme.
- 2000W peak.
- 2 carry handles.
- Bi-amp and Passive modes.
- Color: Black.
Specifications
| Model | DELTA-X15M |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3dB) | 55-20kHz |
| Frequency Range (-10 dB) | 50-20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 131dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 404mm/ 15-inch Paper |
| Voice Coil Size | 77.1mm/ 3-inch |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 50.8mm/ 2-inch Titanium |
| Exit Size | 35.6mm/ 1.4-inch |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 500W |
| System Programme Power | 1000W |
| System Peak Power | 2000W |
| Crossover frequency | 1.8kHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions - Unpacked | |
| Height | 493(SITU)mm/ 19.4-inch |
| Width Front | 446mm/ 17.6-inch |
| Width Rear | 446mm/ 17.6-inch |
| Depth | 685mm/ 27.0-inch |
| Dimensions - Packed | |
| Height | 518mm/ 20.4-inch |
| Width Front | 757mm/ 29.8-inch |
| Width Rear | 757mm/ 29.8-inch |
| Depth | 565mm/ 22.2-inch |
| Weight | |
| Net Weight (kg/ lbs) | 27.24kg/ 59.9lbs |
| Gross Weight (kg/ lbs) | 33.96kg/ 74.7lbs |
- Bảo hành: 12 tháng.
