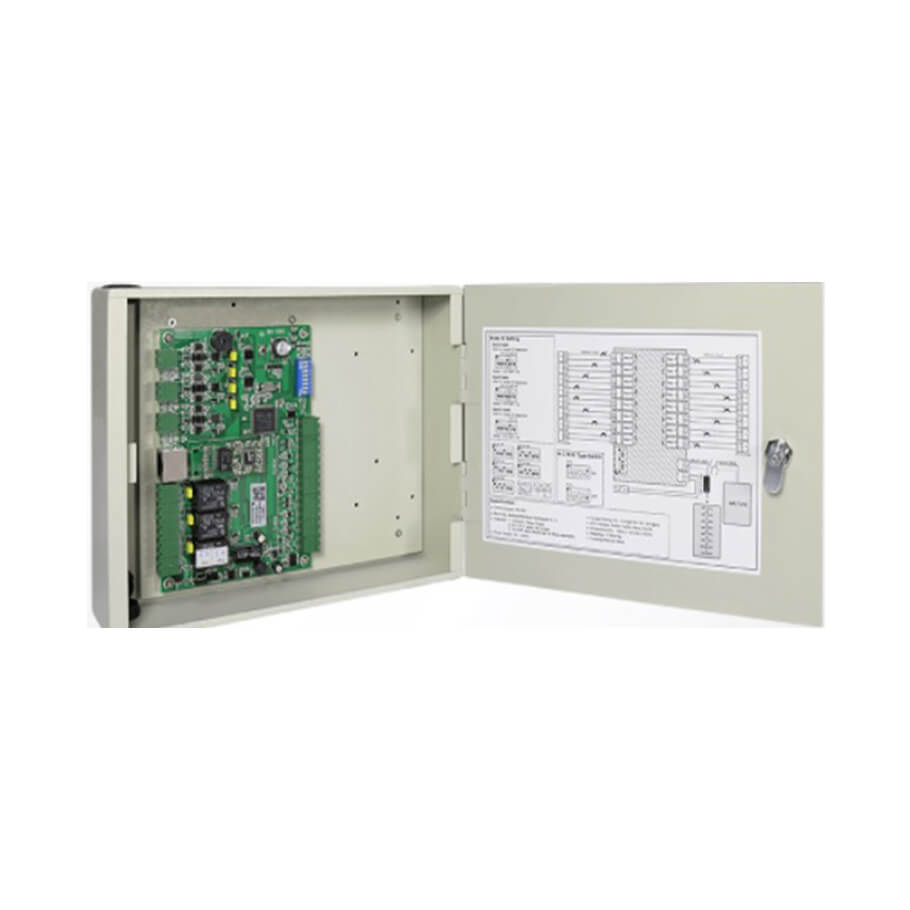

Hệ thống kiểm soát vào ra chấm công thẻ vân tay SOYAL AR-716-E16
- Hệ thống kiểm soát trung tâm 14 cửa + 2 Wiegand Port.
- Bộ nhớ trong quản lý 16.000 thẻ, lưu trữ 32.000 giao dịch khi Off-Line.
- Hỗ trợ 63 TimeZone.
Features
- Support alarm output When device is disconnected.
- 2xWG Engress DI+2 WG Door Sensor DI+1 DI support Open All Doors function in case of emergency.
- Data and timer can be kept for 60 days after power down.
- Built-in power and data transmission LED indicators for debugging and status.
- Each user can be set to allow to enter/exit assigned doors with 16 sets anti-pass-back function.
- Alternative door group control selection: cluster door group or individual door group.
- With 3 relay outputs.
- Supports Wiegand and RS-485 reader interfaces, for 14+2 door control (two RS-485 ports for 14 RS485 readers, two WG ports for 2 WG readers).
- AR-716-E16 is built with network card, for connecting to LAN or internet.
Đặc tính kỹ thuật
| Model | AR-716-E16 |
| User Capacity | 16.000 users |
| 32.000 users (by order) | |
| 65.000 users (by order) | |
| Communication Interface-CH (Slave) | CH1 (RS485): 6 or 8 Readers |
| CH2 (RS485): 8 Readers | |
| WG: 2 Readers | |
| Frequency | No |
| Installation Environment | No |
| Input | Digital Input: 2 Egress (R.T.E)/ 2 Door contact/ 1 Fire Alarm |
| Output | Relay Output: 2 Lock Relay/ 1 Alarm Relay |
| Fingerprint Template | No |
| Floor Capacity | No |
| Time-Attendance | Yes |
| Dimension | Metal Box: 180 x 231 x 62mm |
| Plastic Base Panel: 130 x 175 x 32mm | |
| PCB: 110 x 132 x 20mm | |
| Weight | Metal Box: 1.754 ±10 |
| Plastic Base Panel: 244±10 | |
| PCB: 164±10 |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
