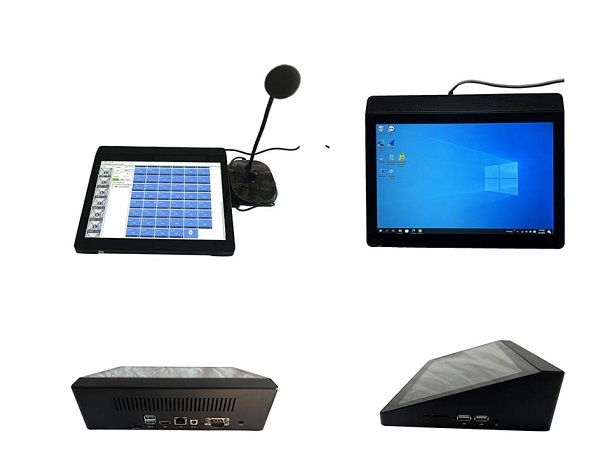

Hệ thống âm thanh IP Tonmind PA PA100
- Hệ thống âm thanh IP Tonmind PA PA100 bao gồm phần mềm và phần cứng.
- Hệ điều hành: Windows 10.
- Màn hình: Màn hình cảm ứng 13.25in 800x1280 IPS.
- Bộ xử lý: Intel Apollo Lake (1.10Ghz ~ 2.20 GHz).
- Card đồ họa: Intel HD Graphics500.
- Storage: 64GB eMMC.
- Tích hợp sẵn: 2x USB2.0, 2xUSB3.0, 1x RS-232, 1xHDMI, 1xMicro SD, 1xMicrophone, 1x RJ45 Ethernet 10/100/1000Mbps, 5G & 2.4GWi-Fi, Bluetooth 4.1.
- Software: Network remote wake-up, remote installation, clock timing boot.
- Nguồn cấp: 12V/2A.
- Nhiệt độ hoạt động: -10ºC ~ 55ºC.
Đặc tính kỹ thuật
| Hardware Specification | |
| Operating system | Windows 10 |
| Display | 13.25in 800 x 1280 IPS |
| Processor | Intel Apollo Lake Processor (1.10Ghz ~ 2.20 GHz) |
| Graphic card | Intel HD Graphics500 |
| Memory | 4GB DDR |
| Storage | 64GB eMMC |
| Connectors | 2xUSB2.0, 2xUSB3.0, 1x RS-232, 1xHDMI, 1xMicro SD, 1xMicrophone, 1x RJ45 Ethernet |
| Software | Network remote wake-up, remote installation, clock timing boot |
| LAN | RJ-45 1000Mbps |
| Wireless | 5G&2.4GWi-Fi, Bluetooth 4.1 |
| Power supply | 12V/2A |
| Operating conditions | -10 ºC~ 55ºC |
| Dimensions | 244 x 184.2 x 65 mm |
| Weight | 0.9kg |
| Included accessories | Power adapter, microphone |
| Software Specification | |
| System size | 100 zones and 100 SIP extension |
| Support | SIP paging, Sip Trunk and RTP Multicast |
| Compatible products | Standard SIP protocol devices like SIP-01, SIP-11, SIP-21, SIP-T20 and other SIP devices |
| Function | Zones, Contents, Rings, Scheduling, Volume |
| Languages | English (can add if need others) |
| Audio streaming | PCMU, G.711 u-Law (8kHz, 64kbps) PCMA, G.711 a-Law (8kHz, 64kbps) G.722 ADPCM (16kHz, 64kbps) Linear PCM 16 bit Stereo (44.1kHz, 1.4Mbps) Linear PCM 16 bit Mono (44.1kHz, 705.6kbps) OPUS 48kHz 64kbps |
| Audio decoding | OPUS, G722, GSM, PCMU, PCMA |
| Audio VoIP | OPUS, G711U, G711A, GSM, MP3 |
| Streaming | Live microphone, various music players like spotify, local music, internet radio by URL |
| Solution Cases | Various PA System. For instance, School PA System, Office PA System, Hotel PA System, Hospital PA System, Commercial Building PA System |
- Bảo hành: 12 tháng.
