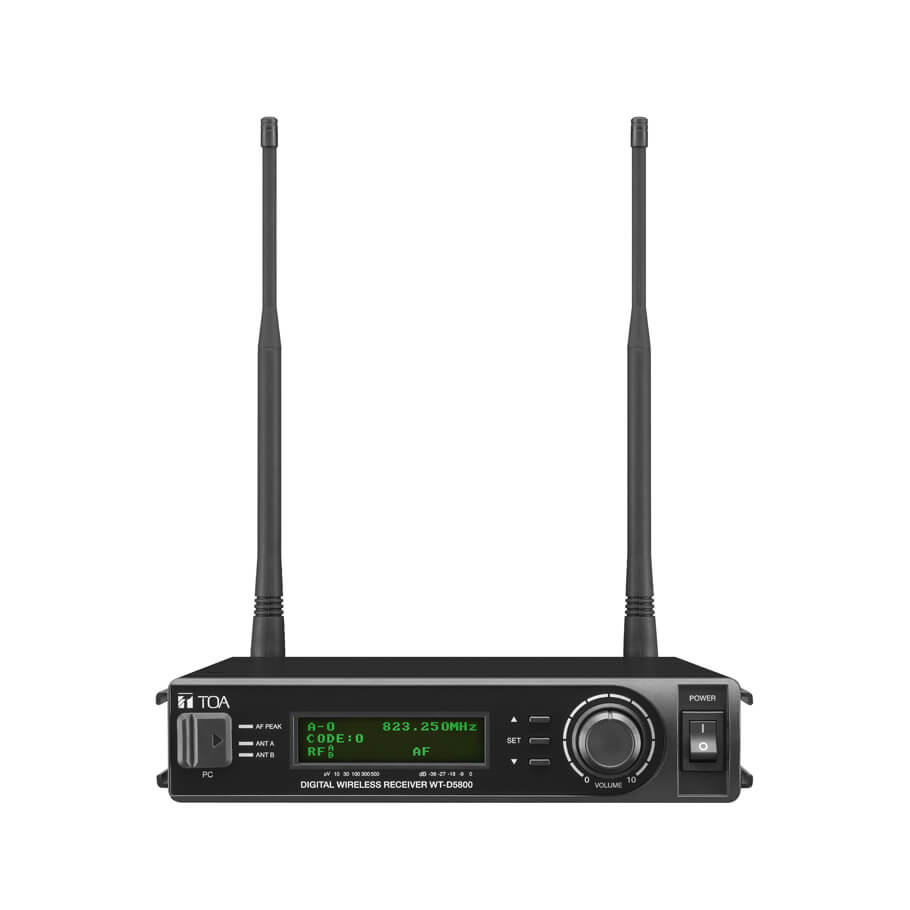

Digital Wireless Receiver TOA WT-D5800
- Frequency channel scan.
- Feedback suppression.
- Built-in optimized preset equalization in microphones.
- Detachable antenna.
- Audio mixing with cascading voice input connectivity.
- Antenna mixing with cascading antenna connectivity.
- Intuitive LCD display.
Specifications
| Model | WT-D5800 |
| Power Source | AC mains (supplied AC adapter must be used) |
| Current Consumption | 350 mA (13.5 V) |
| Receiving Frequency | 606 - 636 MHz, 794 - 806 MHz or 794 - 832 MHz |
| Channel Selectable | 160 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity (digital diversity) |
| Mixing Output | MIC/LINE (selectable): –60 dB (MIC)/–20 dB (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input | –20 dB, 10 kΩ, unbalanced, phone jack |
| Antenna Input | 75Ω, BNC (phantom powering for antenna), 9 VDC, 30 mA (max) |
| Antenna Output | 75 Ω, BNC (Gain 0dB) |
| Contact Output | 1 channel, no-voltage make contact output, withstand voltage: 30 V DC, control current 0.5 A max, terminal block (2 pins) |
| Receiving Sensitivity | 24 dBμV or less (Bit error rate: 1E-5 or less) |
| Antenna Input Attenuator | 0 dB / –10 dB switchable |
| Indicator | Audio (5 steps), RF (5 steps), ANT A/B, Audio (peak), Battery alarm |
| Frequency Response | 50 Hz - 12 kHz |
| Total Harmonic Distortion | 0.5 % or less |
| Function | Frequencies scanning, Feedback suppressor, Equalizer (optimizing each compatible microphone) |
| ID Selectable | 10 patterns |
| Finish | Resin, black |
| Dimension | 210 (W) × 44 (H) × 211.9 (D) mm |
| Weight | 730g |
| Option | Rack mounting bracket kit: MB- WT3 (for rack mounting one WT-D5800 unit), MB- WT4 (for rack mounting two WT-D5800 units) |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
