Digital Time Switches THEBEN TR 611 top3

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Digital Time Switches THEBEN TR 611 top3
Mã số:13148823

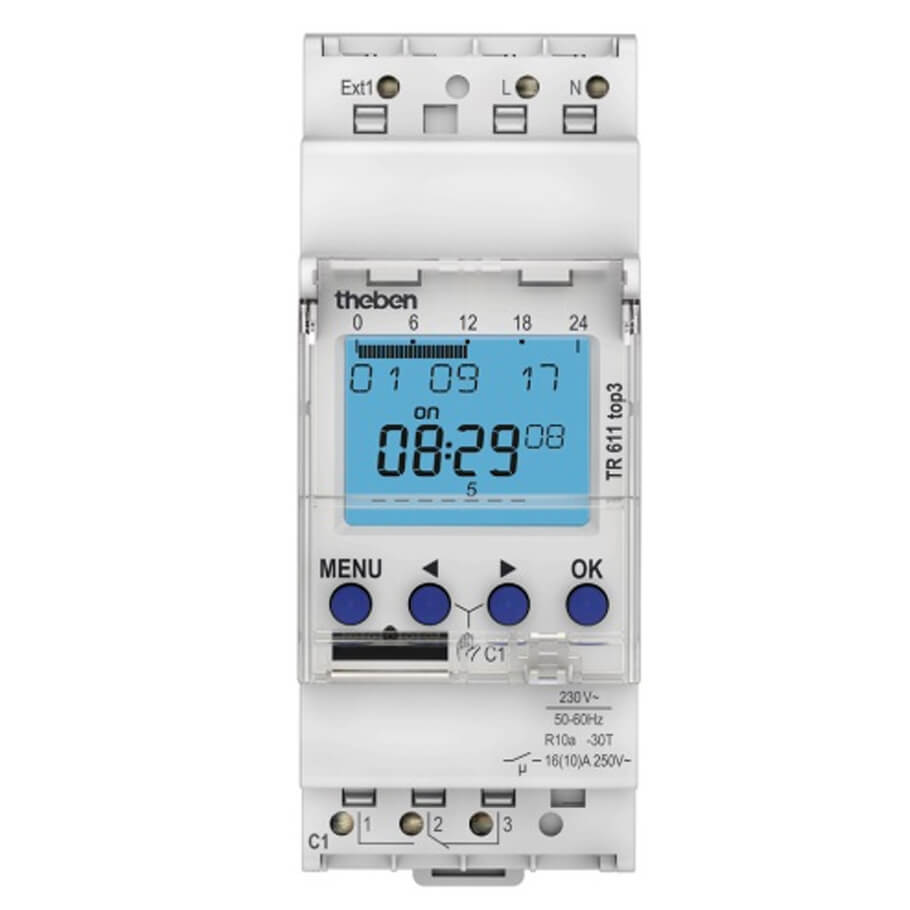

Digital Time Switches THEBEN TR 611 top3

Digital Time Switches THEBEN TR 611 top3

- Part Number: 6110130.

- Digital time switch with weekly program.

- 1 channel.

- Programming by app possible.

- Safe transfer via optional Bluetooth Low Energy OBELISK top3.

- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.

- 100% compatible with top2 (When transferring the switching programs via OBELISK to the PC, the OBELISK software as of V3.8.3.4 must be installed).

- 3 special programs (small annual program).

- External input.

- Connectable sensors (external selector switch, sequence timer).

- Connectable switches (ON or OFF permanent switching).

- DuoFix spring terminals:

   + For 2 conductors each.

   + Wire or strand (with or without wire end sleeve).

   + Wire diameter: 0.5 - 2.5 mm².

   + Button for releasing plug-in connection.

- Text-oriented user guidance in display:

   + Preset date and time.

   + Fully operable without mains connection.

- 84 memory locations.

- Interface for OBELISK top2 memory card (PC programming).

   + 2. insertable switching program.

   + Copying programs.

   + Storing programs.

- 10 year power reserve (lithium battery).

- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices).

- ON-OFF switching times.

- Pulse program.

- Cycle program.

- Switching preselection.

- Permanent switching ON/OFF.

- Timer countdown.

- Integrated operating hour counter.

   + Reset option.

   + Service function for monitoring maintenance intervals.

- Holiday program.

- 2 random programs.

- Display back light (can be turned off).

- Permanent switching ON/OFF.

- PIN coding.

- Automatic summer/winter time changeover.

   + can be deactivated.

   + Date rule options are already stored for Europe, the USA and other countries.

   + own date rule options or changeover around set dates are available.

Đặc tính kỹ thuật

Model TR 611 top3
Operating voltage 230 VAC
Frequency 50 – 60 Hz
Width 2 modules
Installation type DIN rail
Type of contact Changeover contact
Switching output Phase-independent
Opening width < 3 mm
Program Weekly program
Program functions ON-OFF, Pulse, Cycle
Number of channels 1
External inputs 1
Number of memory locations 84
Power reserve 10 years
Switching capacity at 250 V AC, cos φ=1 16 A
Switching capacity at 250 V AC, cos φ=0,6 10 A
Incandescent/halogen lamp load 230 V 2600 W
Energy saving lamps 230 V 1100 W
LED lamp < 2 W 50 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Inrush current max. 800 A / 200 µs
Switching capacity min. ca. 10 mA
Shortest switching times 1 s
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
Time basis Quartz
Stand-by consumption ~0,4 W
Type of connection DuoFix spring terminals
Keyboards 4 touch buttons
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -30 °C … +60 °C

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.

Giá: 2.340.000 VND
