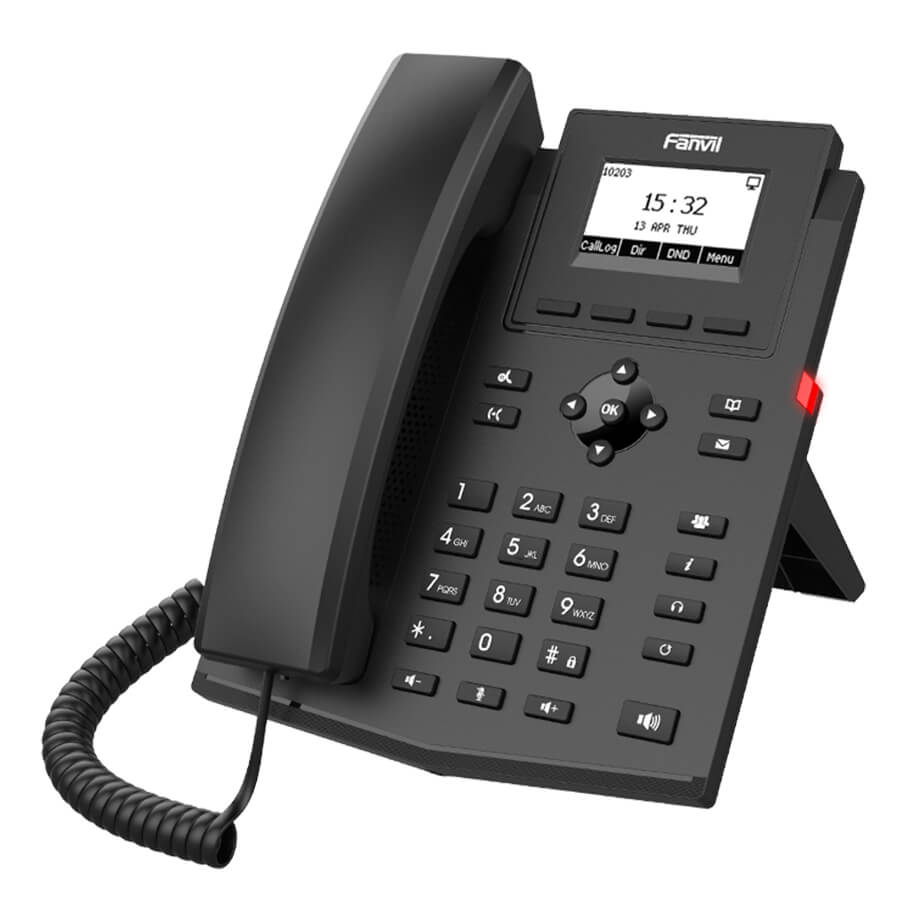

Điện thoại IP Wifi Fanvil X301W
- Điện thoại IP Wifi màn hình ma trận điểm 2.3 inch 128x48 pixel.
- Hỗ trợ 2 tài khoản SIP.
- Danh bạ 1000 số.
- Hỗ trợ Wifi 2 băng tần 2.4/5Ghz.
Đặc tính kỹ thuật
| Generic | - 2 SIP Lines - HD Voice - PoE Enabled(optional) - Built-in dual-band 2.4GHz & 5GHz Wi-Fi - Dot-matrix display screen - Handset/ Hands-free/ Headset mode - Desktop Stand/ Wall mountable (optional) - External Power Supply |
| Phone Functions | - Local Phonebook (1000 entries) - Remote Phonebook (XML/LDAP, 1000 entries) - Call logs (In/Out/Missed, 600 entries) - Blocked List/Allowed List - Voice Message Waiting Indication (VMWI) - Programmable DSS/Soft keys - Network Time Synchronization - Built-in dual-band Wi-Fi + 2.4GHz, 802.11 b/g/n + 5GHz, 802.11 a/n/ac - Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) - Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) - Support Recording (Through Server) - Action URL/Active URI - UaCSTA |
| Call Functions | - Call out / Answer / Reject - Mute / Unmute (Microphone) - Call Hold / Resume l Call Waiting - Intercom - Caller ID Display - Speed Dial - Anonymous Call (Hide Caller ID) - Call Forward(Always/Busy/No Answer) - Call Transfer (Attended/Unattended) - Call Parking/Pick-up (Depending on server) - Redial - Do-Not-Disturb - Auto-Answering - Voice Message (with server) - 6-way Conference - Hot Line - Hot desking |
| Audio | - HD Voice Microphone/Speaker - Wideband ADC/DAC 16KHz Sampling - Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC - Wideband Codec: G.722, Opus - Full-duplex Acoustic Echo Canceller (AEC) - Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE)/ Noise Reduction (NR)/ Automatic Gain Control (AGC) - Packet Loss Concealment (PLC) - Dynamic Adaptive Jitter Buffer - DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO) - VQM voice quality monitoring |
| Network | - Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass l IP Mode: IPv4/IPv6 - IP Configuration: Static IP / DHCP / PPPoE - Wi-Fi Encryption:WPA /WPA2-PSK /802.X EAP - Network Access Control: 802.1x l VPN: L2TP / OpenVPN - VLAN - LLDP - QoS - RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Protocols | - SIP2.0 over UDP/TCP/TLS - RTP/RTCP/SRTP - STUN - DHCP - IPV6 - LLDP - PPPoE - 802.1x l L2TP - OpenVPN - SNTP - FTP/TFTP - HTTP/HTTPS - TR-069 - AES128 & AES256 |
| Deployment & Management | - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 - Web Management Portal - Web-based Packet Dump - Configuration Export / Import - Phonebook Import/Export - Firmware Upgrade - Syslog |
| Physical Specifications | - LCD: 128x48 pixel graphical LCD with backlight - Keypad: 33 keys, including + 4 Soft-keys + 9 Function keys (Hold/Transfer/Voicemessage/Conference/Phonebook/MWI/Headset/Redial/Hands-free) + 4 Navigation keys + 1 OK key + 12 Standard Phone Digits keys + 3 Volume Control keys (Up/Down/Mute (Microphone)) - Handset (RJ9) x1 - Standard RJ9 Handset Wire x1 - 1.5M CAT.5E Ethernet Cable x1 - Desktop stand x1 - Status Indicator Light x1 (Red) - RJ9 Port x2: Handset x1, Headset x1 - RJ45 Port x2: Network x1, PC x1 (Bridged to Network) - Security Slot x1 - DC Power Input: 5V/ 1A - Power Consumption(Adapter): 1.21~2.38W - Power Consumption(PoE): 2.11~3.47W - Working Temperature: 0~45℃ - Working Humidity: 10~95% |
- Bảo hành: 24 tháng.
