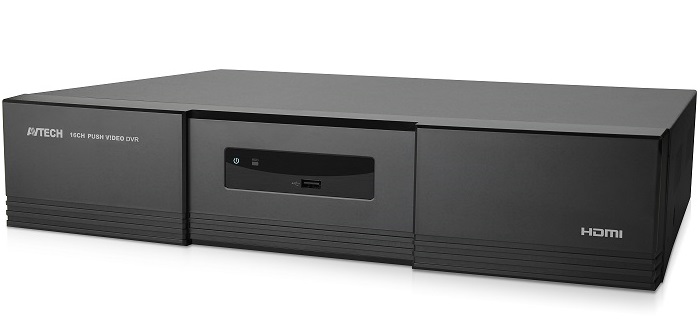

Đầu ghi hình Pentabrid 16 kênh AVTECH AVZ4017AV
- Đầu ghi hình 16 kênh TVI/ CVI/ Analog HD/ 960H/ IP (12 kênh).
- Chuẩn nén: H.265.
- Tương thích với tín hiệu ngõ ra: BNC, VGA, HDMI1 (4K2K).
- Playback: 16 kênh.
- Hỗ trợ 4 khe SATA HDD (dung lượng 16TB mỗi ổ).
- Cổng Audio Input: 4 (built in) + 12 (external)
- Hỗ trợ xem qua mạng bằng: IE, Firefox, Safari,…CMS Free.
- Backup: USB3.0 Flash drive.
- Chức năng đặc biệt: Push video 9CH, Eazy Networking.
- Phần mềm trên điện thoại: EagleEyes.
- Hỗ trợ Cloud và tên miền miễn phí.
Đặc tính kỹ thuật
| Model | AVZ4017AV | |
| Video | ||
| Video System | NTSC / PAL (auto detection) | |
| Video Compression Format | H.265 | |
| Video Signal | IP / TVI / CVI / Analog HD / 960H | |
| Video Input | 16 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 12 channels | |
| Video Input Interface | Analog Mode | Composite video signal 1 Vp-p 75Ω BNC |
| IP Mode | Ethernet, 10/100 Base-T | |
| Video Output | BNC | YES (Spot Monitor supported) |
| VGA | YES (Spot Monitor supported) | |
| HDMI | YES (4K2K display) | |
| Video Resolution | Analog Mode | 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF |
| IP Mode | 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 | |
| Record & Backup | ||
| Max. Recording Rate | Analog Mode | Up to 96 IPS @ 5MP |
| Up to 128 IPS @ 4MP | ||
| Up to 240 IPS @ FHD (1080P) | ||
| IP Mode (12 channels) | UP to 180 IPS @ 2592 x 1944 (5MP) | |
| UP to 288 IPS @ 2048 x 1536 (3MP) | ||
| UP to 360 IPS @ 1920 x 1080 | ||
| Recording Mode | Manual / Timer / Motion / Alarm / Remote | |
| Playback Channel | 16CH | |
| Quick Search | Time / Motion / Alarm search mode | |
| Backup Device | USB 2.0 drive / Network | |
| Regular Backup | Yes | |
| Audio | ||
| Audio Input | 4 (built-in) + 12 (external) | |
| Audio Output | 1 (Mono) | |
| External I/O | ||
| RS485 | Yes | |
| Alarm Input | 8 | |
| Alarm Output | 1 | |
| Network | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS | |
| General | ||
| Hard Disk Storage | 16TB SATA HDD x 4 | |
| SATA Interface | Yes | |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL | |
| USB Mouse Control | Yes | |
| Motion Detection Area | 16 × 12 grids per channel | |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection | |
| Event Notification | Push Video / Push Status / FTP / E-Mail | |
| Event Pop-up & Preview | Yes | |
| Scenario Setup | Yes | |
| Picture Zoom | 2X digital zoom | |
| PTZ Control | Yes | |
| Key Lock (Password Protection) | Yes | |
| User Level | 4 user levels for different access privilege | |
| Video Loss Detection | Yes | |
| Camera Title | Supports up to 25 letters | |
| Video Adjustable | Hue / Saturation / Contrast / Brightness | |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY | |
| Daylight Saving | Yes | |
| Power Source (±10%) | 12V / 6A | |
| Operating Temperature | 10ºC ~ 40ºC (50ºF ~104ºF) | |
| Operating Humidity | 10% ~ 85% | |
| Dimensions | 432 × 90 × 326 mm | |
| Weight | 2.6kg | |
- Bảo hành: 18 tháng.
