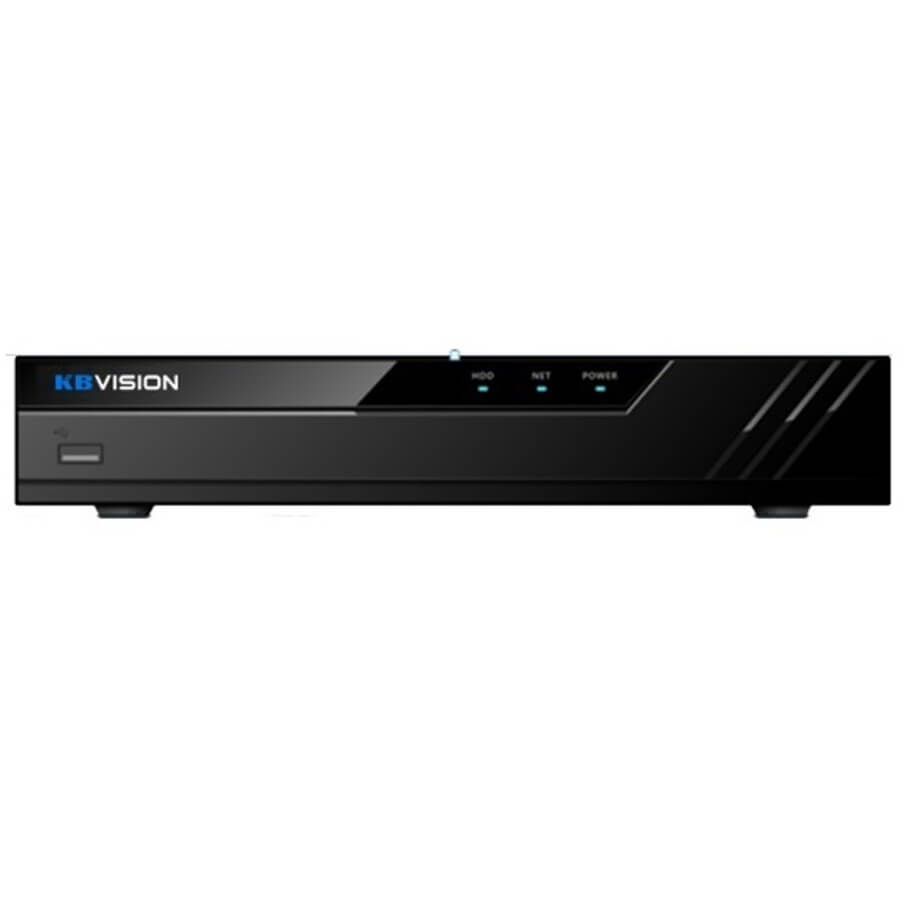

Đầu ghi hình camera IP 8 kênh KBVISION KX-A8128N2-VN
- Đầu ghi hình NVR 8 kênh.
- Hỗ trợ 8 kênh ngõ vào IP, băng thông tối đa 80Mbps.
- Khả năng giải mã: 1ch 8MP (30fps)/1ch 5MP (30fps)/2ch 4MP (30fps)/2ch 3MP (30fps)/4ch 1080p (30fps)/8ch 720p (30fps).
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Tương thích với tín hiệu ngõ ra: VGA/HDMI.
- Xem lại: 8 kênh đồng thời.
- Hỗ trợ 1 ổ cứng SATA dung lượng 8TB.
- Hỗ trợ Cloud, QR Code: Dễ dàng cài đặt, quan sát qua phần mềm trên điện thoại.
- Cổng kết nối: RJ45 10/100Mbps, 2USB 2.0, 1 audio in/1 audio out (đàm thoại).
- Hỗ trợ tên miền miễn phí KBVISION.TV trọn đời sản phẩm.
- Hỗ trợ chuẩn Onvif 2.4, kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek, ....
Đặc tính kỹ thuật
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Video | |
| Access Channel | 8 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 8M/5M/4M/3M/1080P/720P/D1/CIF |
| Decoding Capability | 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or 2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4–ch@1080P (30FPS) or 8–ch@720P (30FPS) |
| Video Output | 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution 1080P |
| Multi-screen Display | 1/4/8/9 |
| Third Party Camera Access | Onvif, RTSP |
| Compression | |
| Video | H.264/.H265/Smart H.264+/Smart H.265+ |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P |
| Mobile Phone Access | Android, iOS (KBView, KBView Plus) |
| Interoperability | ONVIF (profile T/profile S/profile G), CGI, SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 8 channels playback |
| Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
| Anomaly Alarm | Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
| Alarm Linkage | Video recording, snapshot, log, preset, tour |
| External Port | |
| HDD | 1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| Network | 1 RJ–45 port (10/100 Mbps) |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | DC12V, 1.5A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD) |
| Net Weight | 0.81 kg (1.79 lb) |
| Product Dimensions | 260×225×47.6 mm (W × L × H) |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Installation | Desktop mounting |
- Xuất xứ: Việt Nam.
- Thương hiệu KBVISION của Mỹ.
- Bảo hành: 24 tháng.
