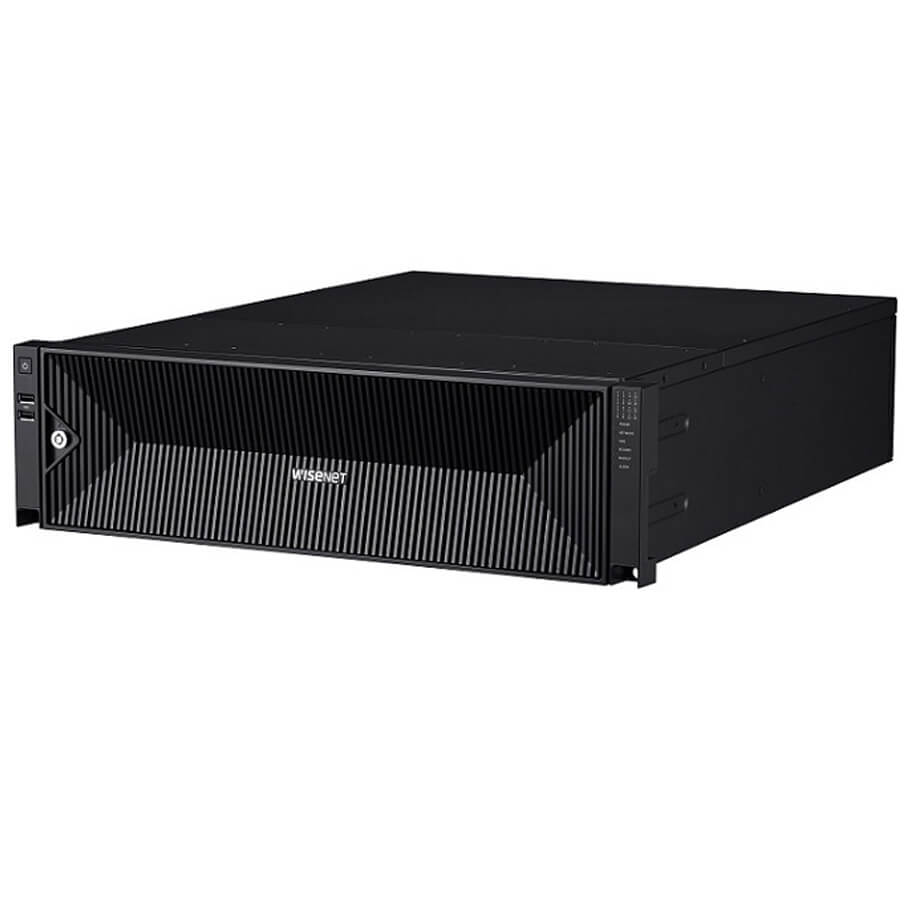

Đầu ghi hình camera IP 64 kênh Hanwha Vision XRN-6410B4
- Up to 64CH, 32MP Resolution
- Max. 400Mbps network camera recording
- HDMI out
- User friendly UI / UX
- AI search support when working with Wisenet AI camera
- Dynamic Event support
o New event function of cameras is available without software update
- Bookmark management (Up to 100 set)
- H.265, H.264, MJPEG compression support
- SATA 16ea (Up to 160TB)
- RAID 5/6 support
Đặc tính kỹ thuật
| Display | ||
| Network camera | Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | RAID Mode: Max. 64Mbps(64CH simultaneously) |
| Non-RAID Mode : Max. 32Mbps | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size: 8 HDDs x 2 Array) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel (Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 64 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI (SUNAPI) for integration to 3'rd party VMS |
|
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) | |
| Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | ||
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P (QR code) | |
| Interface | ||
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1: 3840x2160 30Hz HDMI2: 1920x1080 60Hz |
|
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS) | |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 13.4Kg(29.6 lb, HDD not included) | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Compatible for Wisenet AI Camera |
- Bảo hành: 24 tháng.
