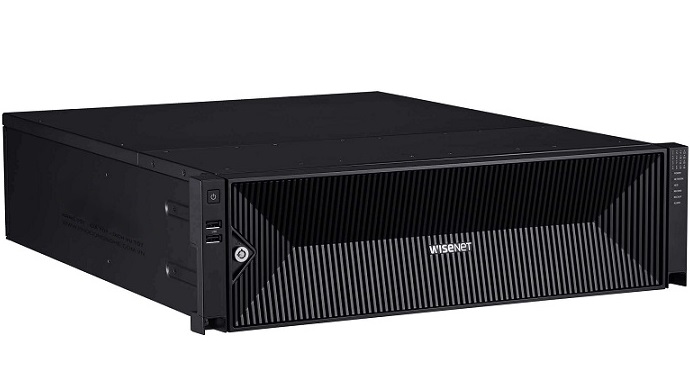

Đầu ghi hình camera IP 64 kênh Hanwha Techwin WISENET PRN-6410DB4
- Wisenet PRN-6410DB4 là dòng đầu ghi hình camera IP chất lượng cao, công nghệ AI thông minh cùng với khả năng kết nối camera độ phân giải rất cao lên đến 8K (32MP).
Features
- Up to 8K (32MP) Resolution
- AI search (BestShot, Attribute)
- Object detection and classification (Person, Face, Vehicle)
- SATA 16ea (Up to 160TB)
- Easy Channel/Event/Alarm configuration
- Video preview support
- Dynamic Event support
- Bookmark management (Up to 100 set)
- Simple connection with mobile phone through QR code
- Dual SMPS
Specifications
| Display | ||
| Network camera | Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Resolution | 32M (15fps, H.265 Only), 12M (30fps, H.265 Only), 8.3M (120fps), 1080p (480fps), 720P (960fps), D1(1920fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 64Mbps (64CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous Playback | Max. 112CH (Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time (Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 16ea (Max. 160TB, Non-RAID mode), Hot swap | |
| External | iSCSI storage | |
| RAID | RAID-5/6 (Array Size: 8 HDD x 2 Array) | |
| Backup | File backup | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 64 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search (3), Live Unicast(10), Multicast (20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware | |
| Interface | ||
| HDMI | 2 | |
| Audio | Out 1 | |
| Ethernet | 3* RJ-45 (LAN/WAN, 1Gbps) | |
| Alarm | 8 In, 4 Out | |
| USB | 4 (Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Intelligent Analysis | ||
| Object Attribute | Person, Face(with Wisenet AI camera), Vehicle, Lisence plate | |
| Face Recognition | Support 100,000 Library (with Wisenet AI Camera) | |
| LPR | English, Number (Wisenet AI, P/X Camera) | |
| General | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz (Dual SMPS) | |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) | |
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 14.3kg | |
- Bảo hành: 24 tháng.
