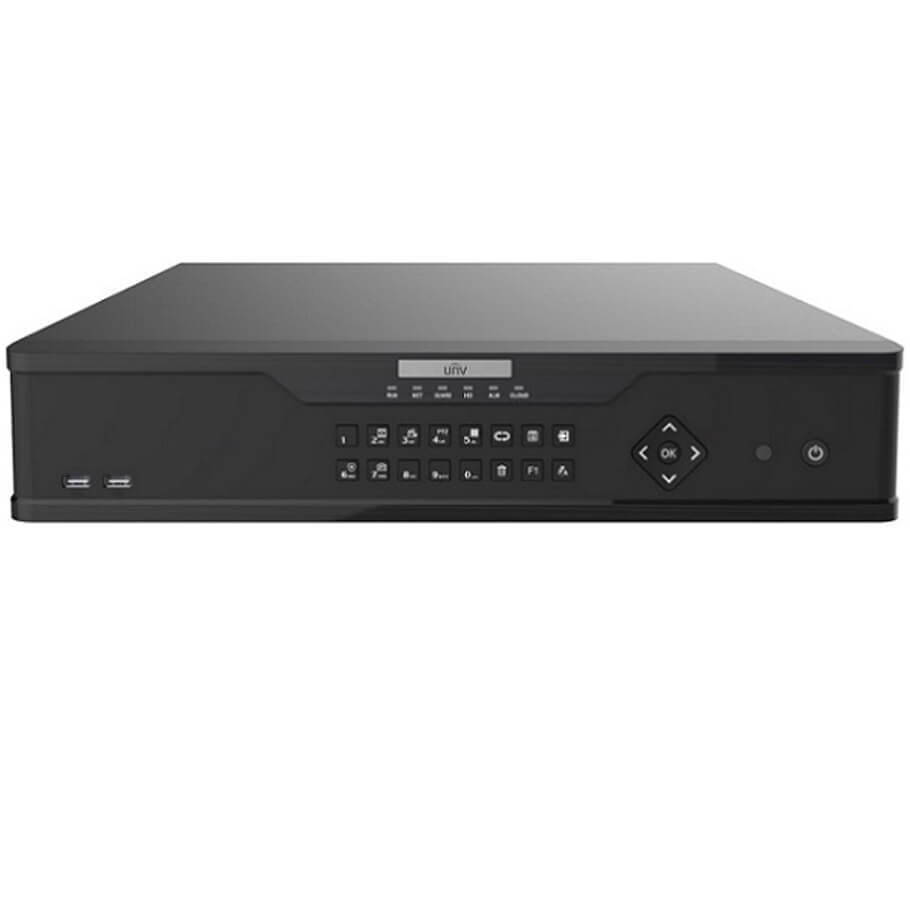

Đầu ghi hình camera IP 32 kênh UNV NVR308-32X
- Đầu ghi hình camera 32 kênh.
- Độ phân giải ghi hình: 12 Megapixel.
- Tương thích với tín hiệu ngõ ra: HDMI1, VGA, HDMI2.
- Chuẩn nén hình ảnh: Ultra H.265/H.265/H.264.
- Tốc độ băng thông đầu vào: 384Mbps.
- Tốc độ băng thông đầu ra: 384Mbps.
- Hỗ trợ xem lại đồng thời 32 kênh.
- Hỗ trợ kết nối camera IP của bên thứ 3 với chuẩn ONVif.
- Hỗ trợ ngõ vào/ra Audio: 1/1.
- Hỗ trợ ngõ vào/ra Alarm: 16/4.
- Cổng kết nối: 2 cổng RJ45 10/100/1000M.
- Hỗ trợ 8 ổ cứng SATA với dung lượng lên tới 10TB mỗi ổ.
- Hỗ trợ 1 ổ ngoài eSATA.
- Nguồn điện: 100 ~ 240 VAC.
- Kích thước: 442 ×4 26 × 89 mm.
- Trọng lượng: ≤5.7kg.
Đặc tính kỹ thuật
| Video/Audio Input | |
| IP Video Input | 32-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Liveview display | VGA/HDMI1/HDMI2: 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 32-ch snapshot, up to 4K resolution |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | up to 10TB for each HDD |
| eSATA | 1 eSATA interface |
| Disk Group | Support |
| Disk Array | |
| Array Type | RAID 0, 1, 5, 6, 10 |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control |
| VCA Search | Behavior Search, Vehicle Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), by Camera | 16-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| General | |
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 442mm ×426mm× 89mm |
| Weight (without HDD) | ≤ 5.7Kg |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
- Bảo hành: 02 năm.
