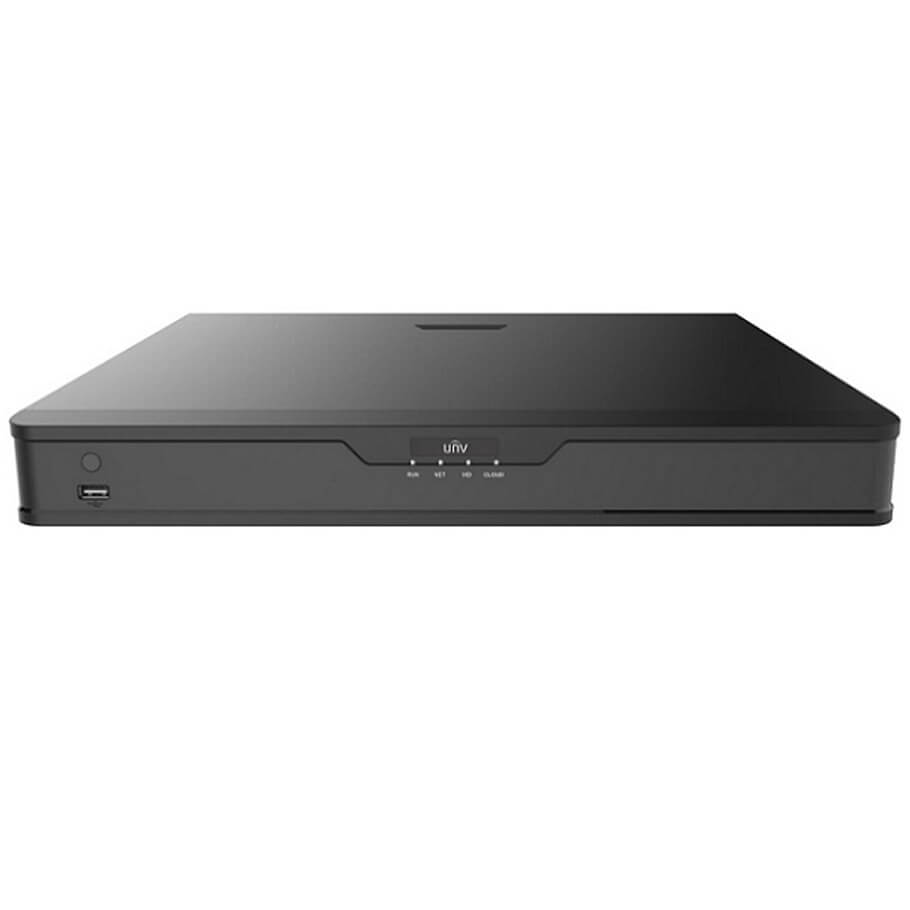

Đầu ghi hình camera IP 16 kênh UNV NVR302-16S2-P16
- Hỗ trợ các định dạng video Ultra265/H.265/H.264.
- 16 cổng đầu vào.
- Cắm và chạy với 16 cổng PoE mạng độc lập.
- Hỗ trợ các camera chủ đạo tuân thủ chuẩn ONVIF (Profile S, Profile G, Profile T) và giao thức RTSP.
- Hỗ trợ xuất tín hiệu đồng thời qua HDMI và VGA.
- Ghi hình với độ phân giải lên đến 8 Megapixels.
- Hỗ trợ 2 ổ cứng SATA, mỗi ổ tối đa 10TB.
- Công nghệ ANR để nâng cao độ tin cậy lưu trữ khi mất kết nối mạng.
- Hỗ trợ nâng cấp qua đám mây.
Thông số kỹ thuật
| Model | NVR302-16S2-P16 |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE (IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge (version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920x1080@60, 1920x1080@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080@60, 1920x1080@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Liveview display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot |
4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10TB for each disk |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking |
| VCA Search | Behavior Search |
| People counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP by Camera | 8-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 130W in total |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm ×315mm × 53mm |
| Weight (without HDD) | ≤2.6kg |
- Bảo hành: 24 tháng.
