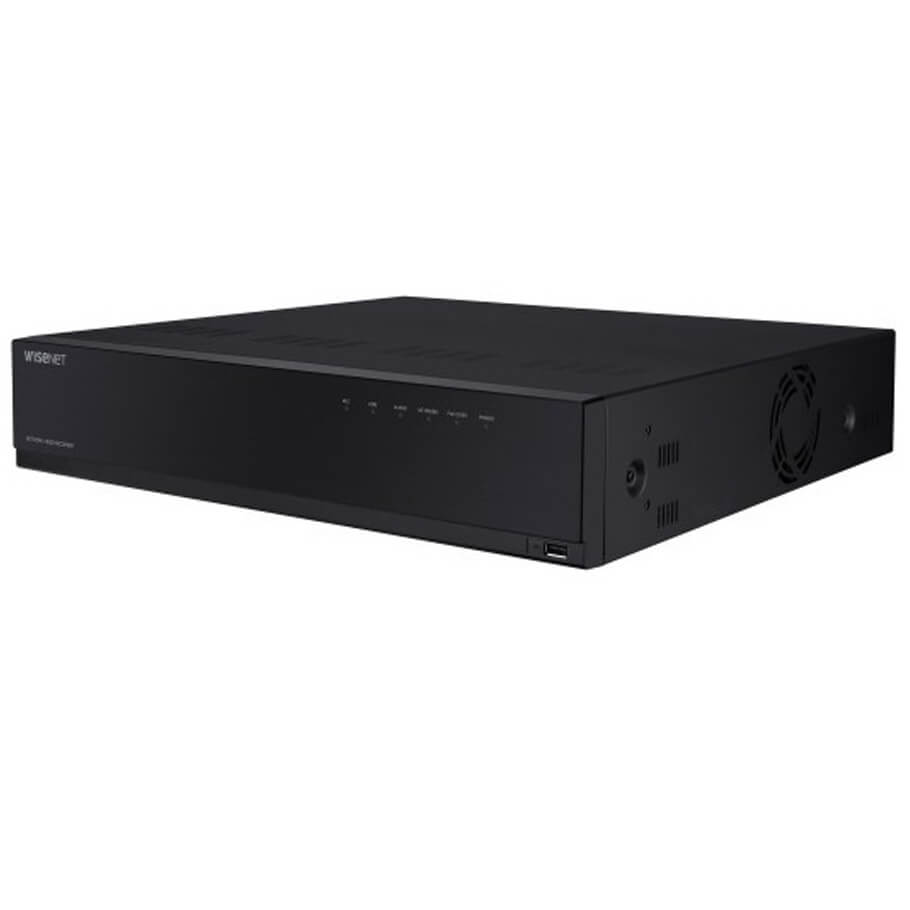

Đầu ghi hình camera IP 16 kênh Hanwha Vision WRN-1610S
- Hỗ trợ 16 kênh camera IP đầu vào.
- Hỗ trợ 1x HDMI, 1x VGA dual monitor.
- Hệ điều hành: Embedded Linux Ubuntu.
- Băng thông ghi hình: 150Mbps.
- Giao diện: 2 x RJ-45, Gigabit Ethernet, 16 x PoE+ 100Mbps.
- Kích thước (W x H x D): 440 x 89.8 x 426.3 mm.
- Trọng lượng: 5.2kg.
Đặc tính kỹ thuật
| DISPLAY | |
| Video | Inputs: Up to 16CH |
| Live | Local Display: 1x HDMI, 1x VGA dual monitor |
| PERFORMANCE | |
| Operating System | Embedded: Linux Ubuntu |
| Video Management Software | Embedded: Wisenet WAVE |
| Recording | Recording Bandwidth: Up to 150Mbps |
| Storage | Built-in OS: 1x eMMC SSD (embedded) Internal HDD: 4 SATA (Max. 24TB) |
| Sensor | Input/Output: 4/2 |
| NETWORK | |
| Interface | 2 x RJ-45, Gigabit Ethernet, 16 x PoE+ 100Mbps |
| FUNCTIONS | |
| System Control | Mouse, Keyboard |
| INDICATOR/INTERFACE | |
| Front | Indicator: Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea Record status LED 1ea, PoE over Budget LED 1ea, Network action LED 1ea |
| USB: 3ea (Front x2, Rear x1) | |
| Connections | Audio: Stereo Jack (Left-Right) HDMI / VGA: HDMI : Up to 4K (3840 x 2160), VGA : Max. 1080p Ethernet: 16ea (PoE (PoE+), 100Mbps), 2ea (LAN/WAN, 1Gbps) |
| GENERAL | |
| Environmental | Operating Temperature: +0°C to +40°C (+32°F to +104°F) |
| Operating Humidity: 20% ~ 85% RH | |
| Electrical | Input Voltage /Current: 100 ~ 240V AC |
| Power Consumption: Max. 320W (4 HDDs, PoE(PoE+) on), Max. 63W (4 HDDs, PoE(PoE+) off) |
|
| PoE Budget: Each Max. 30 W (0.55 A), Total Max. 200 W (3.7 A) |
|
| Form Factor: 2U rack mount chassis | |
| Mechanical | Colour /Material: Black / Metal |
| Dimension (WxHxD): 440 x 89.8 x 426.3 mm | |
| Weight: 5.2 kg (without HDDs) | |
- Bảo hành: 24 tháng.
