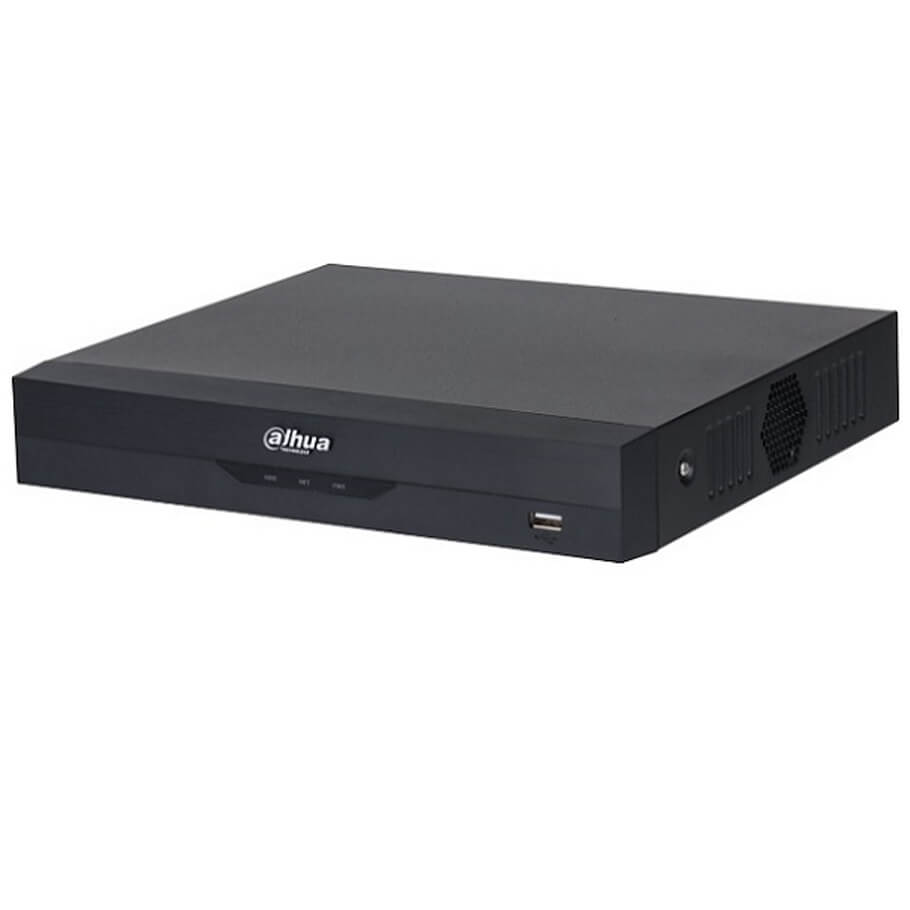

Đầu ghi hình camera IP 16 kênh DAHUA DHI-NVR2116HS-I2
- Đầu ghi hình 16 kênh camera IP.
- Chuẩn nén hình ảnh: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG.
- Tương thích với tín hiệu ngõ ra: 1 × VGA, 1 × HDMI.
- Hỗ trợ 1 ổ cứng SATA với dung lượng 10TB.
- Hỗ trợ 2 cổng USB 2.0, 1 cổng RJ45 (10/100Mbps).
- Hỗ trợ tối đa 1 kênh bảo vệ vành đai (AI by NVR) hoặc 1 kênh phát hiện và nhận diện khuôn mặt (AI by NVR) hoặc 4 kênh SMD Plus (AI by NVR).
- Hỗ trợ kết nối nhiều thương hiệu camera với chuẩn tương thích Onvif 2.4.
- Nguồn điện: 12VDC, 1.5A.
- Nhiệt độ hoạt động: -10°C to +55°C.
Đặc tính kỹ thuật
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI | |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Device | Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection | |
| Perimeter Performance AI by Device(Number of Channels) | 1 |
| Perimeter Performance of AI by Camera (Number of Channels) | 4 |
| Face Detection | |
| Face Attributes | 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Detection Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 12 face images/second) |
| Face Detection Performance of AI by Camera (Number of Channels) | 5 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Face Recognition Performance of AI by Device (1080P) (Number of Channels) | 1 (up to 4 face images/second |
| Face Recognition Performance of AI by Camera (Number of Channels) | 5 |
| SMD Plus | |
| SMD Plus by Device | 4 |
| SMD Plus by Camera | 6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away |
| Video | |
| Access Channel | 16 channels |
| Network Bandwidth | AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36Mbps |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4, 8, 9, 16 views |
| Third Party Camera Access | Onvif |
| Compression | |
| Video | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T; profile S; profile G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip/file); partially zom in; audio on/off |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1,000 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Weight | 0.81kg |
| Dimensions (W × L × H) | 260 mm × 232.7 mm × 47.6 mm |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10%-93% |
| Storage Humidity | 30%-85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC:47 CFR FCC Part15, SubpartB, Class A CE-EMC:EN 55032:2015, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
