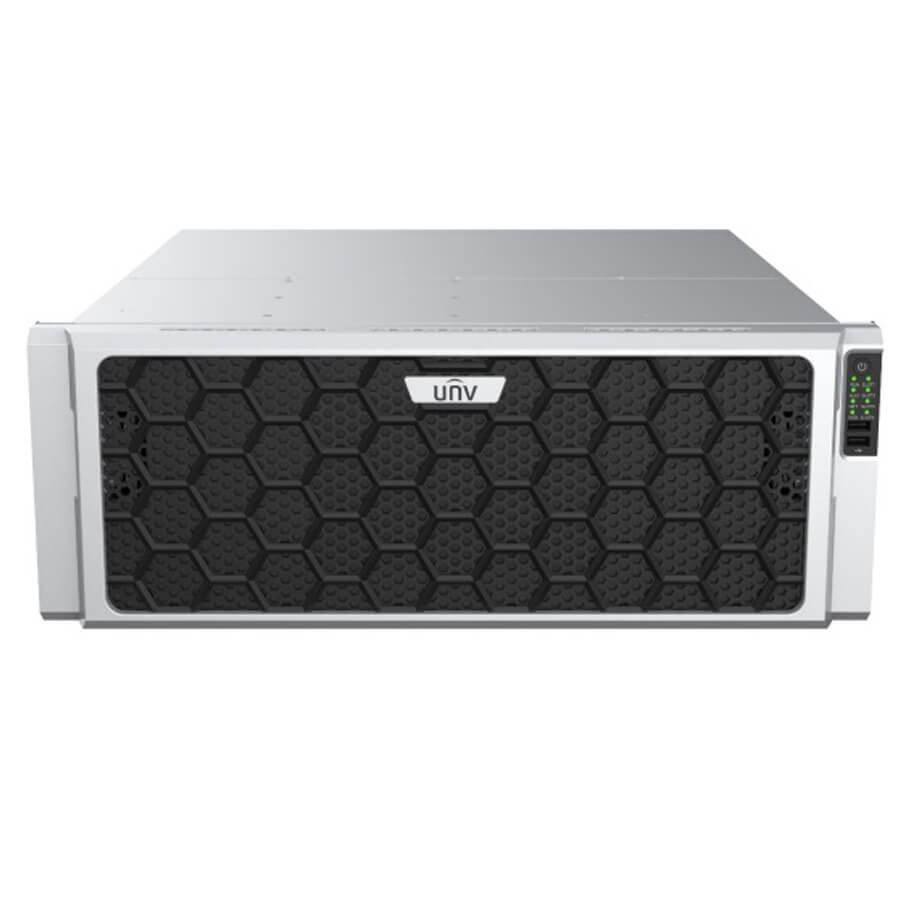

Đầu ghi hình camera IP 128 kênh UNV NVR824-128R
- Đầu ghi hình camera IP 128 kênh.
- Chuẩn nén hình ảnh: Ultra 265/H.265/H.264.
- Hỗ trợ kết nối camera IP của bên thứ 3 với chuẩn ONVIF: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T.
- Tương thích với tín hiệu ngõ ra: 2-ch HDMI độ phân giải 4K (3840x2160), 1-ch VGA.
- Độ phân giải ghi hình 12 Megapixels.
- Hỗ trợ 24 ổ cứng SATA với dung lượng tối đa mỗi ổ 16TB.
- Hỗ trợ 24-ch báo động đầu vào và 8-ch báo động đầu ra.
- Hỗ trợ 2 miniSAS Interfaces.
- Hỗ trợ công nghệ ARN nâng cao độ tin cậy lưu trữ khi bị ngắt kết nối mạng.
- Hỗ trợ cloud upgrade, N+1 Hot spare.
Đặc tính kỹ thuật
| Video/Audio Input | |
| IP Video Input | 128-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 768Mbps |
| Outgoing Bandwidth | 768Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 |
| Hard Disk | |
| SATA | 24 SATA interfaces |
| Capacity | Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Extension board | 4 |
| miniSAS | 2 miniSAS ports |
| eSATA | 1 |
| Smart | |
| VCA Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera | Total 64-ch |
| Disk Array | |
| Array Type | RAID 0/1/5/6/10/50/60 |
| External Interface | |
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Power Output | 12V |
| General | |
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 70 W (without HDD) |
| Working Environment | -10°C ~ + 50°C (+14°F ~ +122°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions | 533mm ×484.6mm × 175.5mm |
| Weight (without HDD) | ≤ 12.5 Kg |
- Bảo hành: 2 năm.
