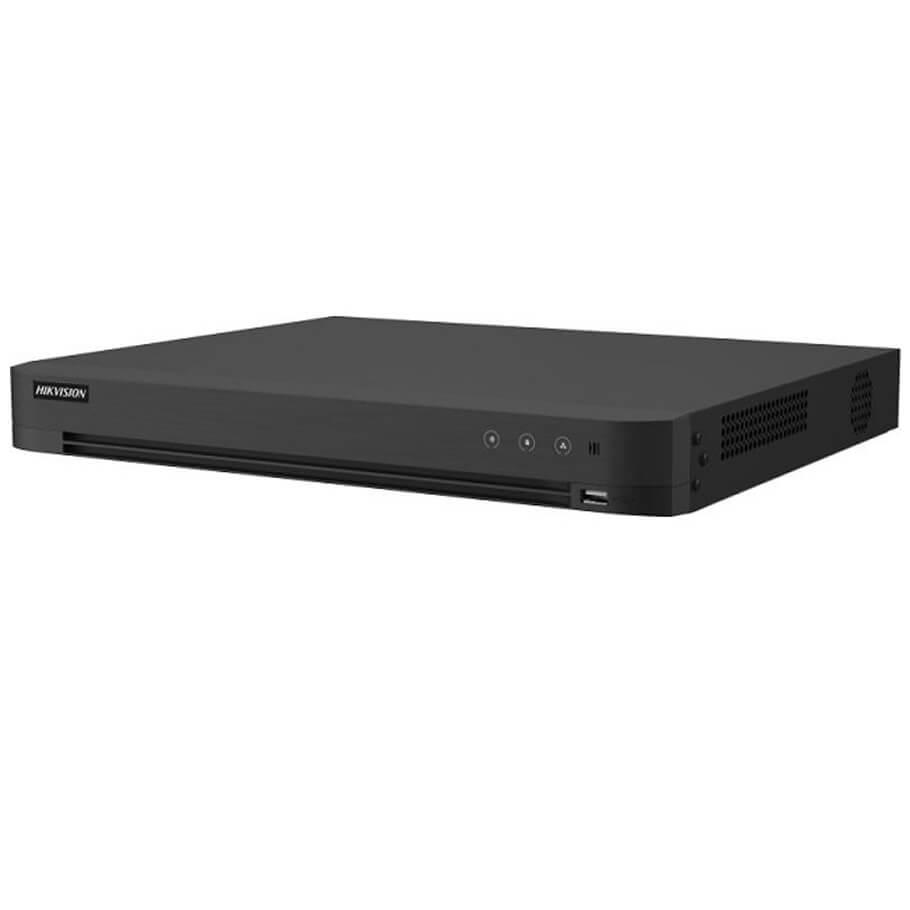

Đầu ghi hình 8 kênh Turbo AcuSense HIKVISION iDS-7208HQHI-M2/XT
- Đầu ghi hình 8 kênh Turbo ACUSENSE hỗ trợ camera HDTVI 3K Lite/ 5Mp Lite.
- Hỗ trợ 8 ngõ vào video, chuẩn nén H.265 Pro+/H.265 Pro/H.265/ H.264+, H.264.
- Hỗ trợ camera HDTVI, HDCVI, AHD, Analog.
- Hỗ trợ truyền âm thanh qua cáp đồng trục.
- Hỗ trợ camera Analog đàm thoại 2 chiều.
- Có thể gán thêm 4 camera IP 4MP (khi chưa tắt các kênh analog). Gán tối đa 12 camera IP 4MP khi tắt tất cả các kênh analog.
- Bao gồm 02 cổng SATA hỗ trợ ổ cứng tối đa 10TB.
- Tương thích với tín hiệu ngõ ra: HDMI 1920x1080, VGA 1920x1080; 01 ngõ ra CVBS
- Hỗ trợ cổng 01 x RJ45 10/100Mbps.
- Hỗ trợ cổng RS485.
- Tính năng thông minh VCA.
- Hỗ trợ 2 kênh nhận diện khuôn mặt.
- Nguồn điện: 12VDC, 1.5A/2A.
Đặc tính kỹ thuật
| Facial Recognition | |
| Face Picture Comparison | Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera) |
| Face Picture Library | Up to 16 face picture libraries |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous Playback | 8-ch |
| HDTVI Input | 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| HDCVI Input | 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
| Network | |
| Remote Connection | 64 |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| SATA | 2 SATA interface, up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 2.5 A |
| Consumption | ≤ 30 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 380 × 320 × 48 mm |
| Weight | ≤ 1.78 kg |
- Bảo hành: 24 tháng.
