Đầu dò báo nhiệt cố định địa chỉ NOHMI FDLU019-D-X

Trang Chủ >> Báo cháy-Báo trộm >> Báo cháy NOHMI >> Đầu dò báo nhiệt cố định địa chỉ NOHMI FDLU019-D-X
Mã số:13603491

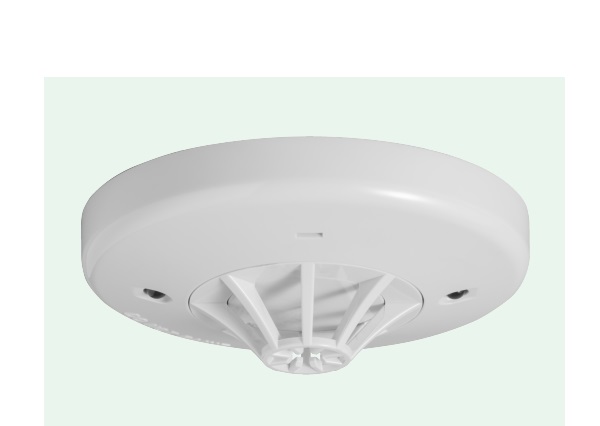

Đầu dò báo nhiệt cố định địa chỉ NOHMI FDLU019-D-X

Đầu dò báo nhiệt cố định địa chỉ NOHMI FDLU019-D-X

- The Fixed Temperature Heat Detector (FDLU019-D-X) in an Analog/ Addressable fixed temperature heat detector compatible with any fire alarm control panel of Integlex Multicrest series. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The detector and base (not included) are made of a durable plastic in an eggshell white (off white) to blend in with the ceiling.

Features

- Very Low Profile (30.7mm/1.21-inch only in height).

- 57°C to 85°C (135°F to 185°F) Heat Sensor.

- True Analog Detector.

- Ambient Temperature Listing of 0°C to 66°C (32°F to 150°F).

- Simple and Accurate Address Setting without Mechanical Switches.

- LEDs for 360° Viewing.

Đặc tính kỹ thuật

Model  FDLU019-D-X
Working voltage range 22.0 to 24.0 V
Standby current 250 μA
Alarm indicator 2 LEDs
Alarm indicator current 1.5 mA D.C
Alarm set-point range 57°C to 79°C (135°F to 174°F)
80°C to 85°C (175°F to 185°F)
Installation temperature range 0°C to 38°C (32°F to 100°F)
0°C to 66°C (32°F to 150°F)
Operating relative humidity range 0% to 93% (Non-condensing)
Start-up time Max. 1 sec.
Color Eggshell White
Weight (without base) 65g (2.29 oz)
Dimensions (without base) Height: 30.7mm (1.21 inch) Diameter: 99mm (4.0 inches)

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi
